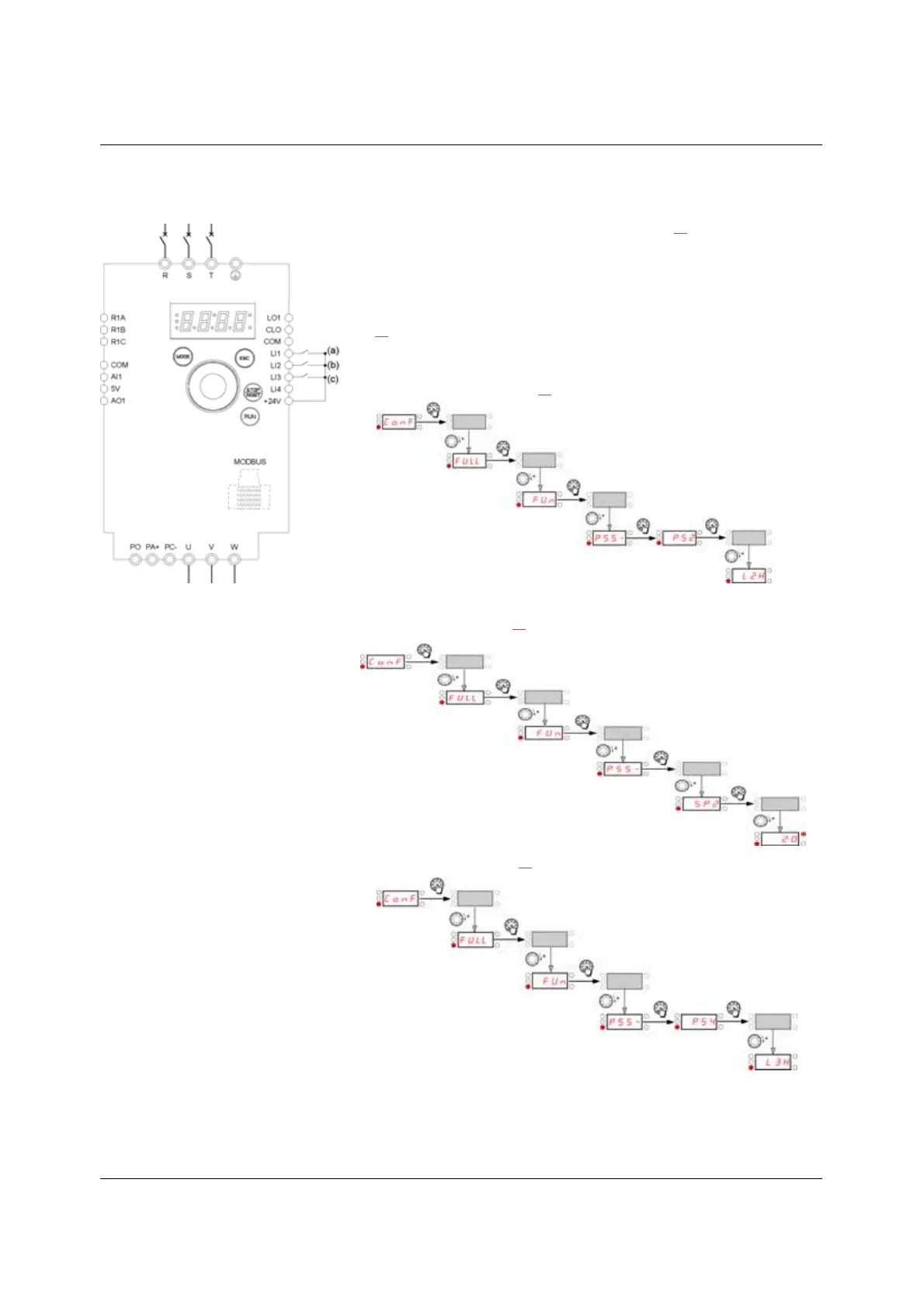

4 Preset speeds (source)
Important: Please refer to Function compatibility table page 35.
1. Connect the ground terminal to the grounding screws located below the output
terminals.
2. Connect the power terminals.
3. Connect the logic inputs.
4. Turn on the drive without giving a run command.
5. Assign factory settings to the drive, Factory / recall customer parameter set FCS page
45
set to InI.
6. Set the motor parameters (in COnF mode) only if the factory configuration of the drive
is not suitable.
7. Perform an auto-tuning.
8. Set 2 Preset speeds PS2 page 68
to L2H.
9.
(a): Run Forward
(b): 2 preset speeds (c): 4 preset speeds
Set Preset speed 2 SP2 page 68
to 20 Hz.
Set 4 Preset speeds PS4 page 68
to L3H.
