3.3 Equipment overview

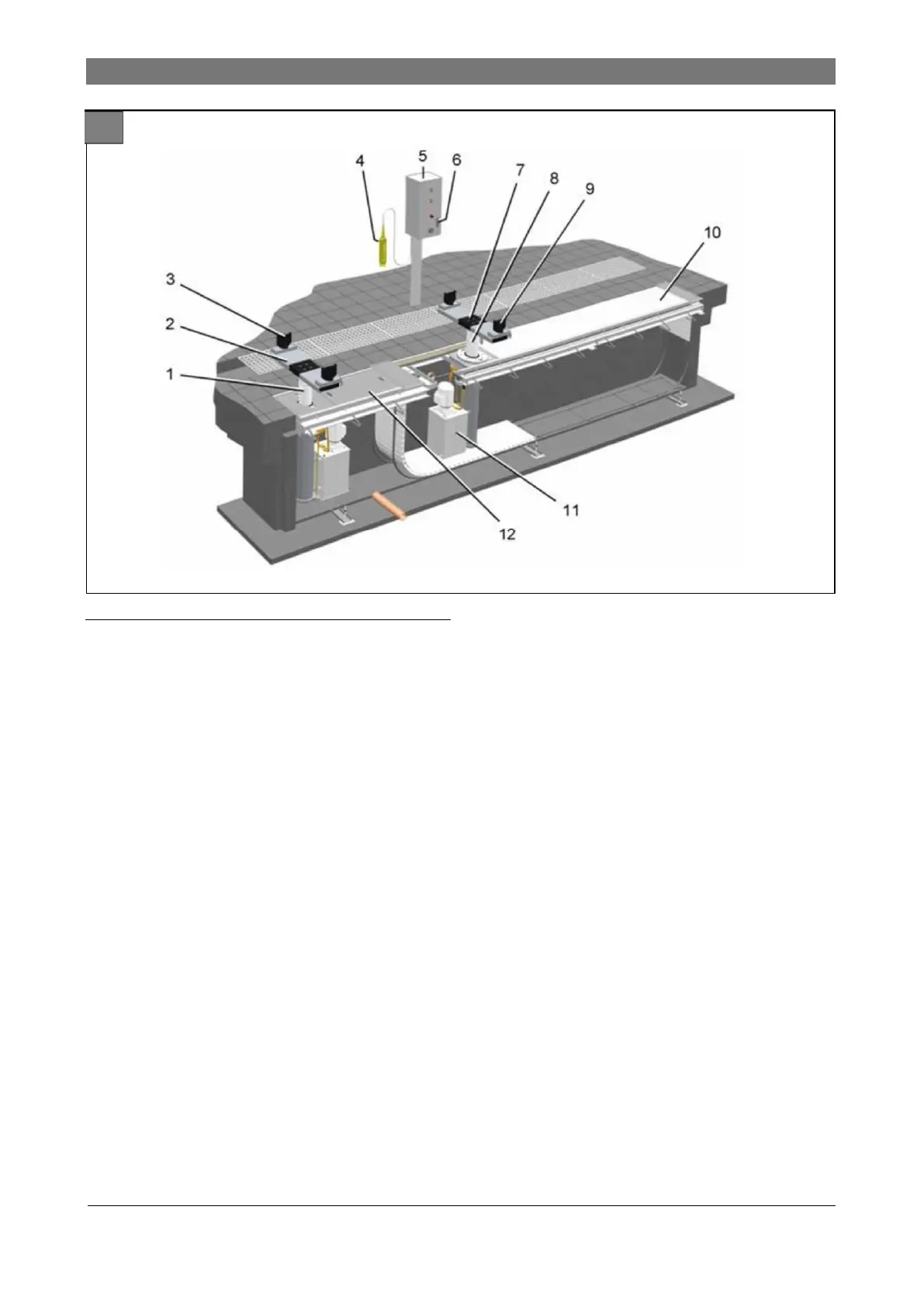

Illustration 1: Example of lift with
2 lifting cylinders
1 Lifting cylinder, fixed
2 Cross member
3 Load-bearing equipment
4 Control panel, mobile
5 Control cabinet with controls
6 Type plate
7 Cross member
8 Lifting cylinder, movable
9 Load-bearing equipment
10 Cover
11 Hydraulic unit
12 Maintenance door
