3.5 Control panel
12

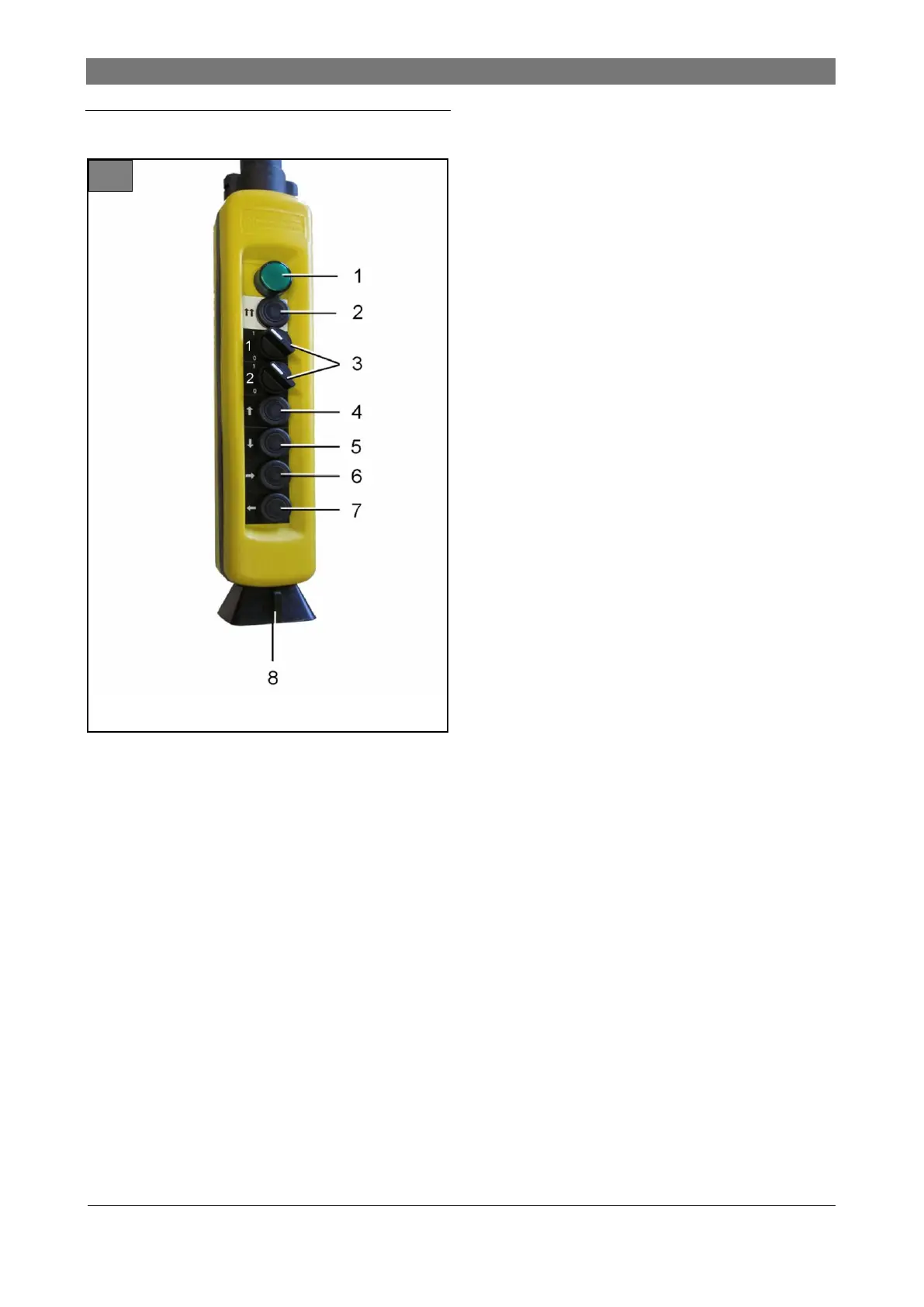

Illustration 12: Control panel
1 Mode indicator lamp
Flashes: Selected lifting cylinder loaded
Lights up: Synchronized operation activated
2 Synchronized operation On/Off push button
3 “Activate Lifting cylinder” switch
4  button
Lift
5  button
Lower
6  button
Drive forward in pit
7  button
Drive back in pit
8 Emergency stop button
