Blitz DUPLEX S2 - Page 53

PLÄNE, ERSATZTEILLISTEN
47
117127 ● 07/2011

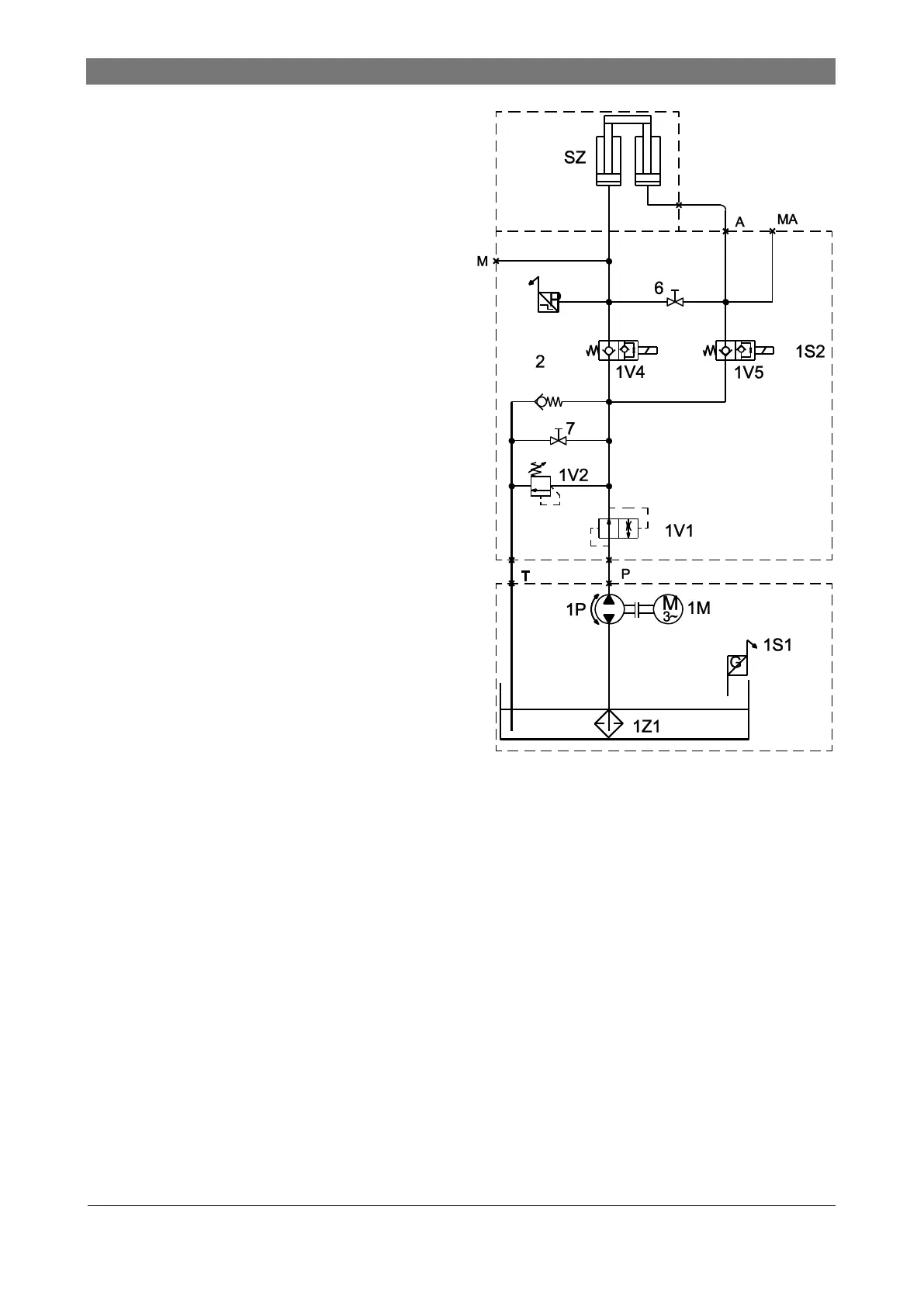

Hydraulics diagram
SZ Safety cylinder
1V1 Lowering brake valve1
1V4 Solenoid valve
1V5 Solenoid valve
1S2 Pressure sensor
1V2 Pressure relief valve
2 Suction valve
1P Geared pump
1M Electric motor 3kw
1S1 Level sensor
1Z1 Intake filter
6 Emergency relief valve
7 Emergency relief valve
M, MA G1/4"
A, P, T G1/2"
