L-927
Rev. A
11-16-09
Page 1 of 1
Lit Sheet Combi LED (BP# 53024) Light Replacement
1. Remove the light/bracket assembly by removing two nuts as shown in Fig. 1
2. Remove light from bracket
3. Place the new LED light (BP 53024) in existing bracke
t and install on existing studs.
Secure with the two nuts that were removed in step 1.
4. Wire up the new LED light. The LED light is polarity dependent and therefore it must be
wired properly according to the following direction. :
A. If the pair of wires going to the light has a red wire, plug the red wire on the tab #1
(numbering located on side of LED light) which is also marked with a red line. Then
plug the remaining wire on the negative tab # 6.
B. If the pair of wires going to the light has a black wire, plug the black wire on the
negative tab # 6 (numbering located on side of LED light). Then plug the remaining
wire on the positive tab # 1, which is the tab marked with a red line.
Note: If not wired properly the LED light will not illuminate

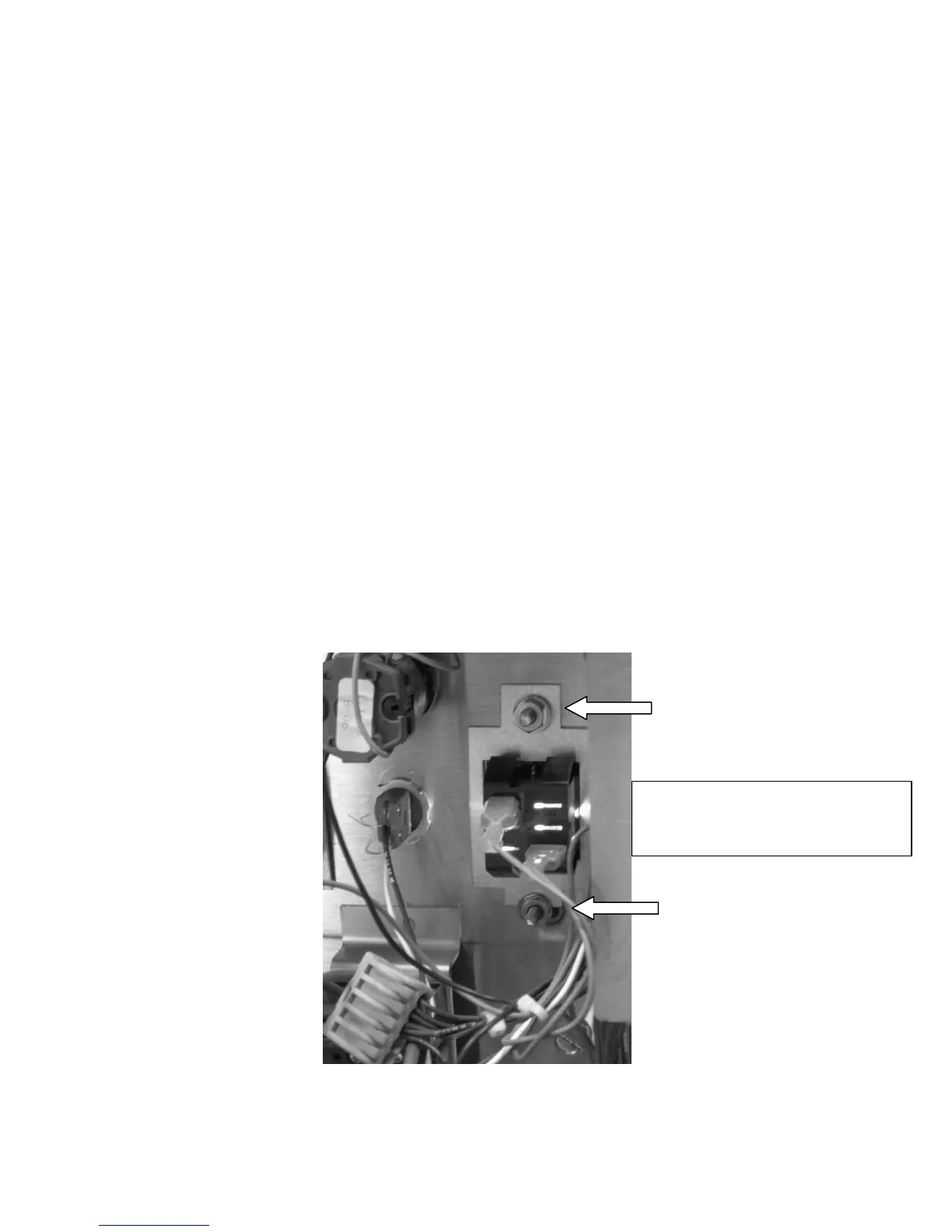

Remove two nuts to remove
light/bracket assembly
