Blodgett BCX14E - New Manual Control Operation

Blodgett Oven
Page 5
Operation

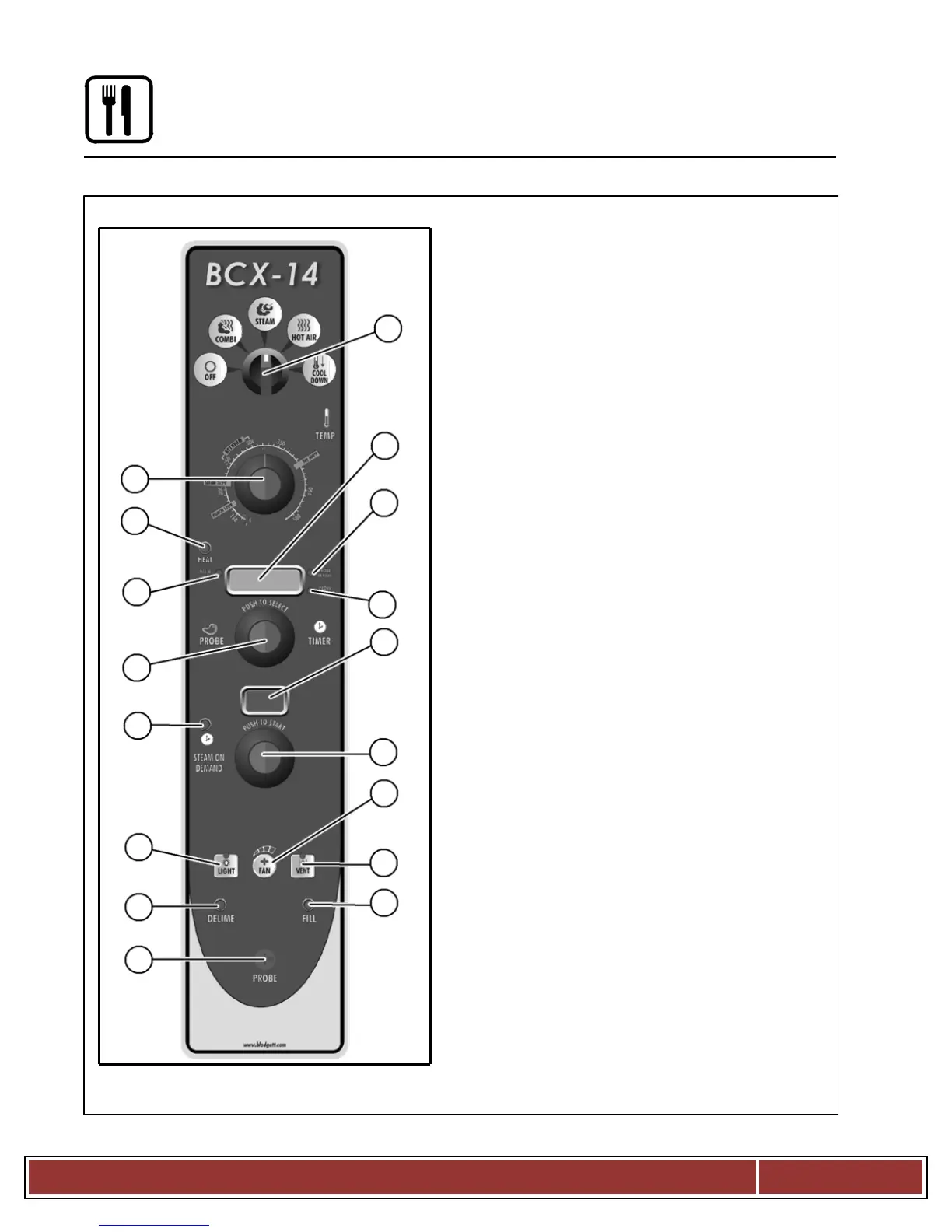

Standard Controls for Models BCX 14 and BX 14
1
2
3
6
4
5
7
9
8
10
11
13
12
14
15
16
17
CONTROLS IDENTIFICATION
1. MODE SELECTOR SWITCH - turns power to
the oven on or off. Allows selection of
Steam, Hot Air, Combi or Cool Down Modes.
2. DISPLAY - displays time and temperature
in formation.
3. TEMPERATURE DIAL - used to set
desired cooking temperature.
4. HEAT LAMP - lights when the oven is
calling for heat
5. TIMER LED - lights when the cook time is
displayed
6. PROBE ACTUAL LED - lights when the
actual probe temperature is displayed
7. PROBE SETPOINT LED - lights when the
core set point temperature is displayed
8. TIMER/PROBE KNOB - use to select and
set either cook time or probe temperature
9. STEAM ON DEMAND DISPLAY - displays
the steam on demand time
10. STEAM ON DEMAND LAMP - lights when
steam on demand is activated.
11. STEAM ON DEMAND KNOB - use to set
duration for steam on demand
12. LIGHTS KEY - press to turn the oven
lights on and off
13. FAN SPEED KEY - used to select fan speed.
14. CAVITY VENT KEY - used to open or
close vent to release steam from cavity.
15. DELIME LAMP (BCX 14 ovens only) -
Flashes when steam generator deliming
is needed. Remains steady when deliming
process is active.
16. FILL LAMP - illuminated until the steam
generator is filled with water.
NOTE: Model BX 14 ovens do not have a
fill lamp.
17. PROBE CONNECTION - used to connect
the core temperature probe to the control.
