Operation
16
Cook and Hold
1
3
5
2
4
6
7
8

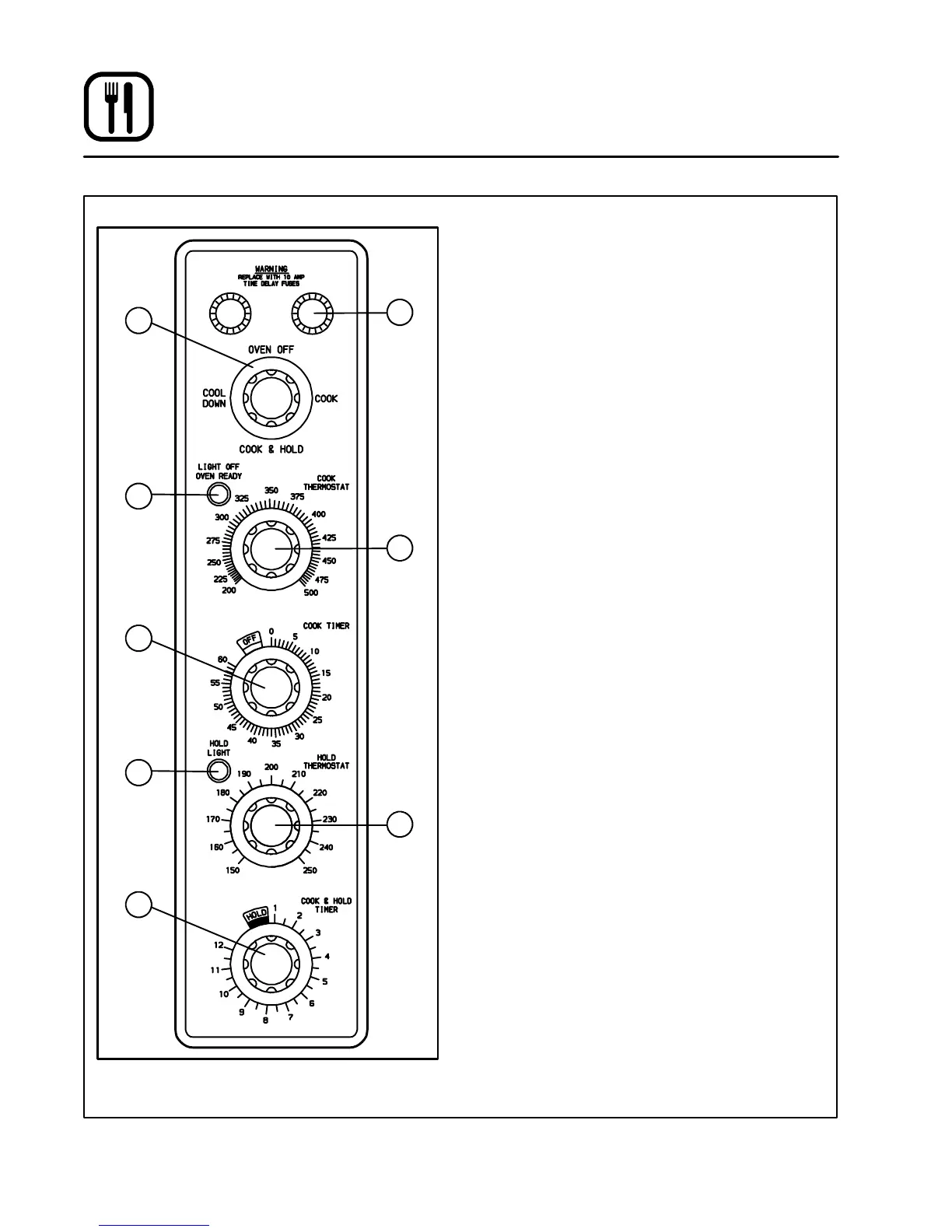

Figure 11
COMPONENT DESCRIPTION
1. SELECTOR SWITCH - controls power to the
oven and selects cool down mode.
2. PANEL MOUNT FUSE HOLDERS - provide
oven circuit protection.
3. OVEN READY LIGHT - when lit, indicates heat-
er operation. When the light goes out, the
oven has reached operating temperature.
4. COOK THERMOSTAT - controls oven temper-
ature in t he cook cycle.
5. COOK TIMER - activates an electric buzzer
that sounds when the cook time expires.
6. HOLD LIGHT - indicates the oven is in the hold
cycle.
7. HOLD THERMOSTAT - controls the oven tem-
perature w hen the oven is in the hold cycle.
8. COOK & HOLD TIMER - controls the length of
the cooking t ime from 0 to 12 hours. When the
cook time ends, oven temperature control
switches from the cook to the hold t hermostat.
