Operation
12
Solid State Manual
1
2
4
3
Figure 8

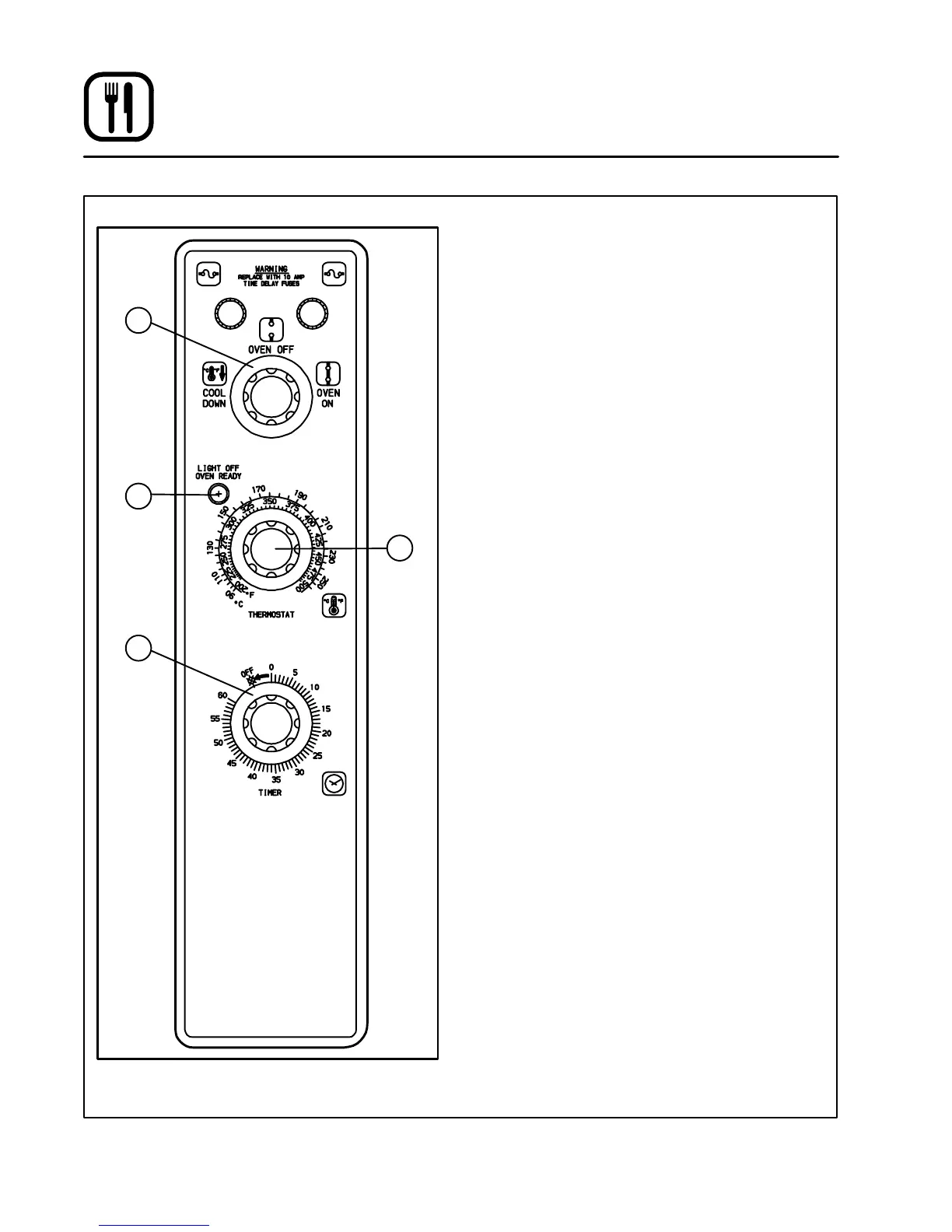

COMPONENT DESCRIPTION
1. SELECTOR SWITCH Ć controls power to the
oven and selects Cool Down mode.
2. OVEN READY LIGHT Ć when lit, indicates heatĆ
er operation. When the light goes out, the
oven has reached operating temperature.
3. SOLID STATE THERMOSTAT Ć allows either 8
preĆset temperatures to be selected in accorĆ
dance with customer requirements, or an infiĆ
nite selection of temperatures from 200Ć500_F
(95Ć260_C). (infinite control shown)
4. COOK TIMER Ć used to time the length of the
cooking operation. When the set time expires
an alarm sounds.
CONTROL OPERATION
1. Turn the SELECTOR SWITCH (1) to OVEN ON.
2. Set the COOK THERMOSTAT (3) to the deĆ
sired temperature.
3. Preheat the oven until the OVEN READY (2)
light goes out, indicating the oven has
reached operating temperature.
4. Load product into the oven. Set the COOK
TIMER (4) to the desired time.
5. When the buzzer sounds, remove the product
from the oven. Turn the timer to OFF to silence
the alarm.
6. Turn the SELECTOR SWITCH (1) to OVEN
OFF.
