Operation
SSD Solid State Digital Control
LIGHTS
BLOWER
HI
LOW
OFF
OFF
ON
COOL
DOWN
COOK
GAS ON
GAS OFF
MODE
1
4
5
9
3
2
6
7
8
12
10
11
13
14
Figure 13

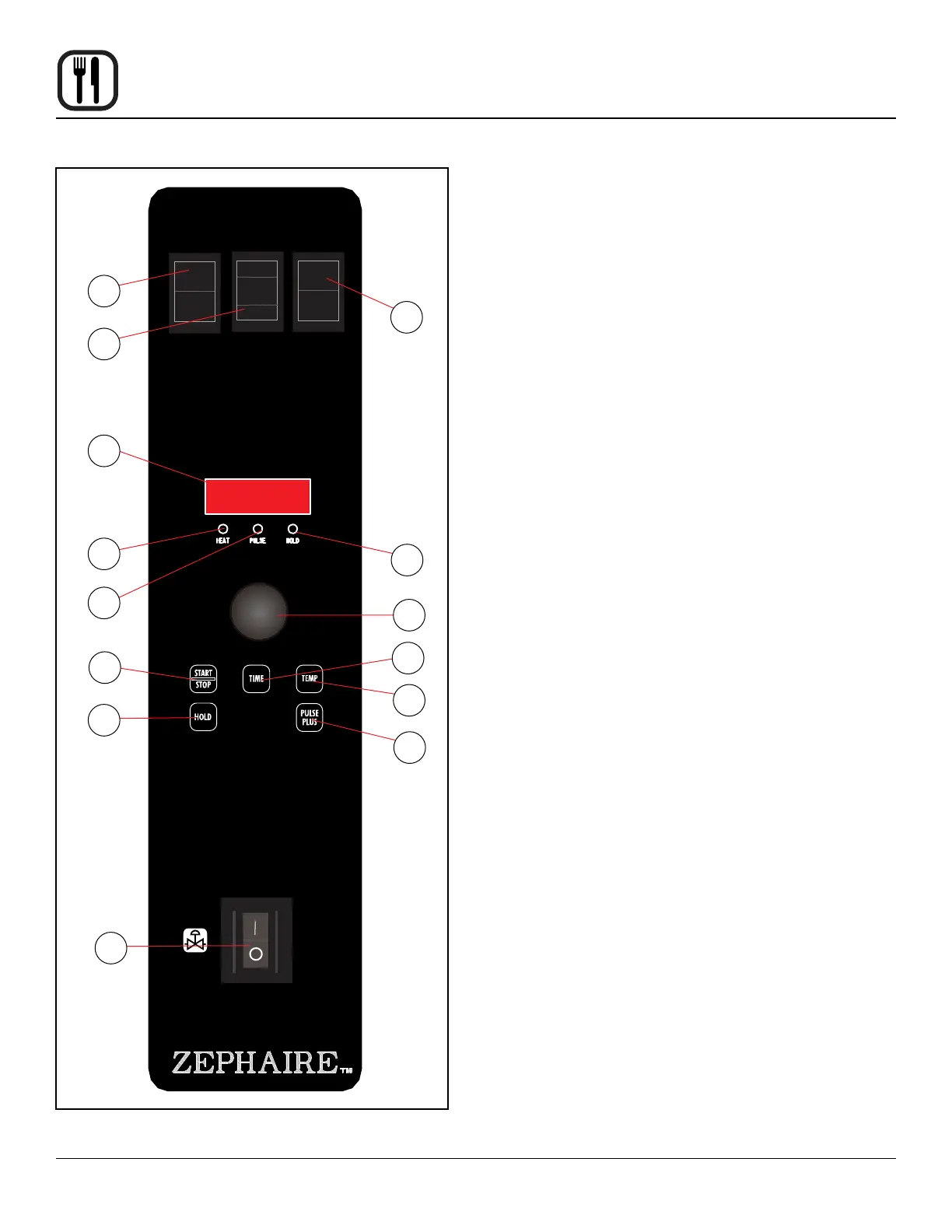

CONTROL DESCRIPTION
1. CAVITY LIGHTS ON/OFF - Operates the oven cavity
lights.
2. BLOWER ON/OFF SWITCH - Controls the operation
of the blower. If the blower switch is in the OFF posi-
tion the oven will be turned off.
3. MODE SWITCH - When the switch is in the COOK
position, the oven can be used to cook. When the
switch is in the COOL DOWN position, the oven is
cooling down for the next bake.
4. DISPLAY - displays time or temperature and other in-
formation related to oven function.
5. HEAT LAMP - lights when heater is on.
6. PULSE LAMP - lights when Pulsed Fan Mode is
turned on.
7. HOLD LAMP - lights when Hold Mode is turned on.
8. DIAL - used to enter set points in display
9. START/STOP KEY - starts or stops the timer.
10. TIME KEY - used to show time in the display.
11. TEMP KEY - used to show set temperature in the dis-
play.
NOTE: Actual temperature is shown while the
TEMP key is held down.
12. HOLD KEY - turns Hold Mode on or off.
13. PULSE KEY - turns Pulse Mode on or off.
14. HEAT CUTOFF - used to turn gas on or off
PROGRAMMING
To set the cook temperature:
1. Press TEMP (11) key.
2. Rotate dial (8) to enter temperature.
To set the cook time:
1. Press TIME (10) key.
2. Rotate the dial (8) to enter time.
NOTE: Time is entered in hours : minutes or min-
utes : seconds.
