Oven Components
Combustion Cover --- provides access to the
combustion compartment on gas ovens.
Combustion Compartment --- contains combus-
tion burners on gas ovens.
Combustion Burners --- provide heat to the bak -
ing chamber on gas ovens.
Chain & Turnbuckle --- controls operation of the
oven doors.
Control Panel --- contains wiring andcomponents
to control the oven operation.
Oven Racks --- five racks are provided standard.
Additional racks are available.
Rack Supports --- hold ov e n r a ck s .
Blo wer Wheel Cover --- locat ed on the ba ck interi -
or wall of the oven. Protects the blower wheel.
Blo wer Wheel --- spins to circulate hot air in the
baking chamber.
Convection Motor --- provides pow er to turn the
blower wheel.
Oven Lights --- provide lighting inside the baking
compartment.
Combustion
Cover
Combustion
Burners
Control
Panel Cover
Control
Panel
Convection
Motor
Blower
Wheel
Blower
Wheel Cover
Rack Support
Oven Rack
Chain &
Turnbuckle
Oven
Lights

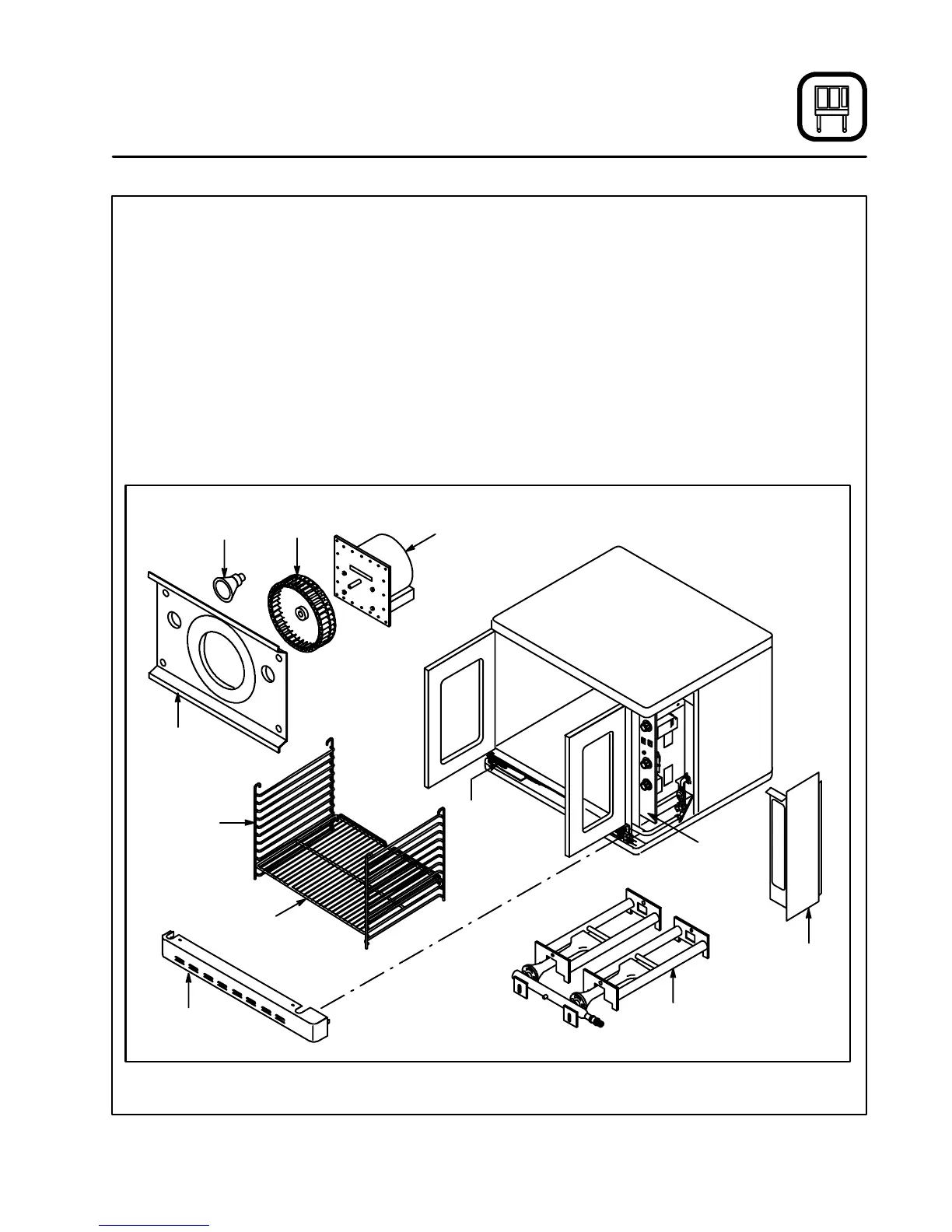

Figure 2
