147
AT6020

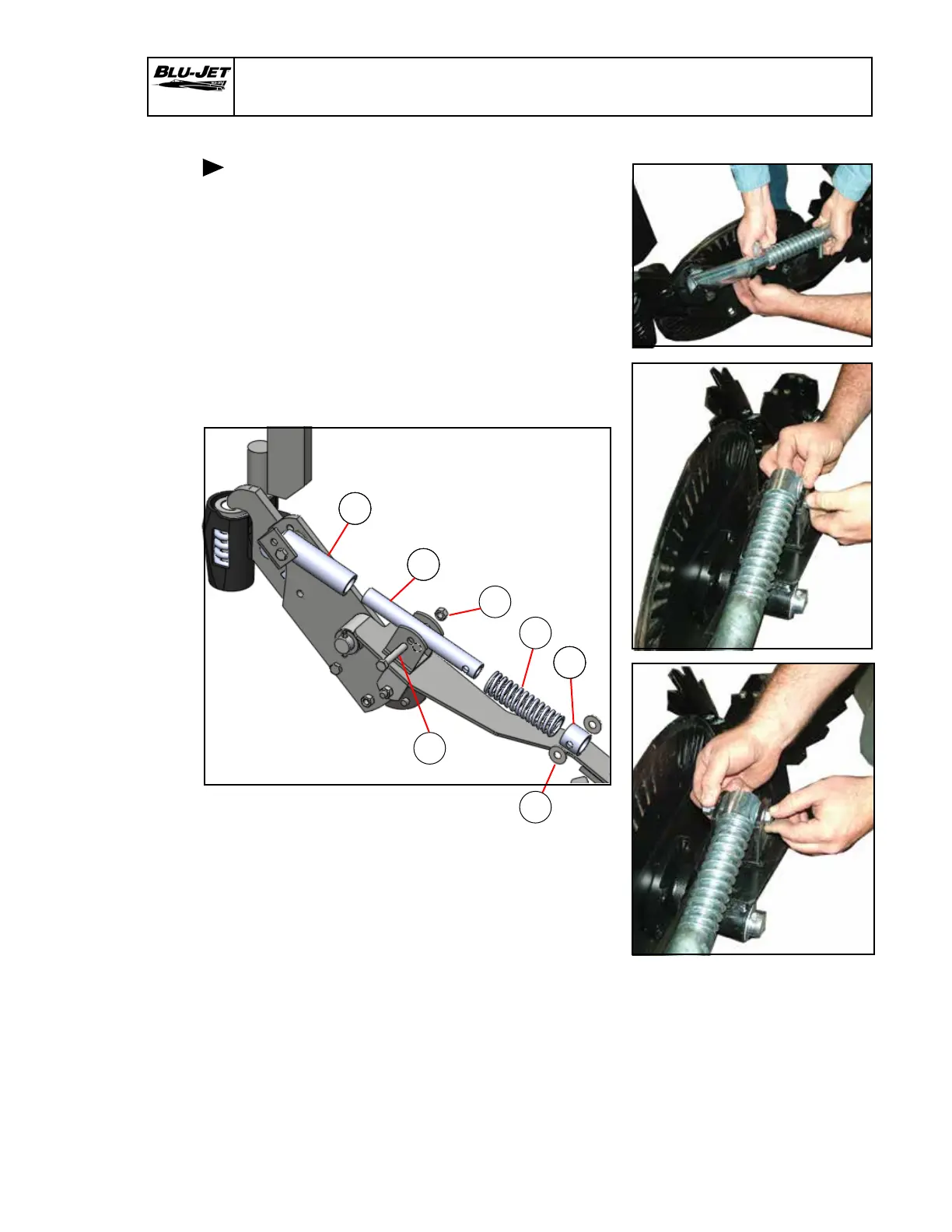

Mounting
spring
assembly
16. Insert (4) (AM2492) spring
guide tube into (2) (AM2490)
upper spring tube. Place (11)
(AP2997) spring over guide.
17. Place (3) (AM2491) spring
collar bushing over guide.
18. Raise arm insert (20) (BP3129)
1/2” x 3” hex cap screw
through (16) (BP3050) 1/2”
washers and (3) spring collar
bushing and second washer.
Secure with (23) (BP3244) 1/2”
hex lock nut.
Do not over
tighten. Allow tubes to pivot.
StripTill Residue Manager
111
4
20
111
2
23
16
111
3
11
To Next Page
