148
AT6020

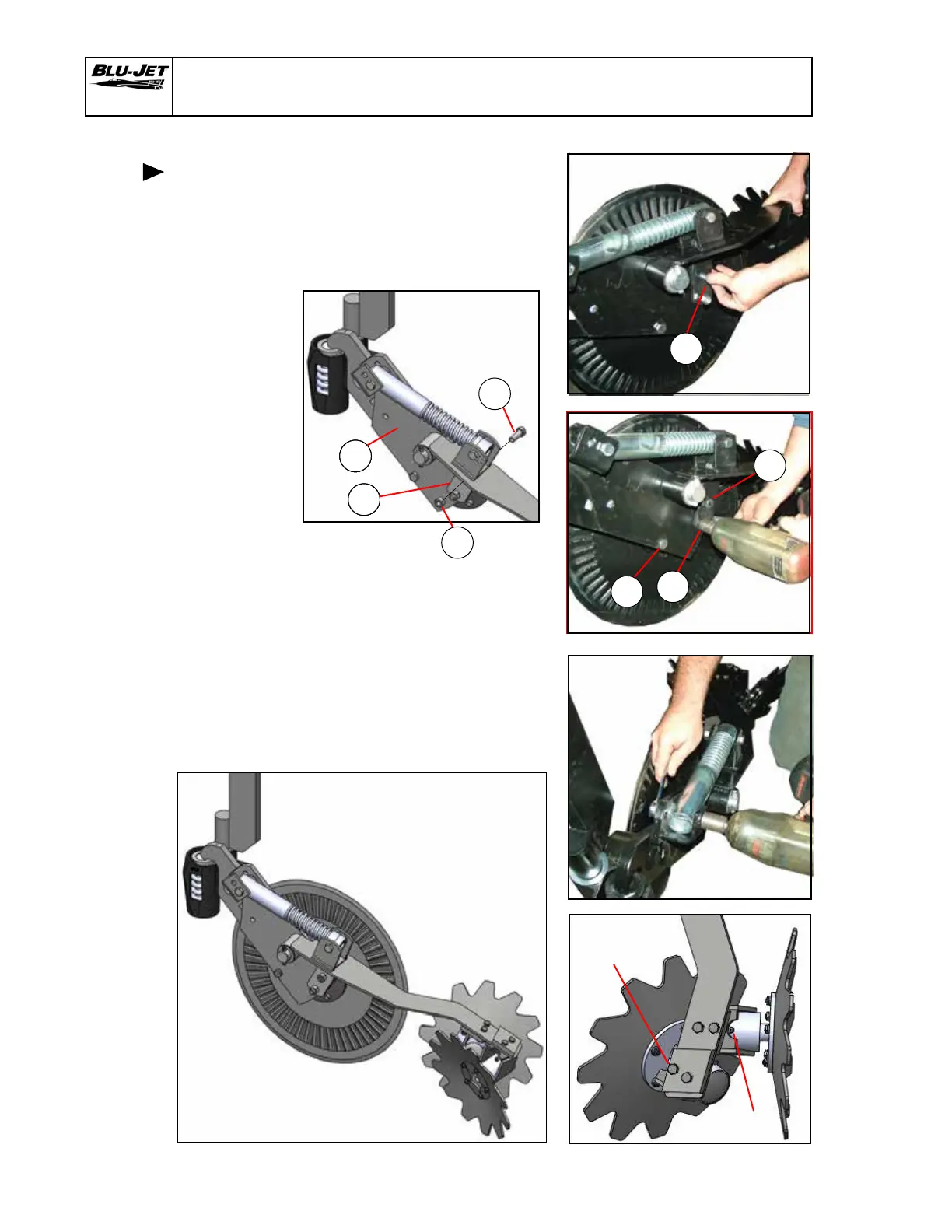

19. Rotate arm stop bracket (8)
under residue manager arm
and Insert (18) (BP3126) 1/2” x
1-1/2” hex cap screw from the
hub side through coulter arm,
(7) and (8) arm stop bracket.
Secure with (23) (BP3244) 1/2”
hex lock nut.
20. Tighten the 1/2” hex lock nuts
on (15) (18) and (19) on (8) pivot
arm bracket.
21. Grease hubs.
111
8
18
23
23
15
18
19
Securing
arm stop
StripTill Residue Manager
Grease
Grease
111
7
To Next Page
