BLU-JET AT6020 - Page 182

Task Procedures Illustrations
180
AT6020
Mounting
tongue
cylinder
linkage
cylinder
NOTE:
Left-hand
and
right-hand
as viewed
from the
rear

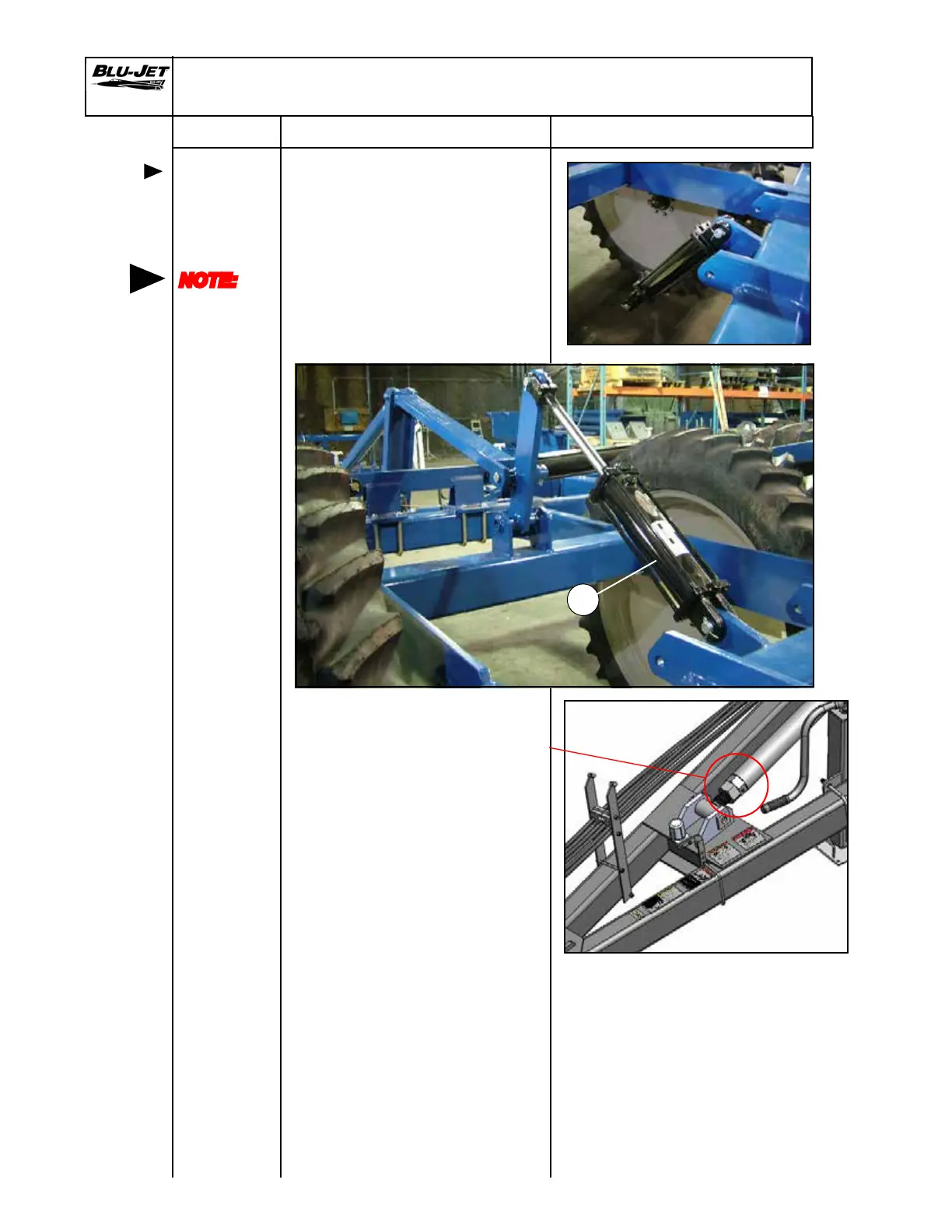

Tongue Linkage Assembly
7. Mount (a) (DP4484) 3-1/2”
X 12” rephase cylinder to
main frame weldment with
cylinder pin. (Ports up)
8. Loosen plugs and extend
rod to cylinder arm.
9. Adjust turnbuckle if cylinder
rod and arm do not match
up.
10. Secure cylinder rod to arm
Generic Photo
a
