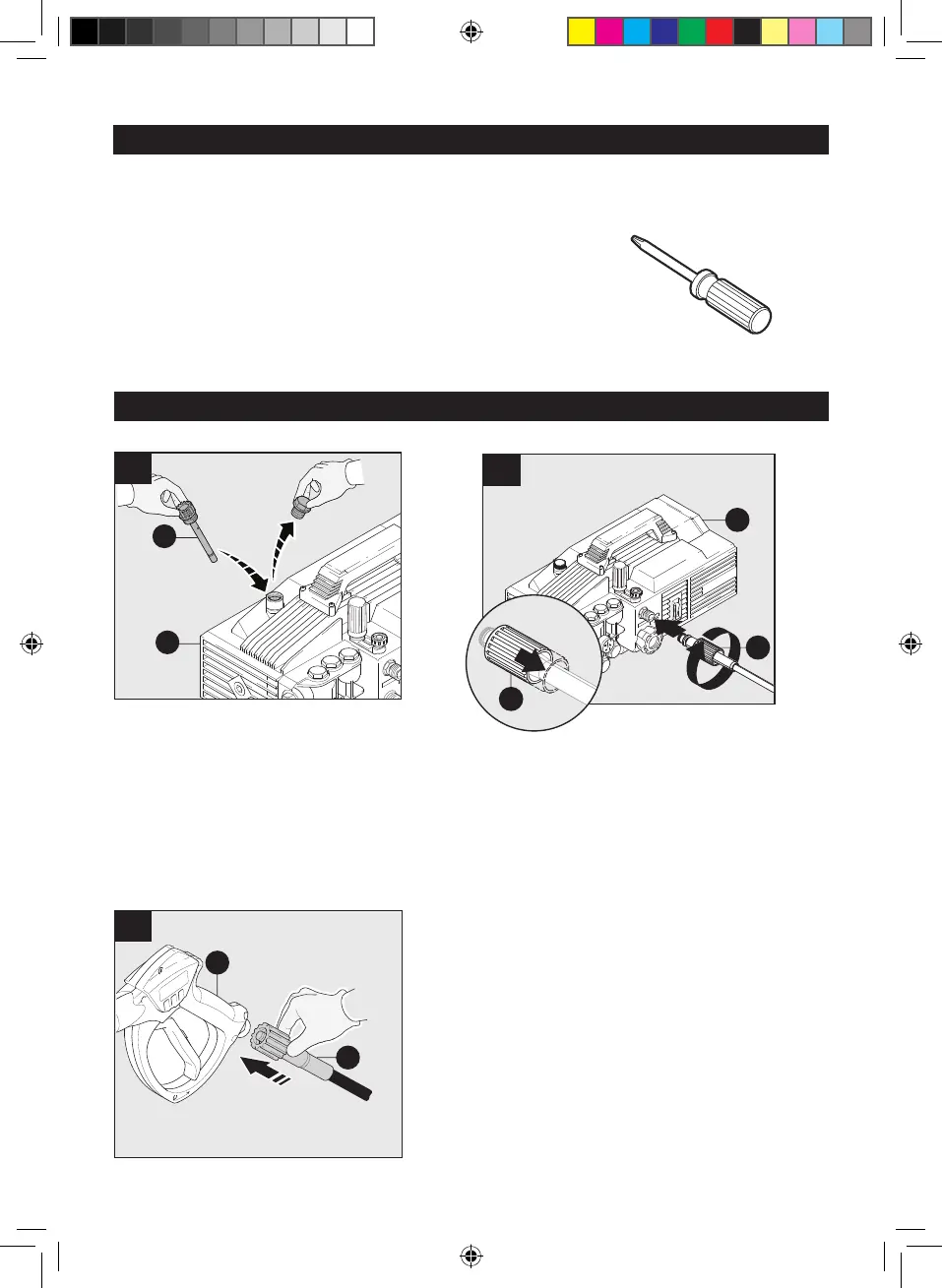

ASSEMBLY INSTRUCTIONS
Power Unit Assembly
Take the cap off from the power washer unit (C),
and then put the breather cap (F) into the power
washer unit (C).
C
F
1
2
1
2
C
E
3
2
1
E
3
E
A
PREPARATION
Before beginning assembly of product, make sure
all parts are present. Compare parts with package
contents list and hardware contents list. If any
part is missing or damaged, DO NOT attempt to
assemble the product. Please call customer service
at 1-866-235-5112. Replacement parts will be
sent no charge.
Estimated Assembly Time: 5 minutes.
Tools Required for Assembly (not included): Phillips
screwdriver.
PREPARATION
Pull back on collar at the other end of high pressure
hose (E). Push rmly to connect hose to power
washer unit (C). Twist collar to secure. Conrm hose
is locked into power washer unit by slightly pulling
on hose. The hose is now securely attached.
Pull back on collar at one end of high pressure
hose (E). Push rmly to connect hose to spray gun
(A). Twist collar to secure. Conrm hose is locked
into spray gun by slightly pulling on them. The hose
is now securely attached to spray gun.
