Bluetti EP760 - Page 24

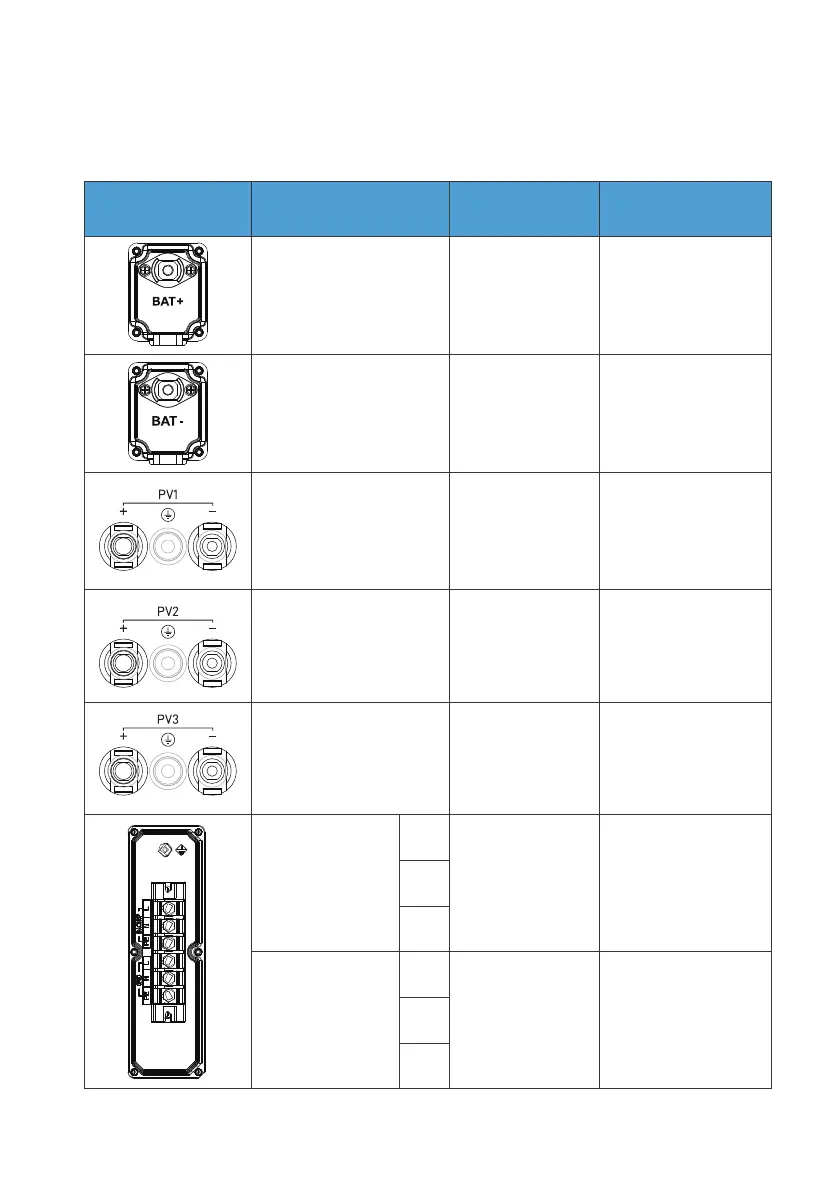

3.3.2 Interface Description
Table 3-4
Conductor
cross-sectional
area: 2.5mm
2
Conductor
cross-sectional
area: 2.5mm
2
Conductor
cross-sectional
area: 2.5mm
2
Battery expansion
cable (Positive)
BAT+: to the
battery BAT+ terminal
BAT-: to the
battery BAT- terminal
Battery expansion
cable (Negative)
Outdoor multi-core
copper cable
(Optional)
Outdoor multi-core
copper cable
(Optional)
Outdoor multi-core
copper cable
(Optional)
Conductor
cross-sectional
area: 6mm
2
Conductor
cross-sectional
area: 10mm
2
AC copper cable
(Optional)
AC copper cable
(Optional)
Load（BACKUP）
L
N
PE
L
N
PE
Grid (GRID)
Terminal
Type of Cable
Required
Description
Cable specification
PV1+: to the positive
terminal of solar panel
PV1-: to the negative
terminal of solar panel
PV1 PE: PV1 grounding
PV2+: to the positive
terminal of solar panel
PV2-: to the negative
terminal of solar panel
PV2 PE: PV2 grounding
PV3+: to the positive
terminal of solar panel
PV3-: to the negative
terminal of solar panel
PV3 PE: PV3 grounding
