Bluetti EP760 - Inverter Dimensions and Interface Details

368mm
626mm
324mm

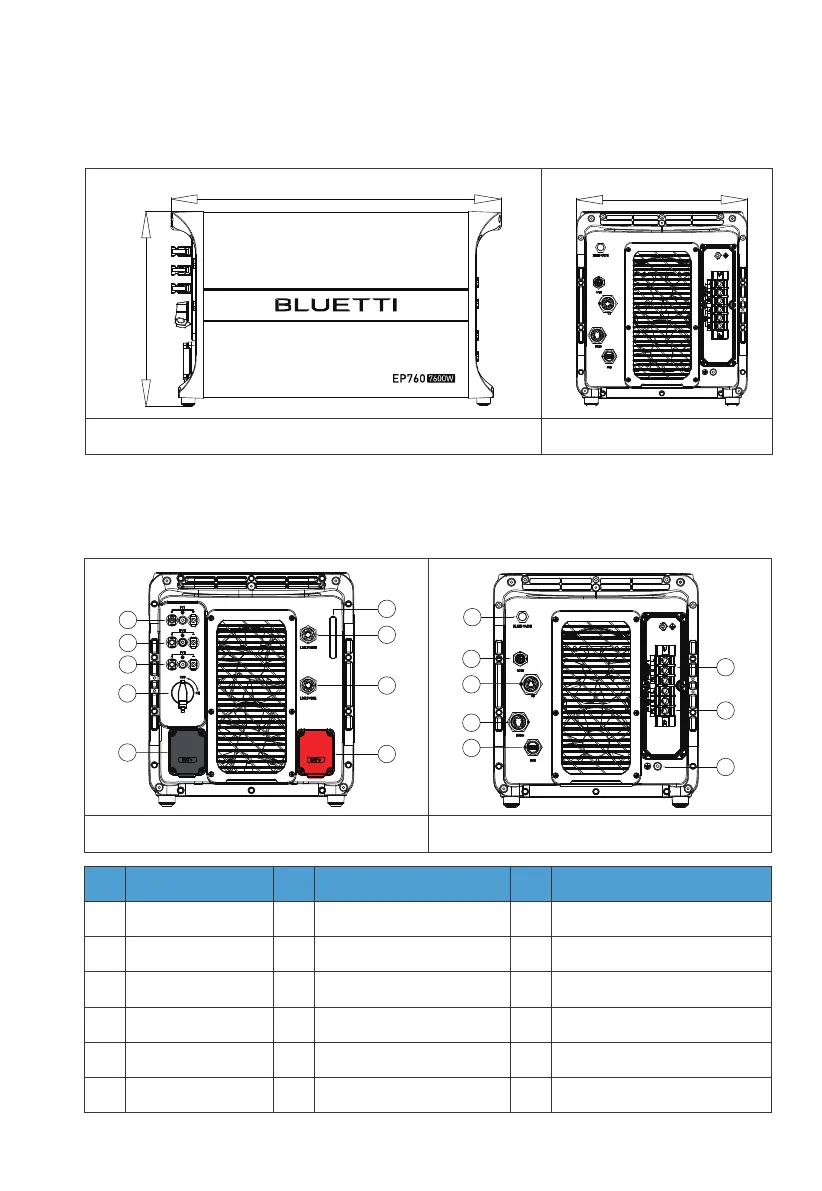

3.2.2 EP760 Inverter Dimensions
Table 3-2 (Unit:mm)
Front Right
3.3. Inverter Interface
3.3.1.EP760 Interface
Table 3-3
Left
1
2
3
4
5
6
PV Input 1
PV Input 2
PV Input 3
DC Switch
BAT- Terminal
LED Indicator
Name No.No.
7
8
9
10
11
12
LINK PORT 1
LINK PORT 2
BAT+ Terminal
BLEED VALVE
COM Port (Meter Port)
CT Port
Name No.
13
14
15
16
17
DRMs Port (Generator)
USB Port
BACKUP Terminal
GRID Terminal
GND Terminal (Grounding)
Name
Right
1
2
3
4
6
7
8
5
9
10
11
12
13
14
15
17
16
JUST POWER ON
