JUST POWER ON 47
Step 4: Fix 2 brackets #1 to two sides of B500 with 4 M5*10 screws. Put the bracket #2
through the compression rivet screw of bracket #1 and M8 expansion bolts. Secure
the connection with M8 and M5 nuts.
Step 5: Repeat Step3 and 4 to secure all battery packs.

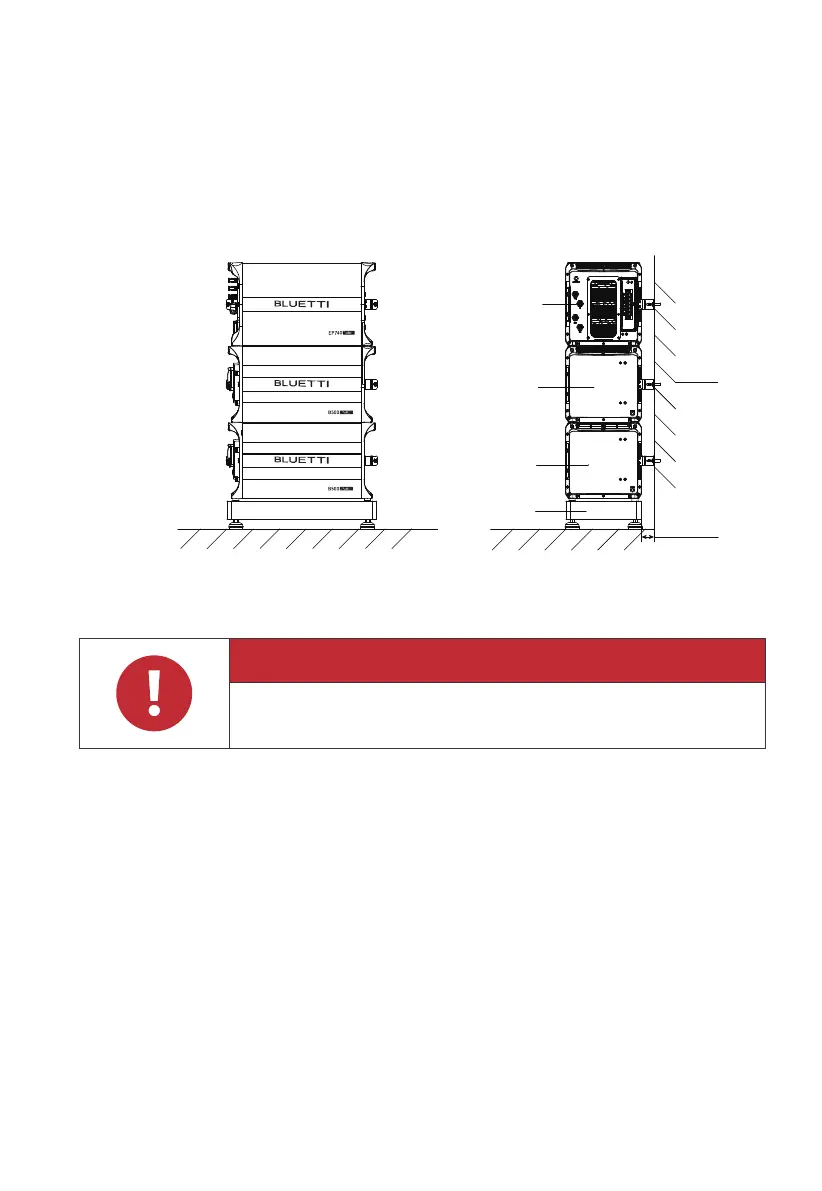

Step 6: Follow the same steps to install the EP760 inverter on top.
6.5 IoT Controller Installation
Danger
Make sure to check for any cables or pipes before drilling into the
wall.
Figure 6-5
To ensure a strong and uninterrupted wireless signal, it is recommended to install
the IoT controller in an open space, away from obstructions, and minimize the
distance between your home WiFi router and the IoT controller.
Avoid installing the IoT controller near steel-reinforced concrete or metal walls, as
these materials can interfere with WiFi and Bluetooth signals.
Step 1: Drill 2 pilot holes in the wall. Please refer to the drill position and hole size
shown in Figure 6-6-1 and Figure 6-6-2. The depth of hole is 24mm.
Step 2: Hammer the expansion wall plug in until it’s flush with the wall. See Figure 6-6-3.
Step 3: Fix the mounting bracket onto the wall and use the cross screwdriver to
fasten 2 self-tapping screws into the wall plugs. See Figure 6-6-4.
Step 4: Align the controller’s buckle over the U-slot and push the controller
downwards until it snaps in place. See Figure 6-6-5 and Figure 6-6-6.
Ground
Wall
B500
Base
B500
EP760
50-55mm
