JUST POWER ON46
6.4 Stacking the EP760 ESS
Step 1: Place the base on the ground and adjust the height of leveling feet so that
the base stands stably on the ground. Don’t forget to tighten the nuts to secure the
leveling feet.
Step 2: Mark the drilling positions with tape and marker. Drill holes with an electric
drill and insert M8 expansion bolts.
Note: If you are working with a wooden wall, simply mark the positions and use M8
self-tapping screws to secure the unit directly onto the wall.
Step 3: Move the B500 battery pack to the base. Two people are required to transport
the B500. Align the bumps on the battery with the notches on the base to secure
the battery in place.

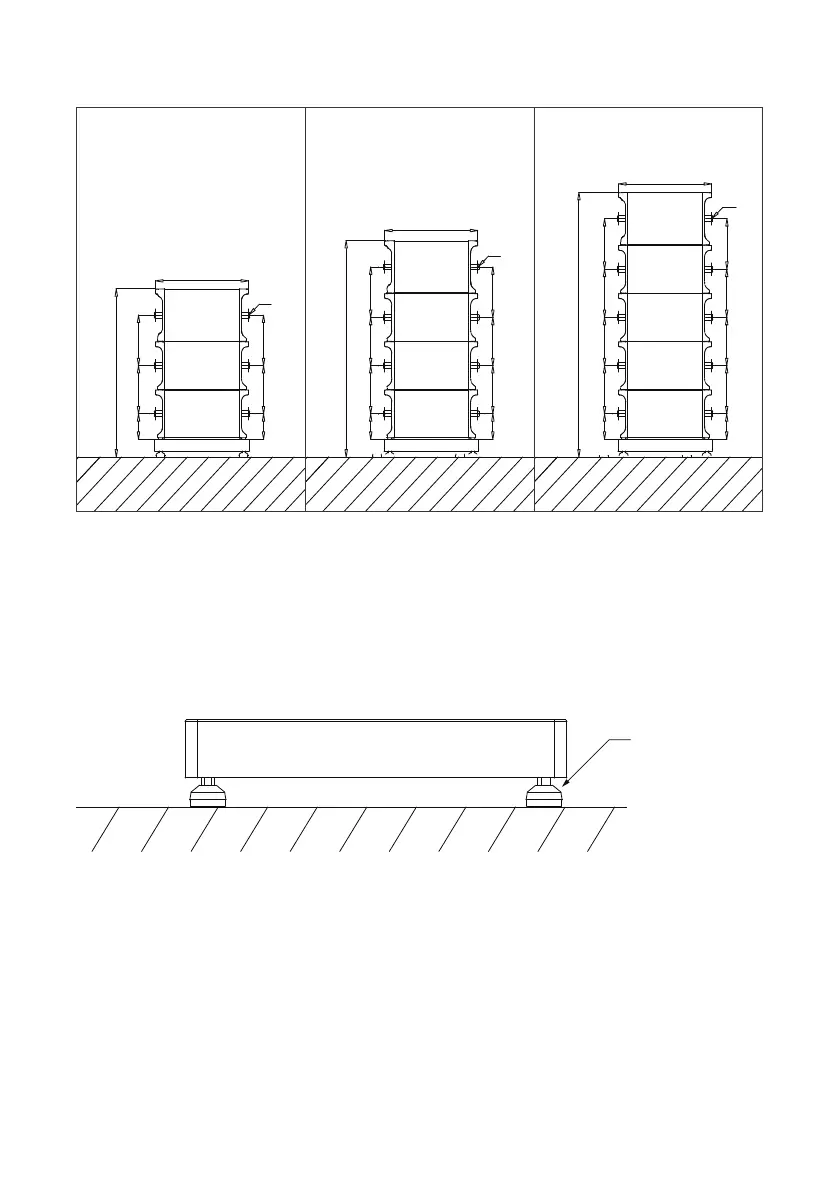

Figure 6-3 (Unit: mm)
Ground
The height of 4
leveling feet can
be adjusted.
Figure 6-4
( 3 layers) ( 4 layers) ( 5 layers)
171.5mm
325mm 340mm
1133mm
1458mm
1782mm
340mm325mm
171.5mm
Ø8
Ø8
Ø8
628mm
171mm 325mm 325mm 340mm
171.5mm 325mm 325mm 340mm
628mm
171.5mm
325mm 325mm
171.5mm
325mm 325mm
325mm 340mm
325mm
340mm
628mm
To Next Page
