Speedmachine Owners Manual
Recommended assembly procedure
If you are building a Speedmachine from scratch, the most convenient way is to follow
the order and the procedure described below. This is only the global procedure, all the
separate steps and recommendations are described one by one in the next pages of
this manual.
INFORMATION: Please go through all the instructions before starting. Following the
order of this sequence will help you save time and facilitate the assembly.
1. Sizing and parts selection
2. Frame preparation
3. Fork preparation
4. Base bar preparation
5. Seatpost preparation
6. Electronic wires installation
7. Seatpost assembly
8. Brake calipers assembly
9. Headset and fork assembly
10. Bottom bracket and crankset assembly
11. Base bar assembly
12. Armrest risers, armrests and extensions installation
13. FuelTank or water bottle installation
14. Top tube storage
15. Wheels and axles

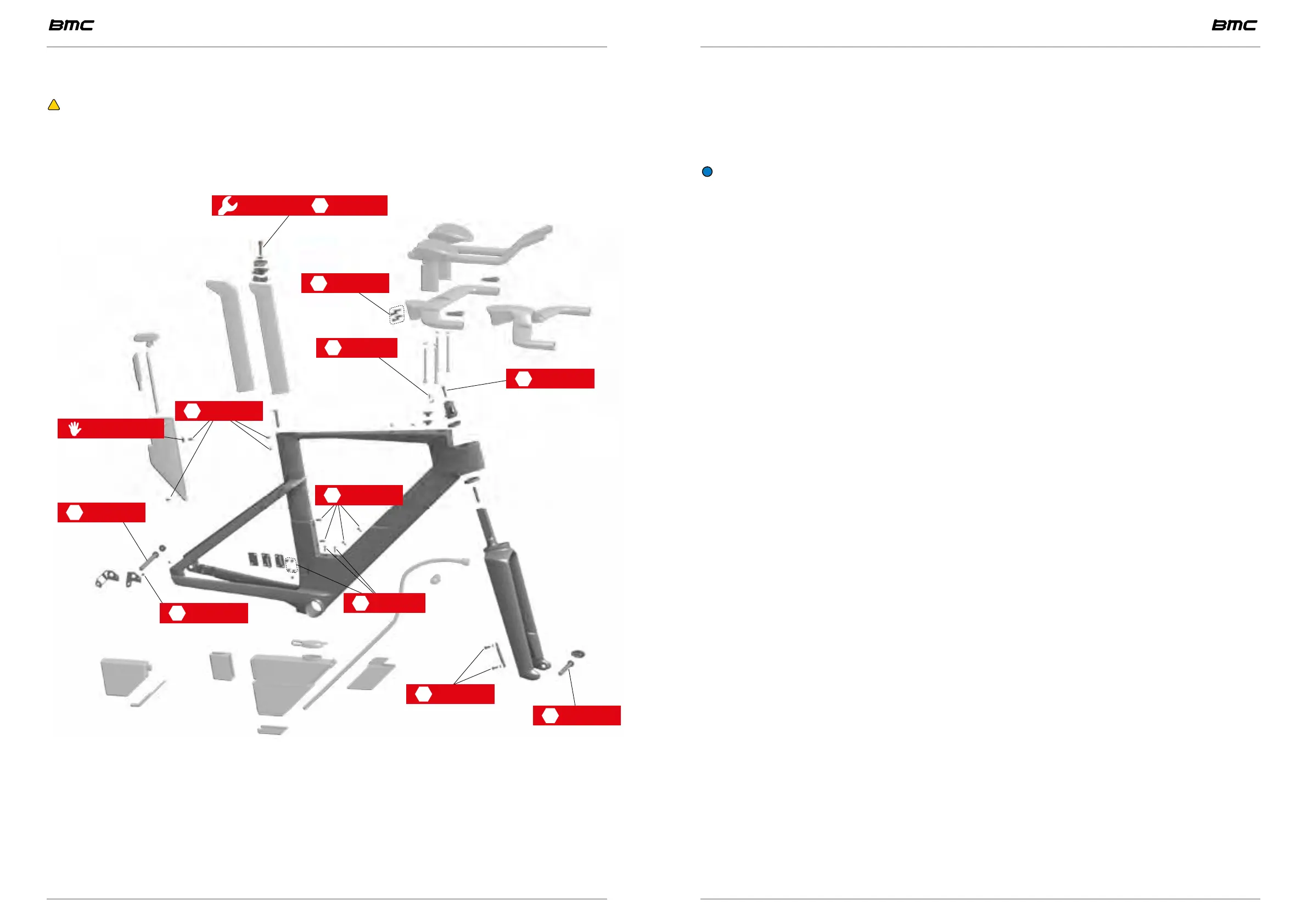

Torque specifications
WARNING: Respecting and controlling the correct torque on fasteners is important
for your safety. If too little force is applied the component will not hold safely and if too
much force is applied the component thread could deform and break.
Therefore, not respecting the torque specification of any component could result in
failure, which can cause loss of control and fall.
6 10 Nm
6 10 Nm
4 6 Nm
4 4 Nm
4 5 Nm
3 3 Nm
3 3 Nm
3 3 Nm
6 16 Nm16 Nm
11
or
2.5 3 Nm
2.5 3 Nm
by hand
