Speedmachine Owners Manual

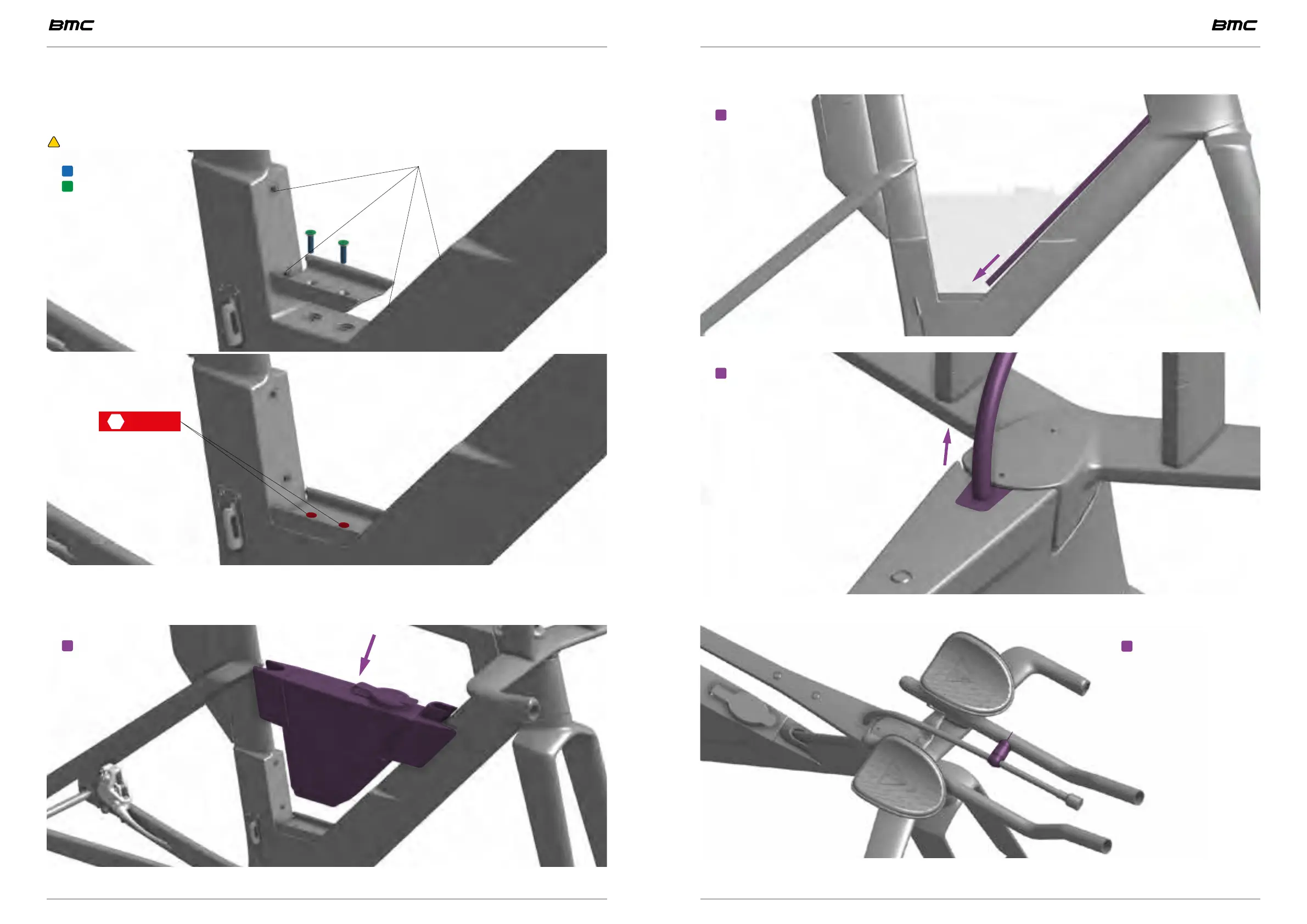

FuelTank installation
• Install the FuelTank clip using the 2 M4x16 bolts.
• Grease the 2 bolts upper surface to reinforce their protection against corrosion.
WARNING: Do not install the down tube or seat tube bolts.
Grease
Thread locker
no bolt
2.5 3 Nm
• Tighten to 3 Nm using a hex 2.5mm wrench.
• Install the FuelTank by sliding it over the clip and pressing it down firmly until you feel
it snap into the clip.
Push down
firmly to clip in
• Route the straw into the FuelTank pushing it enough to reach
the bottom of the FuelTank.
Slide to the
bottom of the
Fueltank
• Route the straw through the top tube cap.
Slide the straw into
the top tube cover
• Slide the magnet on the straw
• Attach the magnet to one of the extension using a zip tie
Install magnet on one
of the extension
• Slide the bite valve into the straw
To Next Page
