Speedmachine Owners Manual
Pads installation

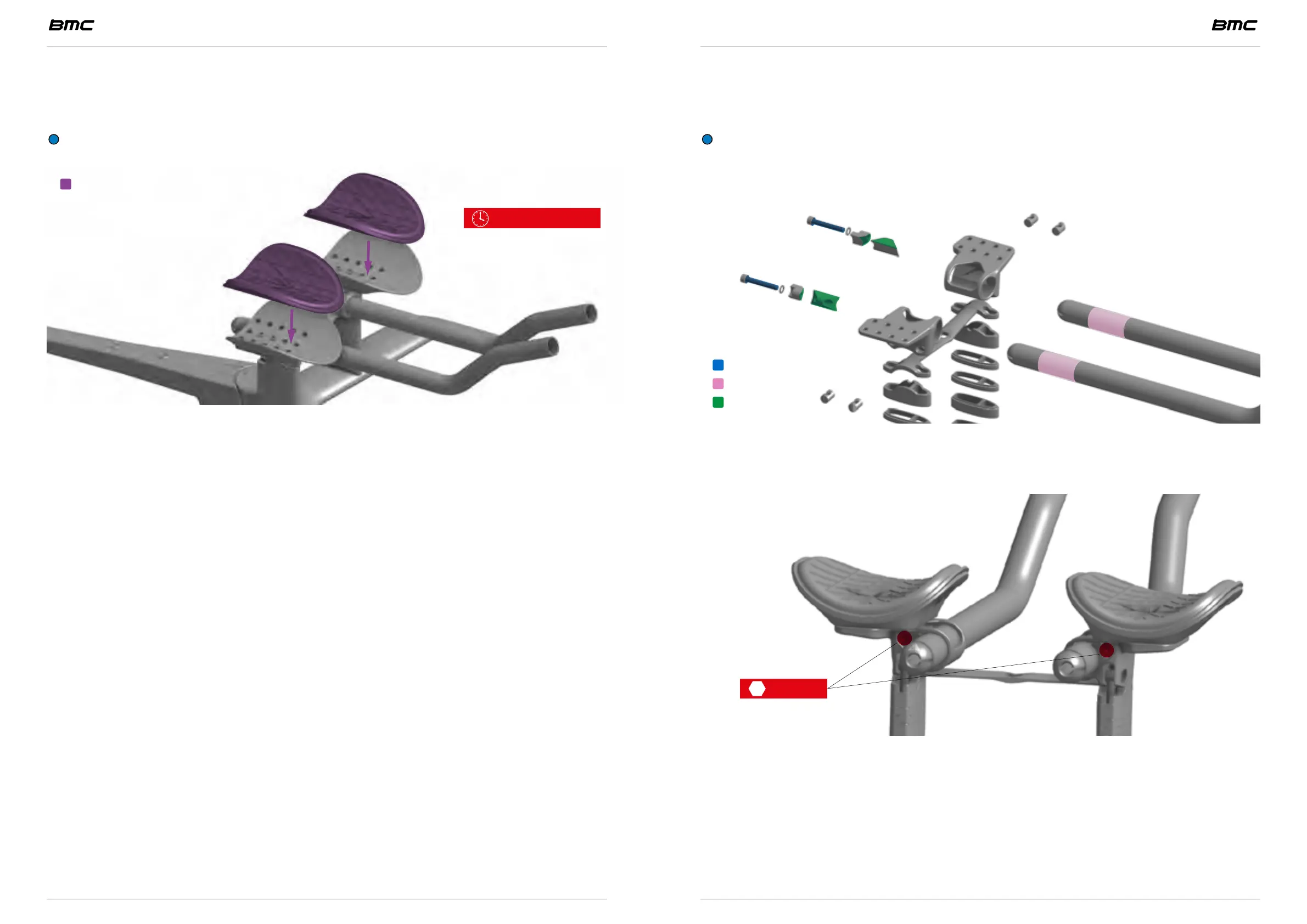

• Install the pads by placing carefully on hook and loop backing of the armrest and hold
firmly for 30 seconds. Repeat for the other pad.
INFORMATION: Note that the pads are symmetric and it doesn4t matter which side
pads are applied to.
Align and press 30 sec
Press 30 sec.
Extensions installation
The Speedmachine is delivered with the popular extension “45/25 SLC Aerobar
Extensions 400mm”
INFORMATION:: The extension diameter is Ø22.2mm. Therefore, other Profile
Design extensions or other Ø22.2mm extensions are compatible.
• Apply grease and Friction paste where indicated on the illustration bellow.
Thread locker
Friction paste
Grease
• Install the extension clamps
• Slide the extensions and orient them to the desired position
4 5 Nm
• Tighten to 5 Nm using a hex 4mm wrench.
