Detailed assembly instructions Detailed assembly instructions
44
45
Speedmachine Owners Manual

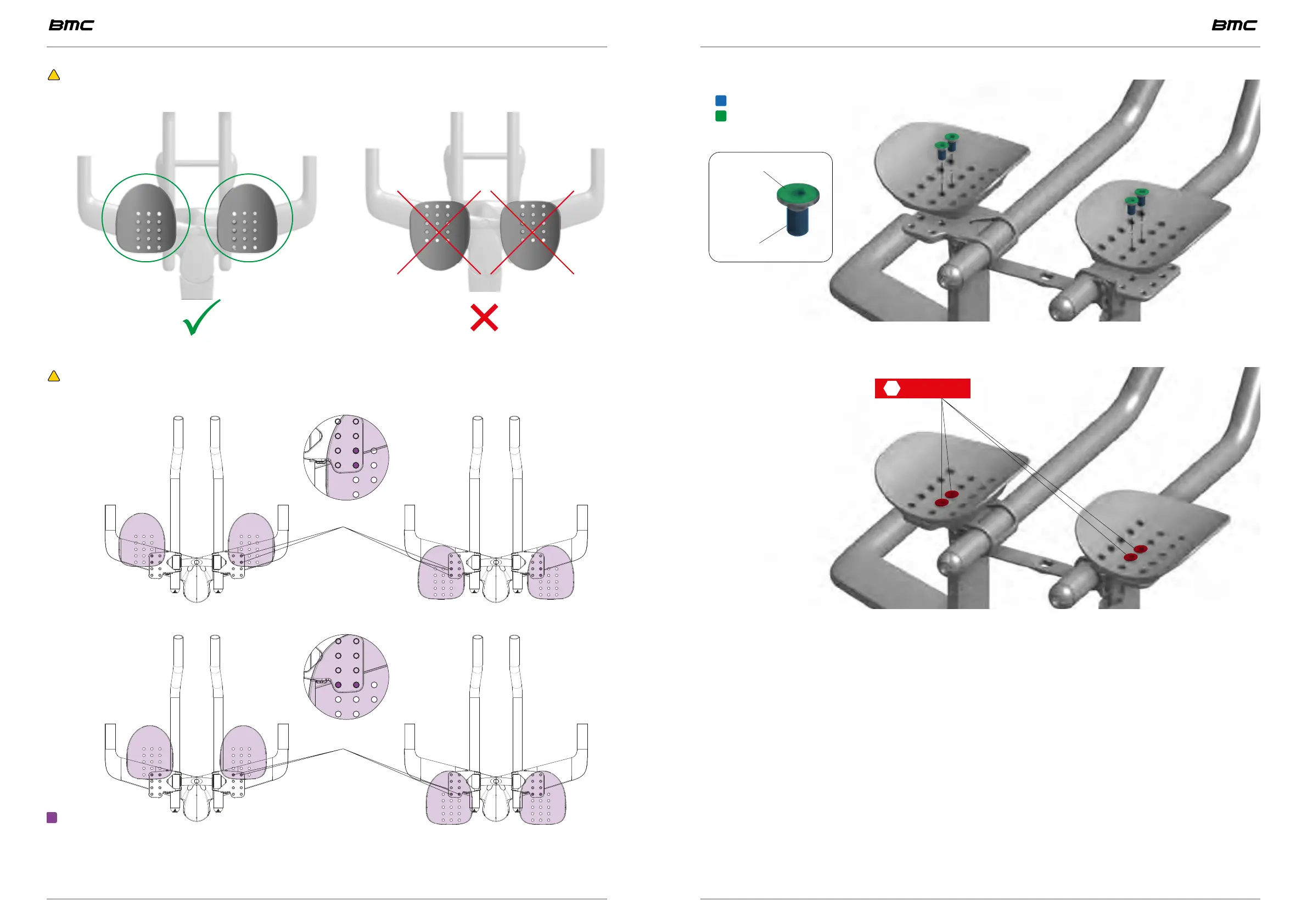

WARNING: The armrests are not designed to be used in the reversed position.
Respect the orientation illustrated bellow.
WARNING: Bolts orientation is preferred like described in the illustration bellow.
This orientation gives a better structural stability to the armrests.
Recommended
Permitted
Bolts placement
Grease
Thread locker
Thread locker
Grease
• Grease the 4 armrest bolts upper surface to reinforce their protection against corrosion.
4 4.7 Nm
• Tighten to 4.7 Nm using a hex 4mm wrench.
