Speedmachine Owners Manual
Special parts details

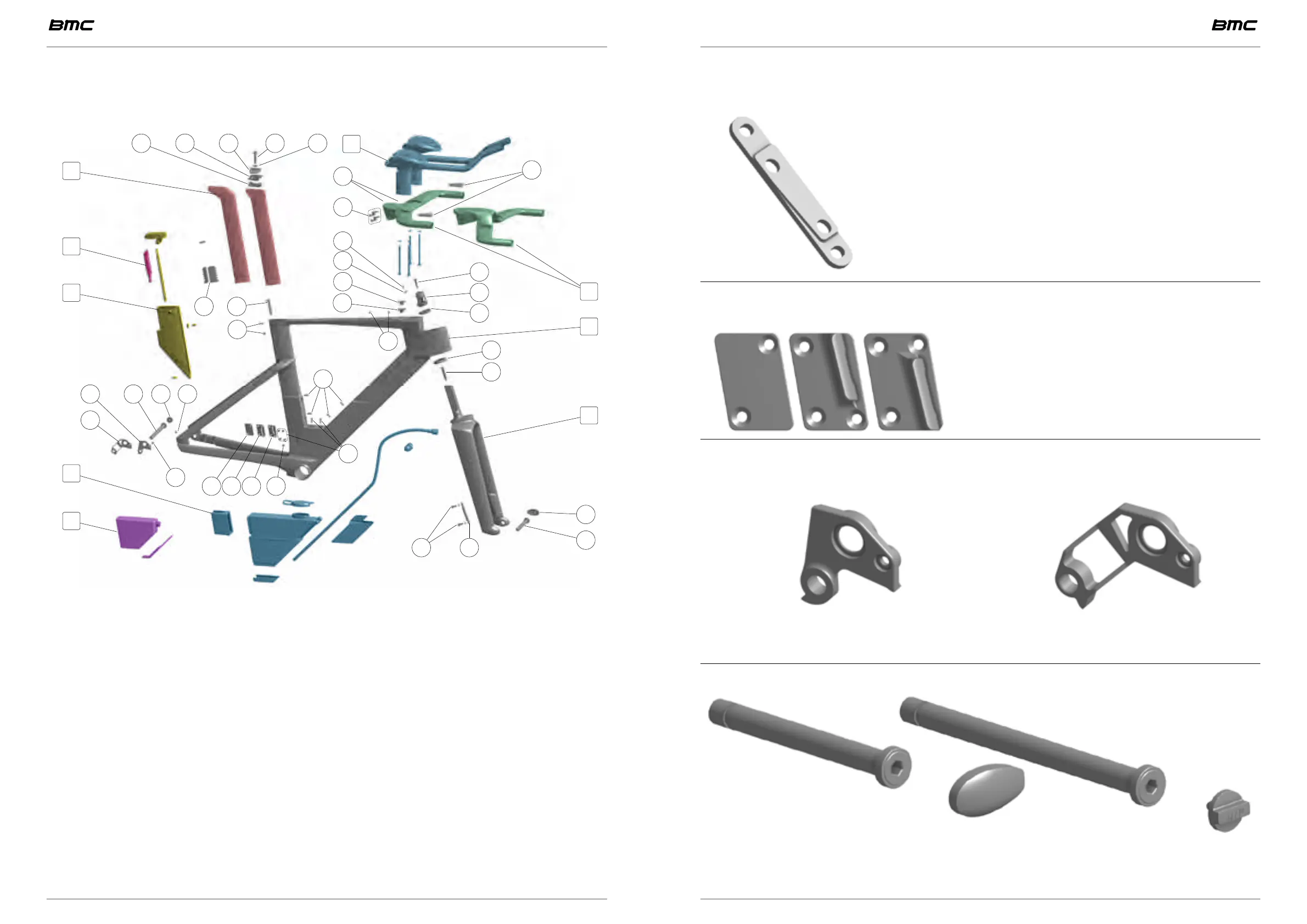

Frameset and parts
4
1
2
37
36
39
40
3
38
27
28
29
33 30 26
1941
5A 5B5C5D5E
15
17B
17A
16
6
11
34
7
10
32
8
35
25 24 23 26
20
9
18
14
21
22
12
13
Frame hardware
Front brake adapter
Article numbers:
30000714 BRK Mount ADP SLR01 SLR
Front dropout hangers
Article numbers:
30006301 FD Hanger SM00/01
Rear dropout hangers
Standard Direct mount
Article numbers:
30006287 Dropout No. 81 (standard) 30006288 Dropout No. 82 (direct mount)
Thru-axles
Article numbers:
30006250 Thru Axle Kit No. 10
30006292 Thru-axle plugs and Top Tube Hydration tube cover SM00/01
NO. Description/Details
1 Speedmachine frame
2 Speedmachine fork
3 Speedmachine base bar
4 Speedmachine seatpost
5A Saddle clamp Flange bolt M8x35
5B Saddle clamp Washer
5C Saddle clamp Upper clamp
5D Saddle clamp Lower clamp
5E Saddle clamp Clamp support
6 Headset compression aluminum bolt M6x50
7 Expander self-cutting aluminum bolt
8 Front brake mount adapter
9 Front brake bolts M5x14 with washer
10 Thru-axle rubber cover front (TPU)
11 Headset aluminum sleeve
12 Cockpit Assembly bolts M5x16.5 with washer
13 Base bar top bolts M3x5
14 Hand Stopper
15 Rotation stop Stainless steel
16 Rotation stop bolt M4 x 10
17A Hydration tube cover
17B Hydration tube cover - closed
18 Rivet Plug M5 (Top tube & seat tube rear)
NO. Description/Details
19 Seatpost clamp plate
20 Seat post clamp bolts M6x10
21 Bottle cages bolts M5x12
22 Front derailleur or FuelTank bolts M4 x 16
23 Front derailleur plate - high
24 Front derailleur plate - standard
25 Front derailleur plate - cover
26 Derailleur cable hole Blind plug 6mm
27 Rear derailleur hanger - Shimano Direct Mount
28 Rear derailleur hanger - standard (SRAM)
29 Rear derailleur hanger bolt M4x8
30 Thru-axle rubber cover rear (TPU)
31 Derailleur cable plug 6mm for DI2
32 Thru-axle front
33 Thru-axle rear
34 Headset upper bearing
35 Headset lower bearing
36 FuelTank 1200
37 Time Trial Bottle 400
38 Rear Storage 260
39 BMC Rear light StVZO
40 Profile Design Risers, Armrests and extensions
41 Battery holder set
