Speedmachine Owners Manual

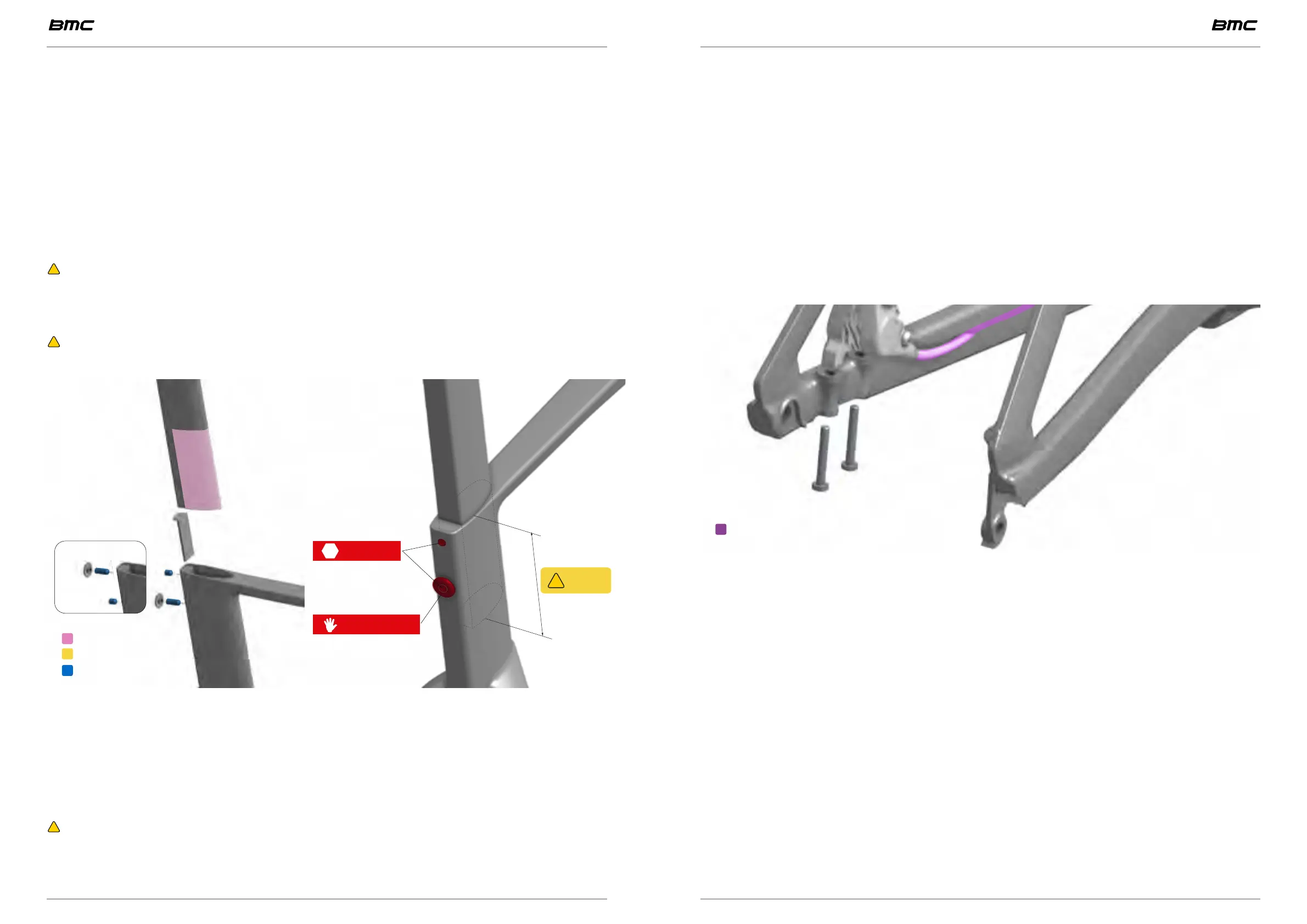

Brake calipers assembly
Rear brake
The rear brake must be installed either:
• Directly on the frame brake mount for 140mm rotor compatibility
or
• Using a 20mm bracket for 160mm rotor compatibility
• Push the rear brake hose from the back to the front inserting it in the left chainstay ingress
Guide the hose through the head tube and let it exit at the top.
Select the rear brake adapter and bolts. Refer to brake caliper’s manufacturer’s to determine:
• The correct adapter plate based on your rotor size.
• The correct bolt length and the appropriate torque value.
• Bolt on the rear caliper on the flat mount brake mount using appropriate bolts and follow brake
manufacturer recommendation for installation (thread locker and torque)
Route chainstay and downtube
Frame seatpost clamp installation
• Apply a thin layer of friction paste onto the frontal surface of the seatpost tube.
• Grease the 2 compression M6x10 and M6x14 socket set bolts and install them into the
frame threads without tightening.
For a small frame size (S)
• The longer bolt M6x14 is to install at the top.
• The shorter bolt M6x10 is to install at the bottom.
For a medium or a large frame size (M or L)
• The shorter bolt M6x10 is to install at the top.
• The longer bolt M6x14 is to install at the bottom.
• Slide the flat shim in the seat tube and slide the seatpost.
WARNING: Failing to use the shim will damage the seatpost as bolts will damage
the seatpost when tightening.
• Insert the seatpost to your desired saddle height.
WARNING: Remember to respect the minimum insertion of 70mm Not respecting
the minimum insertion could result in frame or seatpost damage, break and injury.
3 3 Nm
by hand
Thread locker
Friction paste
Measure
size S
70mm
mini
!
• Tighten both M6x10 and M6x14 bolts to 3 Nm using a hex 3mm wrench.
• If you are looking to ride with the Rear Storage 260, install the flange on
the longer bolt. The Rear Storage 260 module requires this flange to be
installed on the longer bolt.
• Tighten the flange by hand or using a circlip pliers.
WARNING: Do not over thigh the flange.
