Fork preparation
The fork provided with the frameset or the bike is already cut to size and to the
specific angle required for your frame size.
There is no need to adjust this length for a change of cockpit.
Base bar preparation
Cutting instructions
The base bar grip section is adjustable to your own preference or hand size.
You can cut up to 30mm.
i
INFORMATION: Best if use an appropriate carbon specific saw blade such as the
Park Tool CSB-1.
!
WARNING: If cutting the base bar grip section, make sure to respect the maximum
cutting instruction.
!
WARNING: Before cutting, always check the minimum insertion required by your
brake levers.
Maximum cutting length
Cutting marks

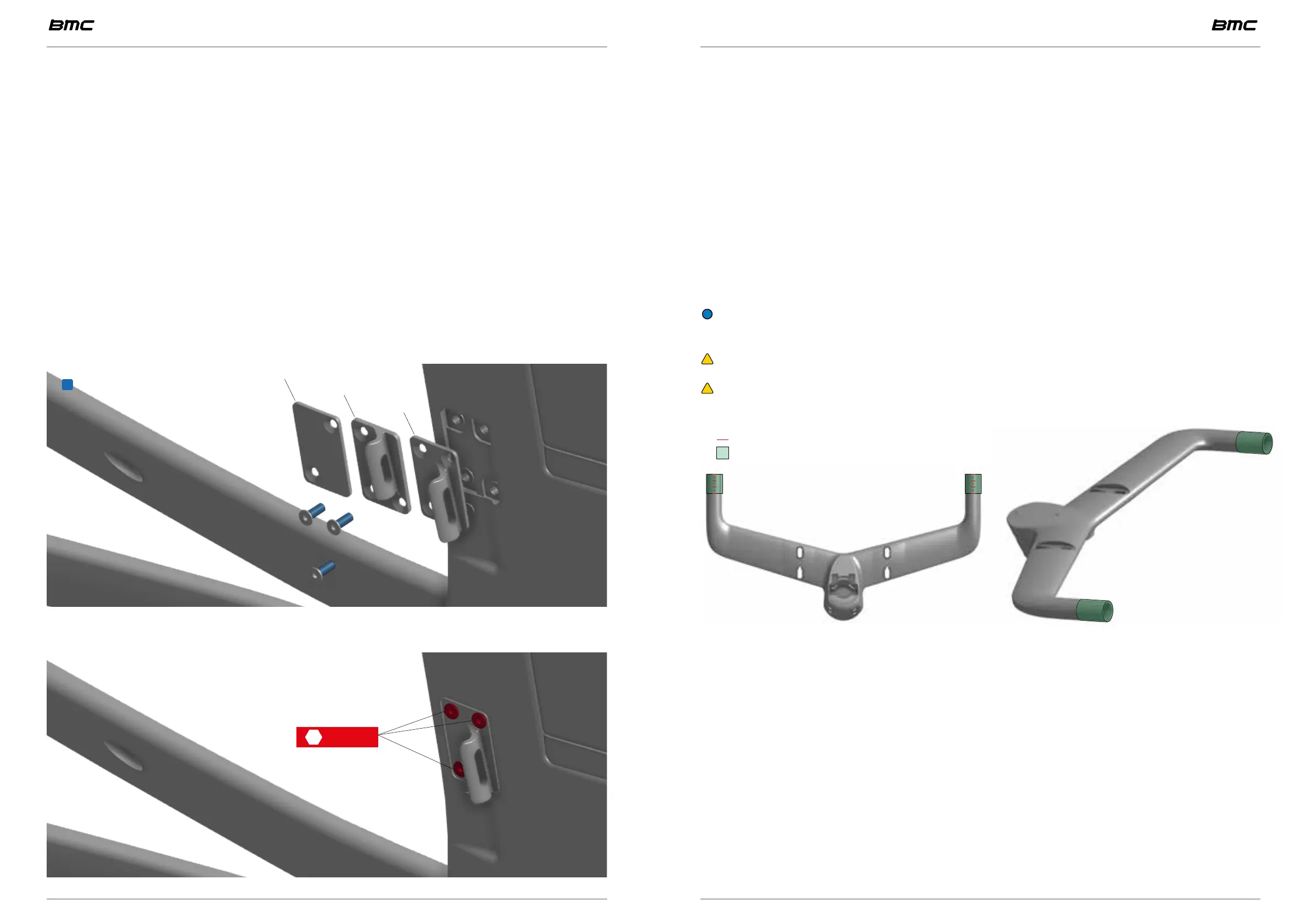

Front derailleur hanger installation
• Select the right model of hanger depending on your groupset,
the chainring configuration, and the front derailleur design.
You can chose between 3 front derailleur hangers:
• 1x single chainring - no front derailleur - flat plate
• 2x double chainrings standard
with front derailleur standard mount 141mm to 153mm
SRAM 46-54, SHIMANO 50-56
• 2x double chainrings big
with front derailleur high mount 153mm to 161mm
SRAM 52-59, SHIMANO 56-60
• Position the selected dropout hanger on the frame and bolt on the M4x8 bolts
using a hex 2.5mm.
• Apply thread locker onto the bolts threads
1x
2x standard
2x high
Thread locker
• Tighten to 3 Nm using a hex 2.5mm.
2.5 3 Nm
