Speedmachine Owners Manual

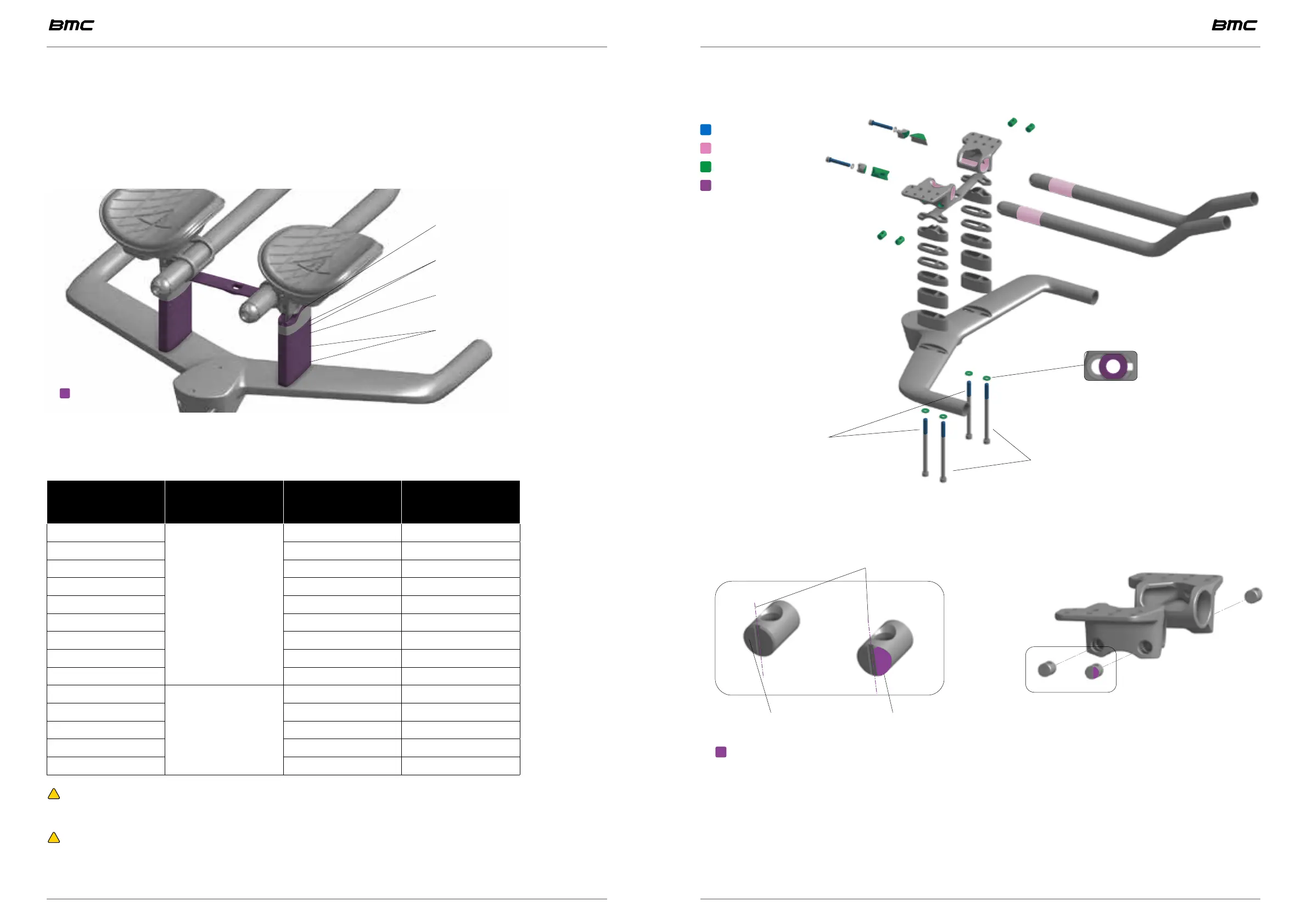

Armrest risers, armrests and extensions assembly
Stack height
Depending on your defined position (armrest stack), you can pick and prepare the ap-
propriate set of spacers and bolts.
You can stack up to 65mm each 5mm increment. Parts illustrated in purple are parts
you can chose to use to adjust your armrests stack.
5mm Bridge 1x
5mm Riser 4x
10mm Riser 2x
20mm Riser 4x
Adjust stack
• Follow the table bellow to select the right set of bolts and spacers to match
your wished stack.
Spacer Stack
[mm]
Bridge
(5mm)
Front bolt length
[mm]
Rear bolt length
[mm]
0
NO
35 30
5 40 35
10 45 40
15 50 45
20 55 50
25 60 55
30 65 60
35 70 65
40 75 70
45
YES
80 75
50 85 80
55 90 85
60 95 90
65 100 95
WARNING: We strongly recommend to use the bridge from 45mm stack height. It
will bring additional stiffness and stability.
WARNING: The front and rear bolts have different length. Please respect the table
bellow to assemble the correct length.
• Pile up the required spacers
• Apply grease and Friction paste where indicated on the illustration bellow.
Align
Thread locker
Friction paste
Grease
Long bolt
Align wahser
Short bolt
• Place the barrel nuts into the adapter following the right orientation
• Chamfered barrel nut to the front
• Slotted side on the outside
Flat at back
Slot outsite
Chamfer at front
Adjust for proper orientation
