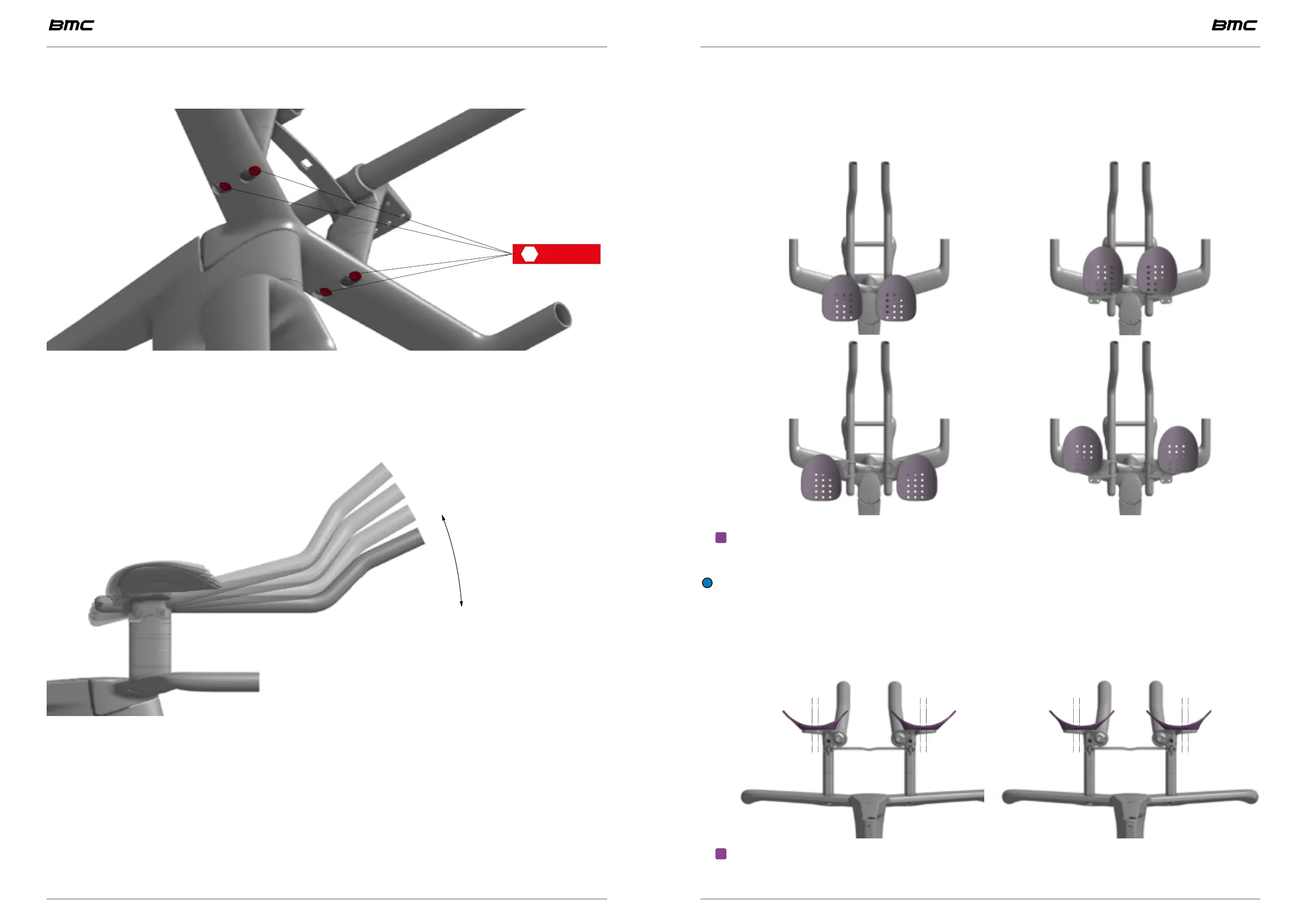

• Install the 4 bolts making sure the longest one is at the front.
4 5 Nm
• Tighten to 5 Nm using a hex 4mm wrench.
Tilt
By adjusting the front and rear bolts, you can adjust the tilt of the entire armrest
assembly from 0° (horizontal) to -15°.
0° to 15°
Armrest installation
• Select the armrests position:
• Fore and aft adjustment: 45mm in 15mm steps
• Width adjustment (c2c): 124, 142, 161, 179, 198, 216, 235, 253mm
Armrests placement options
Short Reach
Narrow Width
Wide Width
Long Reach
INFORMATION: You could invert left and right armrests to tune the armrest width.
Resulting width ranges are:
• Standard: 142, 179, 216, 253
• Reversed: 124, 161, 198, 235
Armrests placement options
Standard orientation Reversed orientation
