Speedmachine Owners Manual
Detailed assembly instructions

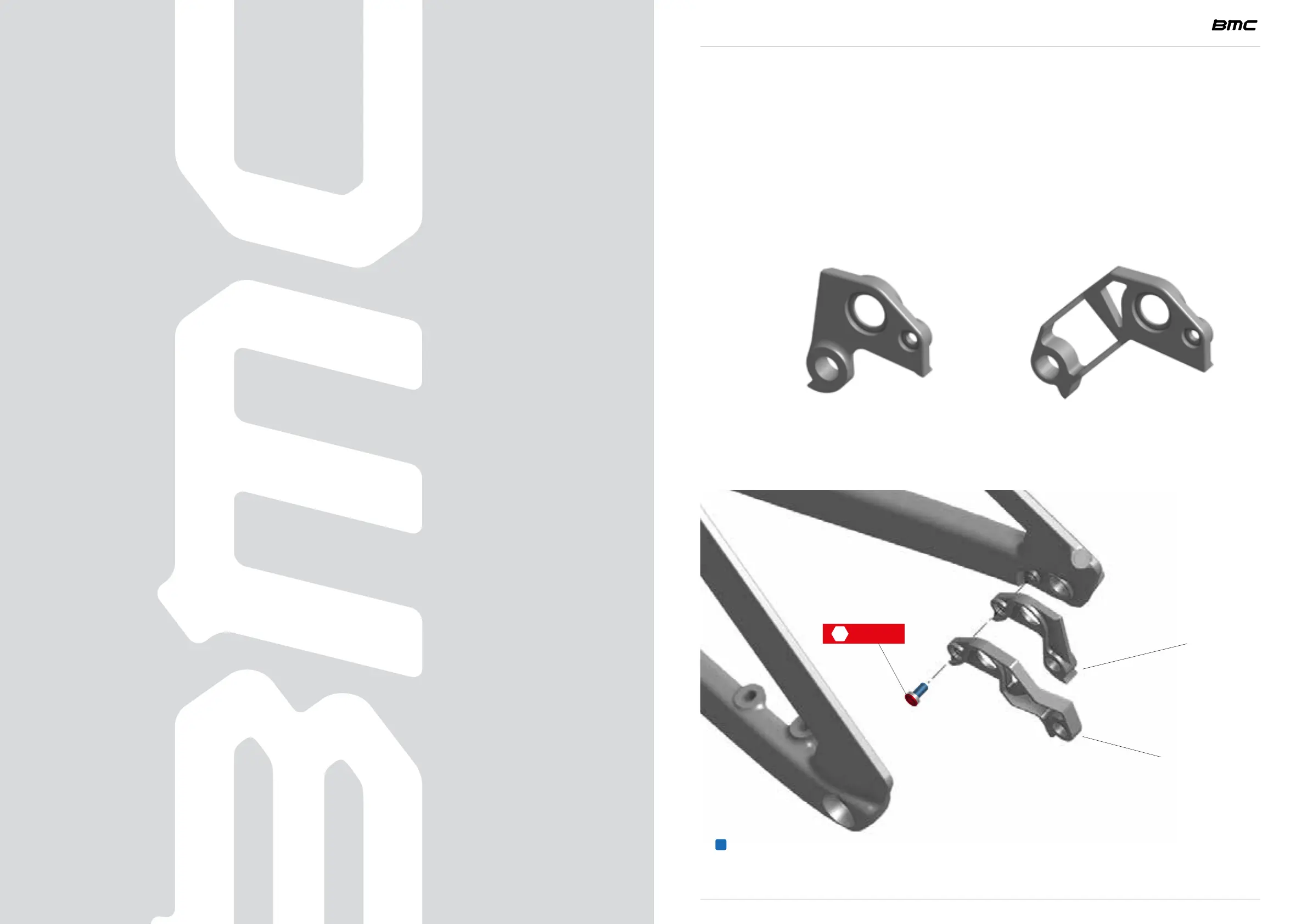

Frame preparation
Rear derailleur hanger installation
• Select the right model of hanger depending on your groupset, and the rear derailleur
design. You can choose between the standard dropout hanger or the direct mount
dropout hanger. The Direct Mount hanger is usually specified for SHIMANO latest
generation of derailleurs.
Standard Direct mount
• Position the selected dropout hanger on the frame dropout and
bolt on the M4x8 bolt using a hex 3mm.
• Tighten to 3 Nm.
Standard
Direct Mount
3 3 Nm
Thread locker
