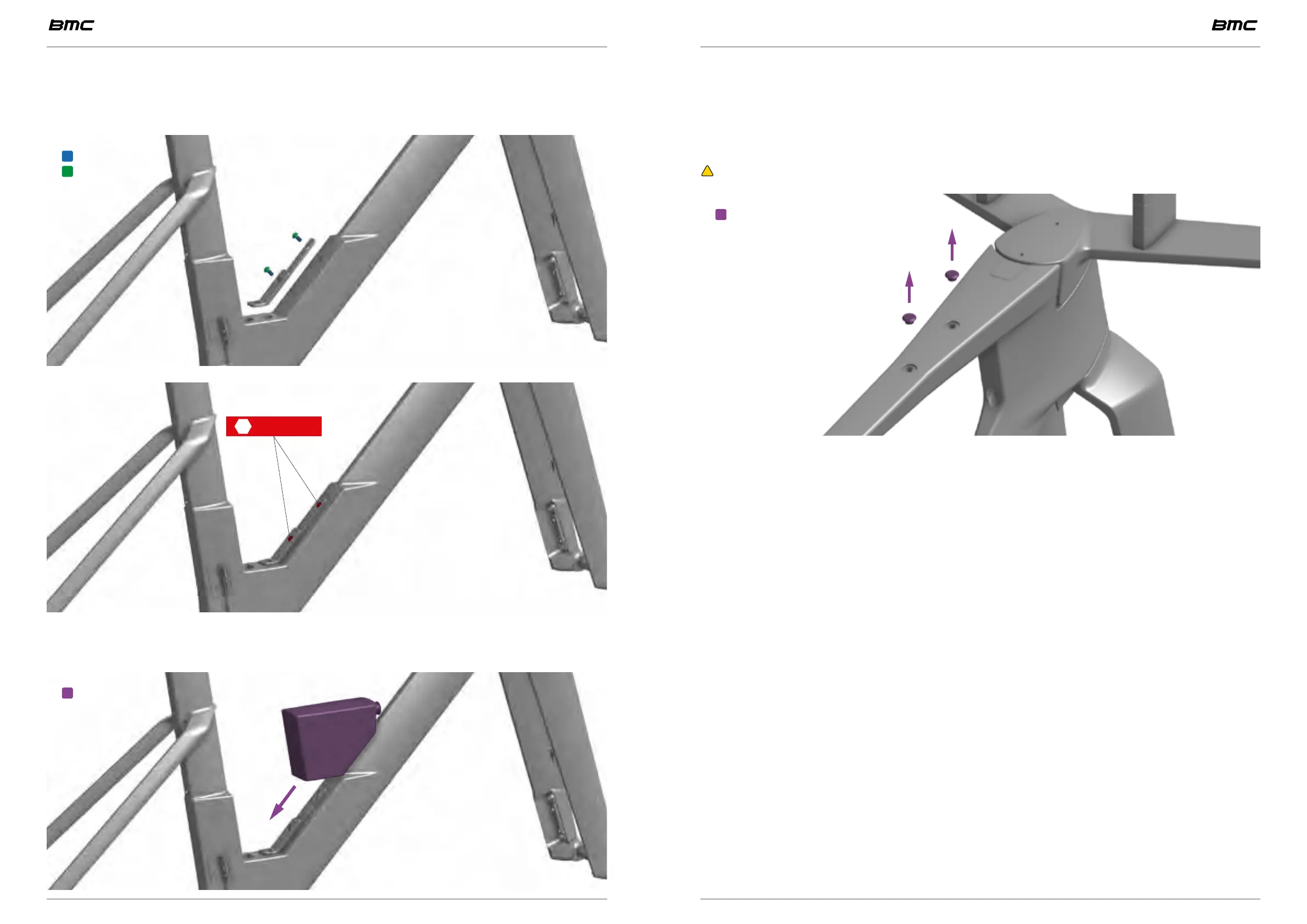

Water bottle installation
• Install the TT Bottle slider using 2 M5x12 bolts.
• Grease the 2 bolts upper surface to reinforce their protection against corrosion.
Grease
Thread locker
3 3 Nm
• Tighten to 3 Nm using a hex 3mm wrench.
Install the water bottle by sliding it over the rail.
Slide down
Top tube storage
The Speedmachine is equipped with top tube threads to allow the mount of a
top tube storage.
The top tube storage threads are covered by plugs.
WARNING: Do not exceed a torque of more than 5Nm with the top tube
storage bolts.
Remove plugs
to access top tube mounts
