Speedmachine Owners Manual

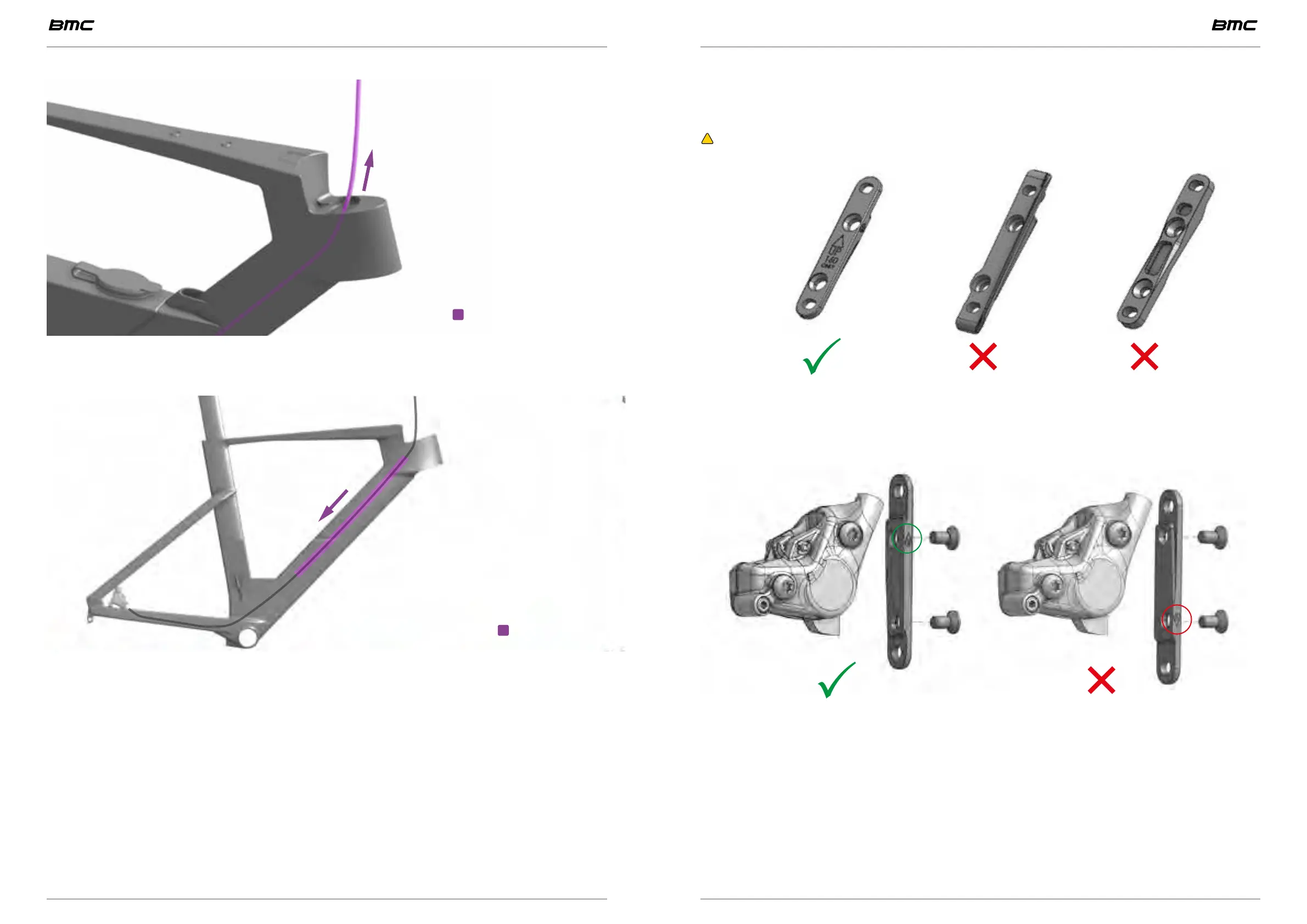

Route through headtube
• Slide the hose into the foam tube and through the head tube. The foam tube
should be slided into the downtube to avoid the brake hose to rattle in the frame.
Insert foam tube
Front brake
The front brake must be installed directly on the specific BMC front bracket adapter.
The Speedmachine is designed for 160mm front rotor only.
WARNING: There are multiple front brake adapter plate designs. Make sure you are
using the part provided with the Speedmachine.
Speedmachine
• Install the front caliper adapter plate onto the front caliper.
• Make sure the brake mount is in the correct position. The “UP” mark must face up
and out, as shown in the illustration below.
• Torque the countersunk bolts to the brake caliper manufacturer’s recommendation.
• Route the rear brake hose through the fork
• Install the front brake adapter to the fork mount using the 2 M5x14 bolts.
