Make sure the ground is level
and firm and place the mo-
torcycle on a suitable auxiliary
stand.
with centre stand
OE
Make sure the ground is level
and firm and place the motor-
cycle on its centre stand.

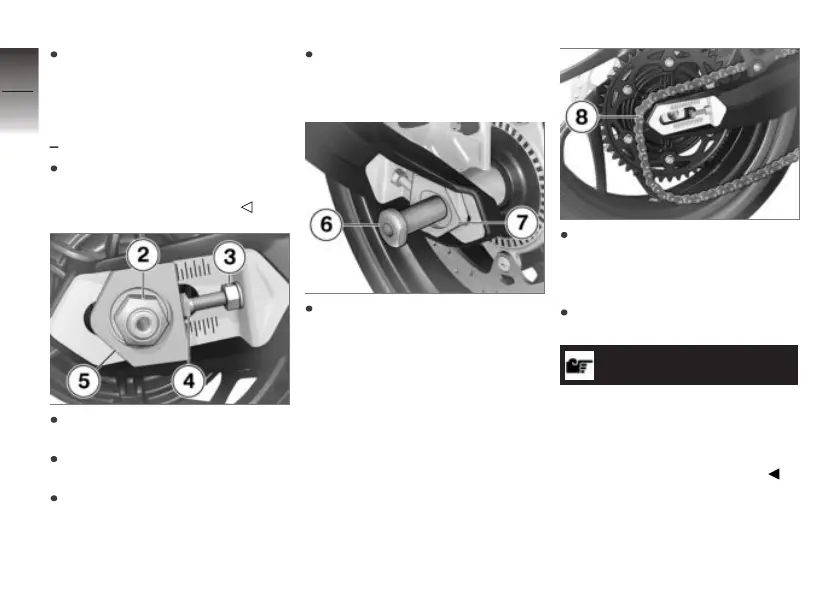

Remove axle nut 2 with
washer.
Slacken locknuts 3 on left and
right.
Slacken adjusting screws 4 on
left and right.
Remove adjusting plate 5 and
push the axle to the left as far
as it will go.
Remove quick-release axle 6
and remove adjusting plate 7.
Roll the rear wheel as far
forward as possible and
disengage chain 8 from the
sprocket.
Roll the rear wheel back until it
is clear of the swinging arm.
NOTICE
The sprocket and the spacer
sleeves on left and right are
loose fits in the wheel. Take care
when removing to ensure that no
parts are damaged or mislaid.
9
108
z
