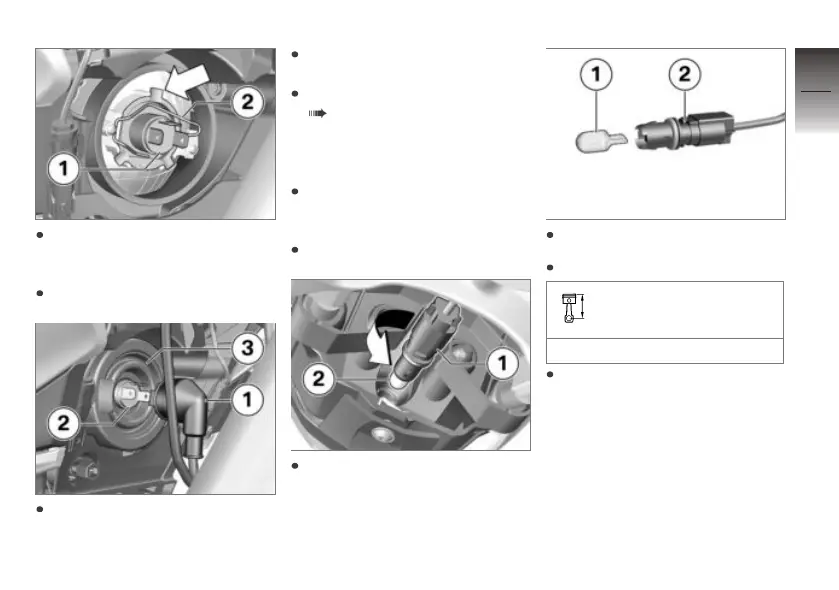

Insert bulb 1 making sure that
the lug is correctly positioned
(arrow).
Close and lock spring clips 2.
Install cover 3.
Connect rubber cap with
plug 1 to bulb 2.
Securing light-top shield
( 92).
Replacing bulb for parking
light
Make sure the ground is level
and firm and place the motor-
cycle on its stand.
Switch off the ignition.
Turn plug 1 with bulb 2
counter-clockwise and remove
it from the headlight.
Remove bulb 1 from socket 2.
Replace the defective bulb.
Bulb for parking light
W5W / 12 V / 5 W
Use a clean, dry cloth to hold
the bulb in order to keep the
glass free of foreign matter.
9
113
z
Maintenance
