AIR CONDITIONING
RELAY, MOTRONIC
BM
BMW
BMWBMW
Z3
K48
LOW BEAM LIGHT
RELAY
X45
11 12 13
456 78 9
38
37
35
34
33
32
31
42
41
40
39
43
44

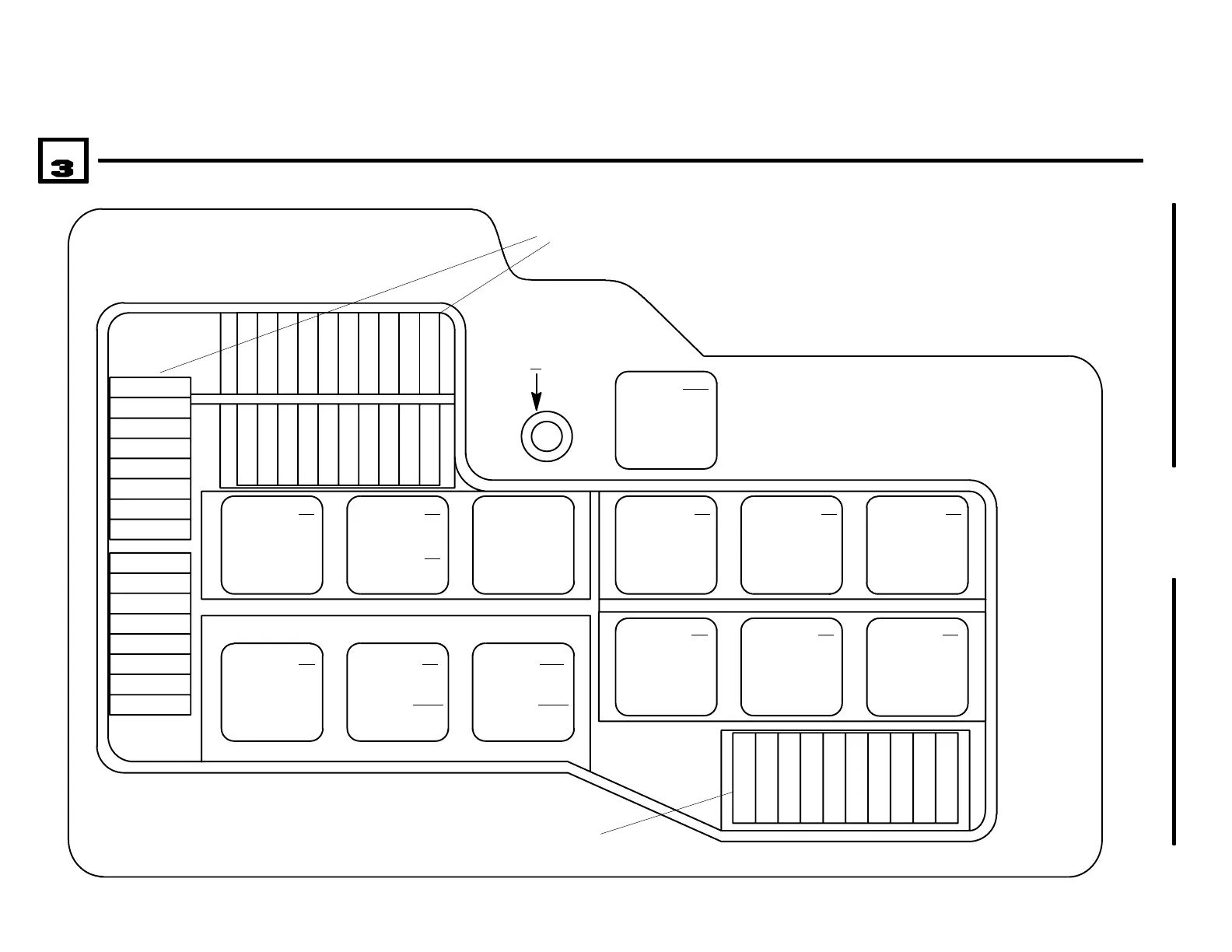

FRONT POWER DISTRIBUTION BOX
0670.0 POWER DISTRIBUTION CHART
04/99
0670.0Ć
1998
00
K2
HORN RELAY
K47
FRONT FOG LIGHT
RELAY
K16
HAZARD FLASHER
RELAY
K4
BLOWER RELAY
K10
ABS RELAY
K75
ABS PUMP MOTOR
RELAY
K22
HIGH SPEED
RELAY
K19
COMPRESSOR
CONTROL RELAY
K21
NORMAL SPEED
RELAY
X56
X44 X64 X58
X63 X54 X1161
X53 X51 X52
46
45
36
12 3 10
14 15 16 17 18 19 20
21 22 23 24 25 26 27 28 29 30
FUSES
FUSES
X0
K9
UNLOADER RELAY,
TERMINAL 15
K6304
SECONDARY AIR
PUMP RELAY
X6304
4–CYLINDER
X50
K94 *
ENGINE CONTROL
RELAY (ABS/ASC)
X18766
K95 *
VALVE RELAY
(ABS/ASC)
X18767
M ROADSTER
