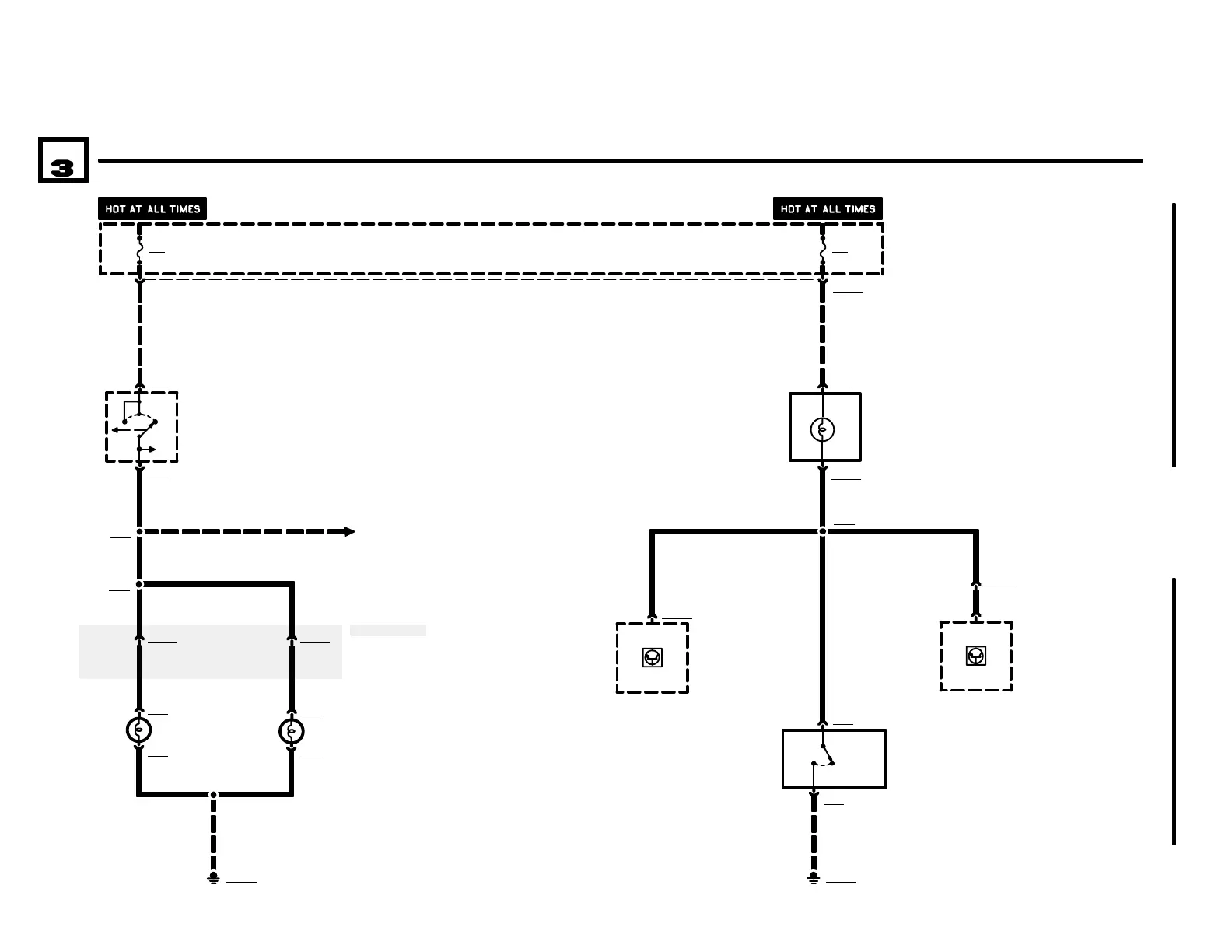

6320.0 LICENSE PLATE/LUGGAGE COMPARTMENT LIGHTS
04/99
FUSE DETAILS
0670.3
X5038
S8
LIGHT SWITCH
0) OFF
1) PARK LIGHTS
ON
2) HEADLIGHTS
ON
X196
1 GR/SW
1 GR/SW
2
E43
LEFT LICENSE
PLATE LIGHT
1
.75 BR
X709
X709
2
E44
RIGHT LICENSE
PLATE LIGHT
1
.75 BR
X710
X710
X461
GROUND
DISTRIBUTION
0670.4
LIGHT SWITCH
DETAILS
6300.0
P90
FRONT POWER
DISTRIBUTION BOX
5 X503
.75 GR/SW
.75 GR/SW
14
6
F37
10A
F33
10A
FUSE DETAILS
0670.3
X13006
X10018
E32
LUGGAGE
COMPARTMENT
LIGHT
1 X711
1 X712
12
X18080
1
.75 BR/WS
N12w
ANTI–THEFT
CONTROL MODULE
(ALPINE)
11 X13025
.5 BR/WS
.5 BR/WS
6320.0Ć
1998
00
X465
S826
LUGGAGE
COMPARTMENT
LIGHT SWITCH
1) REAR LID
CLOSED
2) REAR LID
OPEN
02
1
A104
BODY
ELECTRONICS
CONTROL MODULE
(ZKE IV)
14 X13254
.75 BR/WS
2 X711
GROUND
DISTRIBUTION
0670.4
X13006
.75 GR/SW
.75 GR/SW
3 X11402 3 X11403
M ROADSTER
