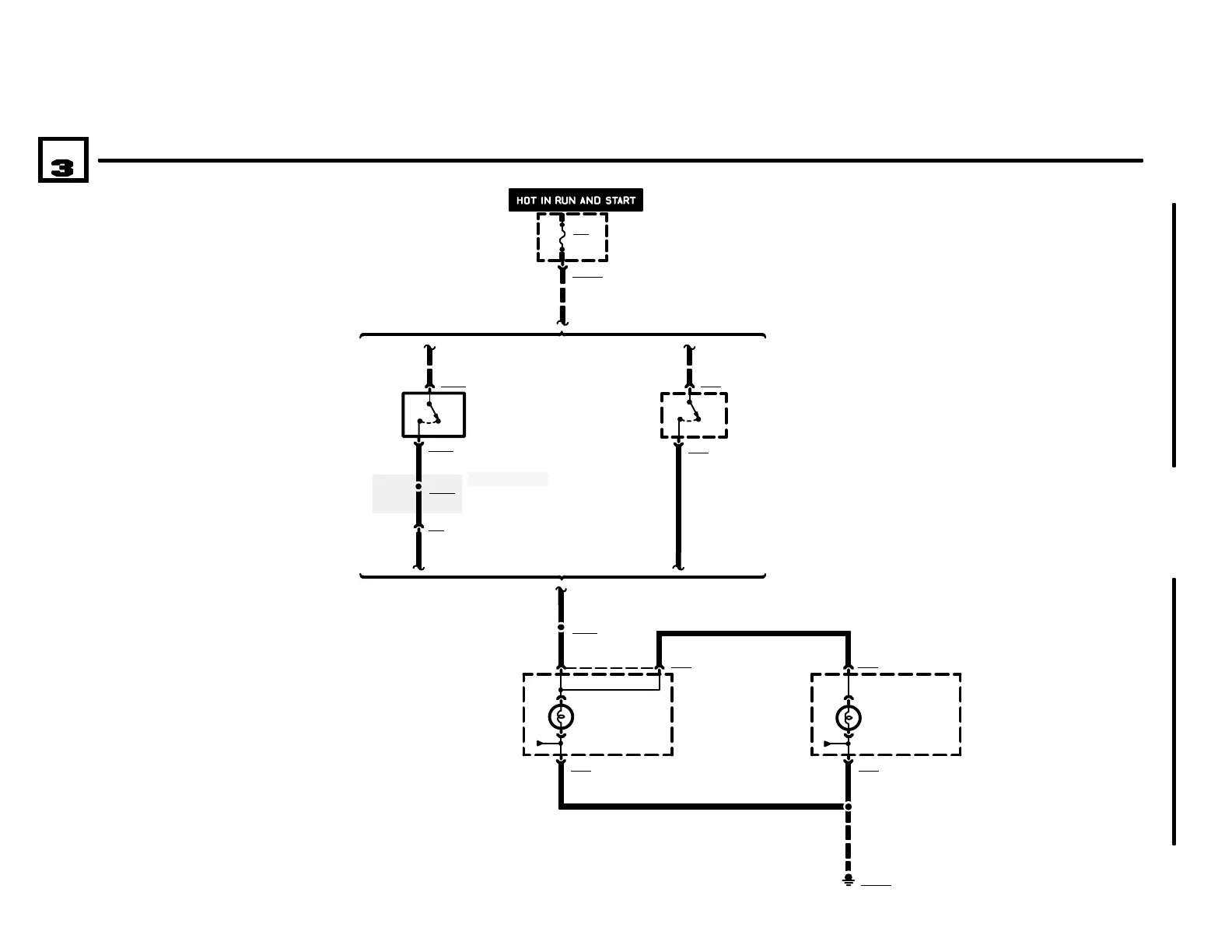

6322.0 BACK UP LIGHTS
04/99
6322.0Ć
1998
00
P90
FRONT POWER
DISTRIBUTION BOX
12
X10017
F26
10A
3 X511
2 X511
X319
20
S3
AUTOMATIC
TRANSMISSION
RANGE SWITCH
0) OFF (LOW)
2) CLOSED IN
REVERSE
FUSE DETAILS
0670.3
WITH EGS
H27
LEFT BACK UP
LIGHT
5 X319
X318
H28
RIGHT BACK UP
LIGHT
X318
1 BL/GE
1 BL/GE
.75 BL/GE
E16
LEFT REAR LIGHT
ASSEMBLY
E17
RIGHT REAR LIGHT
ASSEMBLY
1.5 BR 1.5 BR
X13006
R
S8511
REVERSING LIGHT
SWITCH
1) OPEN
2) CLOSED IN R
1 X8511
2 X8511
2
1
10 X20
1 BL/GE
1 BL/GE
1
15
WITHOUT EGS
GROUND
DISTRIBUTION
0670.4
1 BL/GE
X1169
1 BL/GE
X8074
