BMW Z3 E37 1998 - Component Location Views

paragon.myvnc.com
BMBMWBMWBMW
Z3
A35y
BOARD
COMPUTER
(BC – LOW)
X10245
X18349

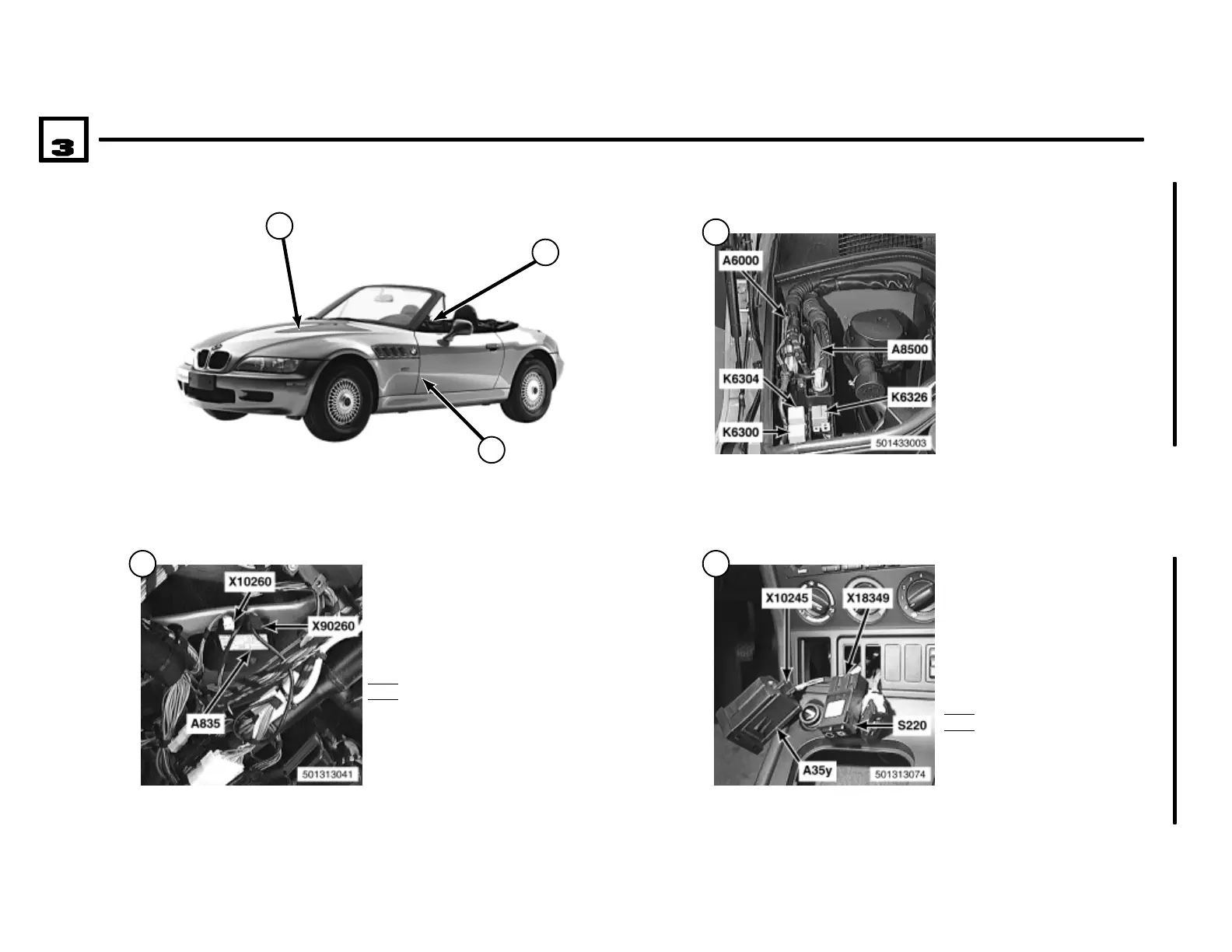

COMPONENT LOCATION VIEWS
ELECTRICAL CONTROL MODULE LOCATIONS
04/99
7100.0Ć
1998
01
A6000
ENGINE CONTROL
MODULE (DME)
A835
TRANSMITTER
MODULE (EWS II)
X10260
A8500
TRANSMISSION
CONTROL MODULE
(EGS)
S220
AIR CONDITIONING/
RECIRCULATING
SWITCH ASSEMBLY
K6300
ENGINE CONTROL
MODULE RELAY
K6326
UNLOADER RELAY,
TERMINAL 15
X90260
1
2
2
3
3
K6304
SECONDARY AIR
PUMP RELAY
1
