BLT4102 Product Manual
11

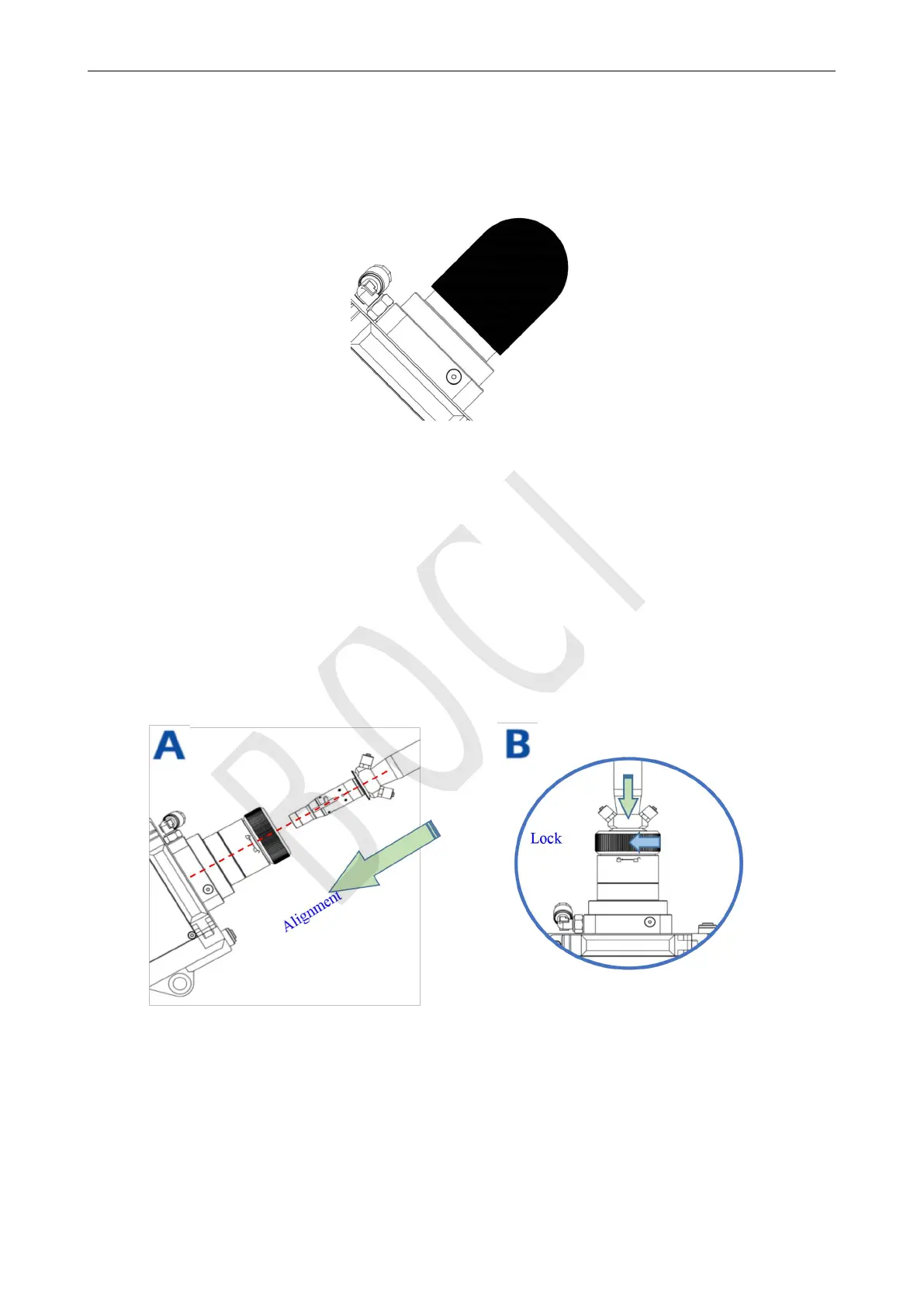

5.2.5 Tear off the protective film/remove the protective cap
Remove the special protective cap/protective plug for the optical fiber interface on the cutting head.
5.2.6 Insert the laser fiber interface into the cutting head
Align the fiber optic plug with the red dot, insert it into the unlocked fiber optic port, and ensure that it is inserted
as far as it will go. Rotate the lock cap until it tightly locked.
