2.Gas Interface
1
Installation connection: cutting gas 1, nozzle cooling gas 2
Notice:
 The maximum pressure of cutting gas is 25bar (2.5Mpa).
 The cutting gas quality shall meet the requirements of gas quality in accordance with ISO
8573-1:2010: solid particles - class 2, water - class 4, oil - class 3. The purer the cutting gas, the
longer the life of the protective window.
 The cutting gas pipe diameter (outer diameter) is 10mm, and the nozzle cooling gas pipe diameter
(outer diameter) is 6mm.

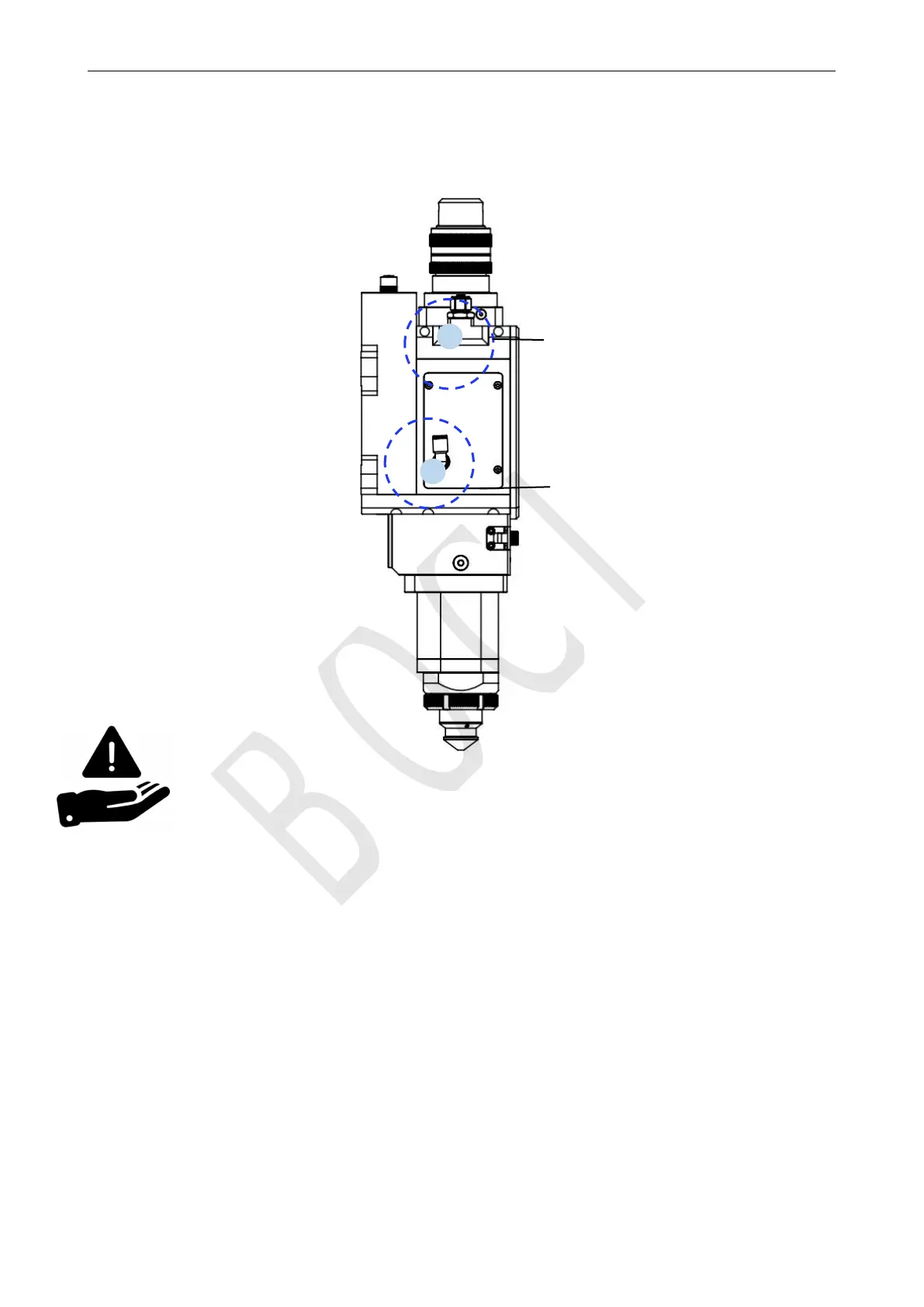

Cutting gas interface
Nozzle cooling gas
connection
1
2
