5.2.7 Wrap and seal

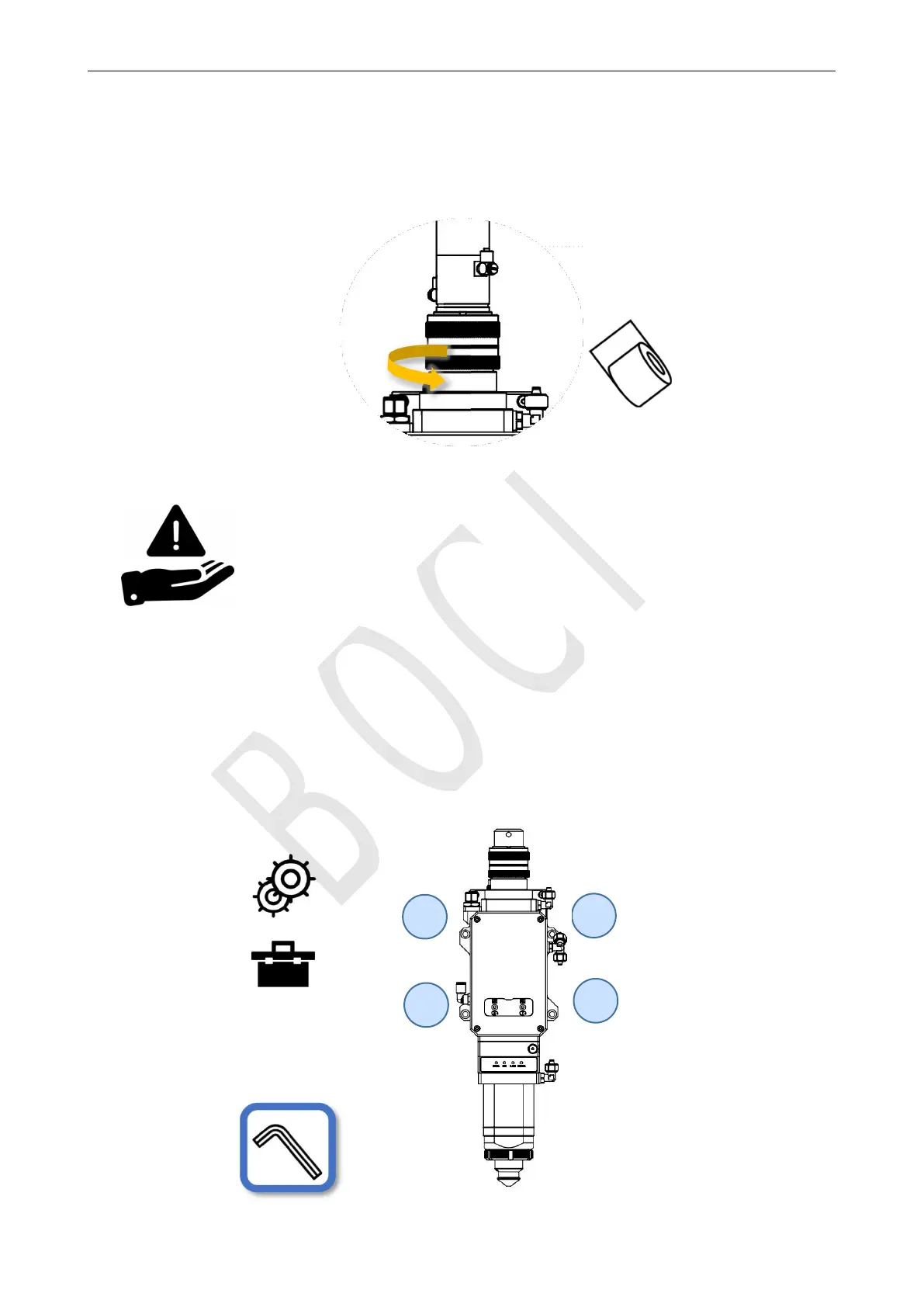

After inserting the optical fiber, wrap and seal the interface between the optical fiber and the cutting head with
tape.
Tape wrap seal
5.2.8 Mount the cutting head on the backplane
The cutting head can be installed on the Z-axis backplane of the machine tool through four screws A, B, C, and D.
When fixing the cutting head on the machine, it must be ensured that the cutting head is locked and there is no obvious
movement.
A
B
C
D
Notice:
 To achieve affective sealing, it is recommended to wrap the tape at least
three times for sealing.
