1.Product Description
1.1 Product View

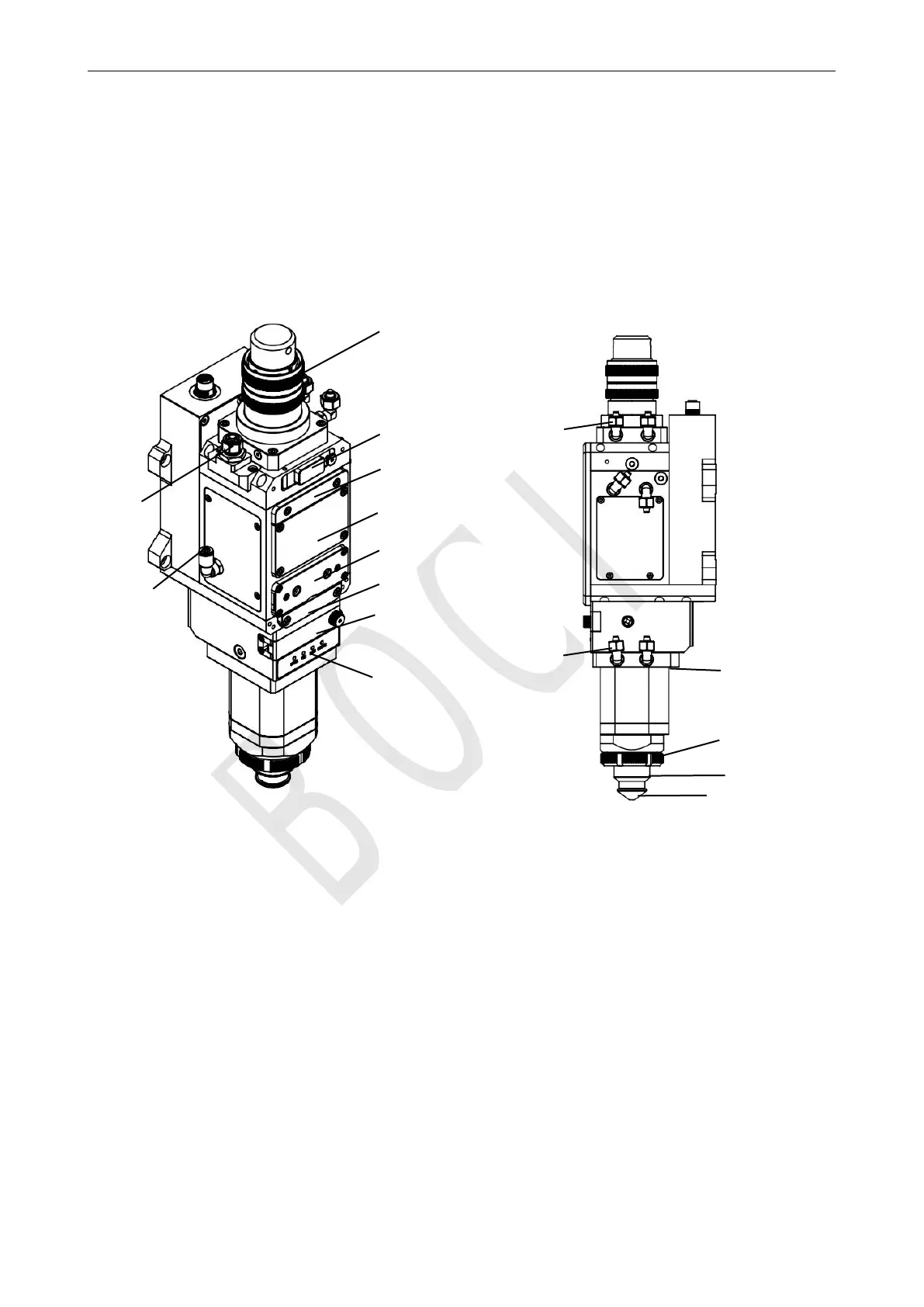

Product View (Structure and Interface Description)
1. Laser fiber; 9. Nozzle cooling air interface;
2. 1
st
Upper protective window; 10. Cutting gas interface;
3. 2
nd
Upper protective window; 11. Cooling water outlet;
4. Collimation unit; 12. Cooling water inlet;
5. Focusing unit; 13. Protective Screw;
6. 2
nd
Lower protective window; 14. Ceramic body lock ring;
7. 1
st
Lower protective window; 15. Ceramic body;
8. Working indicator; 16. Nozzle;
1
2
10
3
4
5
6
9
8
7
12
11
15
16
13
14
