BOCI BLT641 - Bus System Wiring Diagram

BLT641 Product Manual
10
4.1 Bus system
Hypcut
IPC
master
station
Slave
Station
HyPanel
BCS210E
Power supply
220V AC

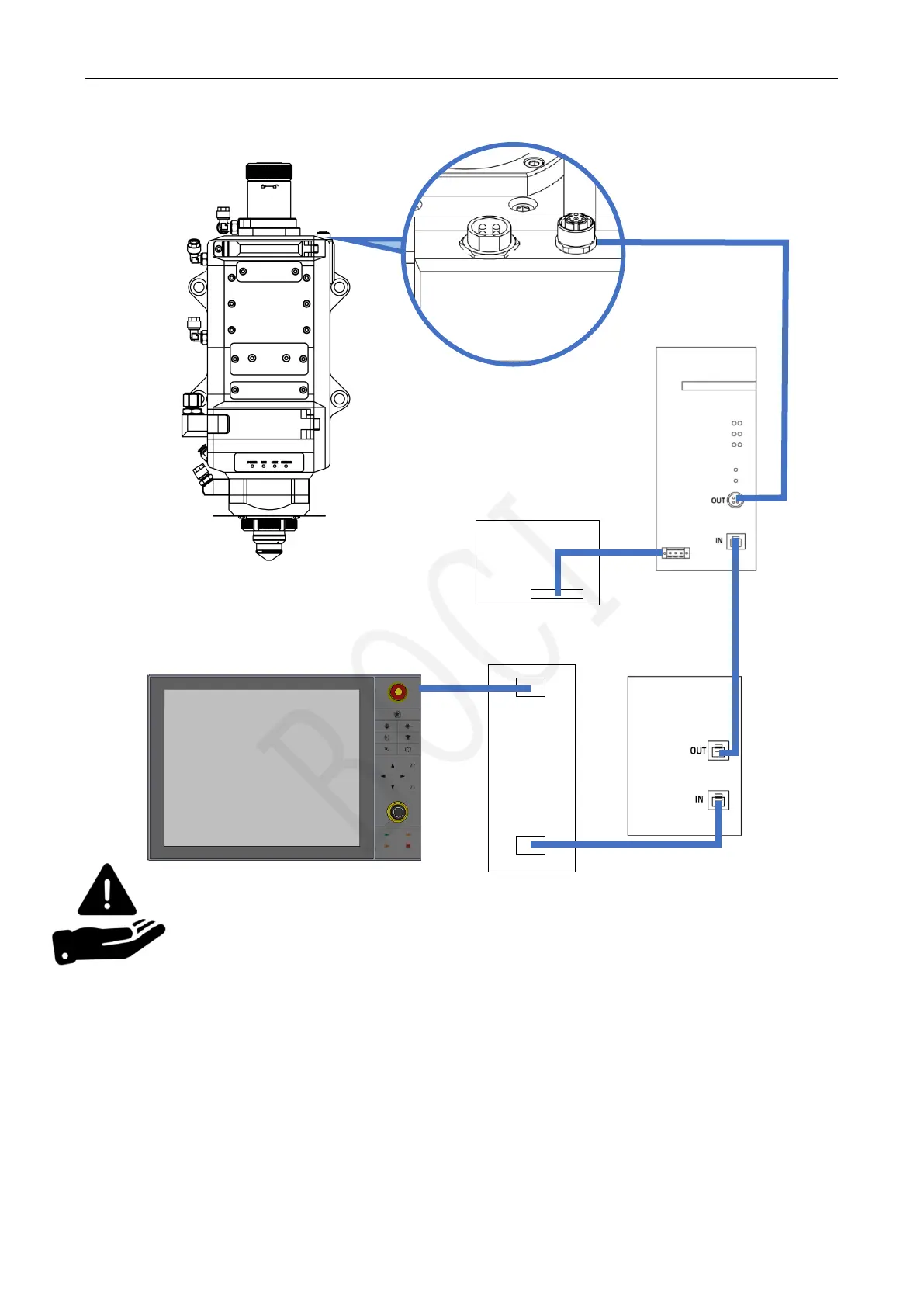

BLT641 Cutting head installation
wiring diagram
PWE Line
 Notice:
 The above wiring operations should only be performed by trained
and professional personnel.
 When the cutting head is connected to the BCS210E, the BCS210E
must be powered off.
