5.2.8 Mount the cutting head on the backplane
The cutting head can be installed on the Z-axis backplane of the machine tool through four screws A, B, C, and D.
When fixing the cutting head on the machine, it must be ensured that the cutting head is locked and there is no obvious
movement.
Notice:

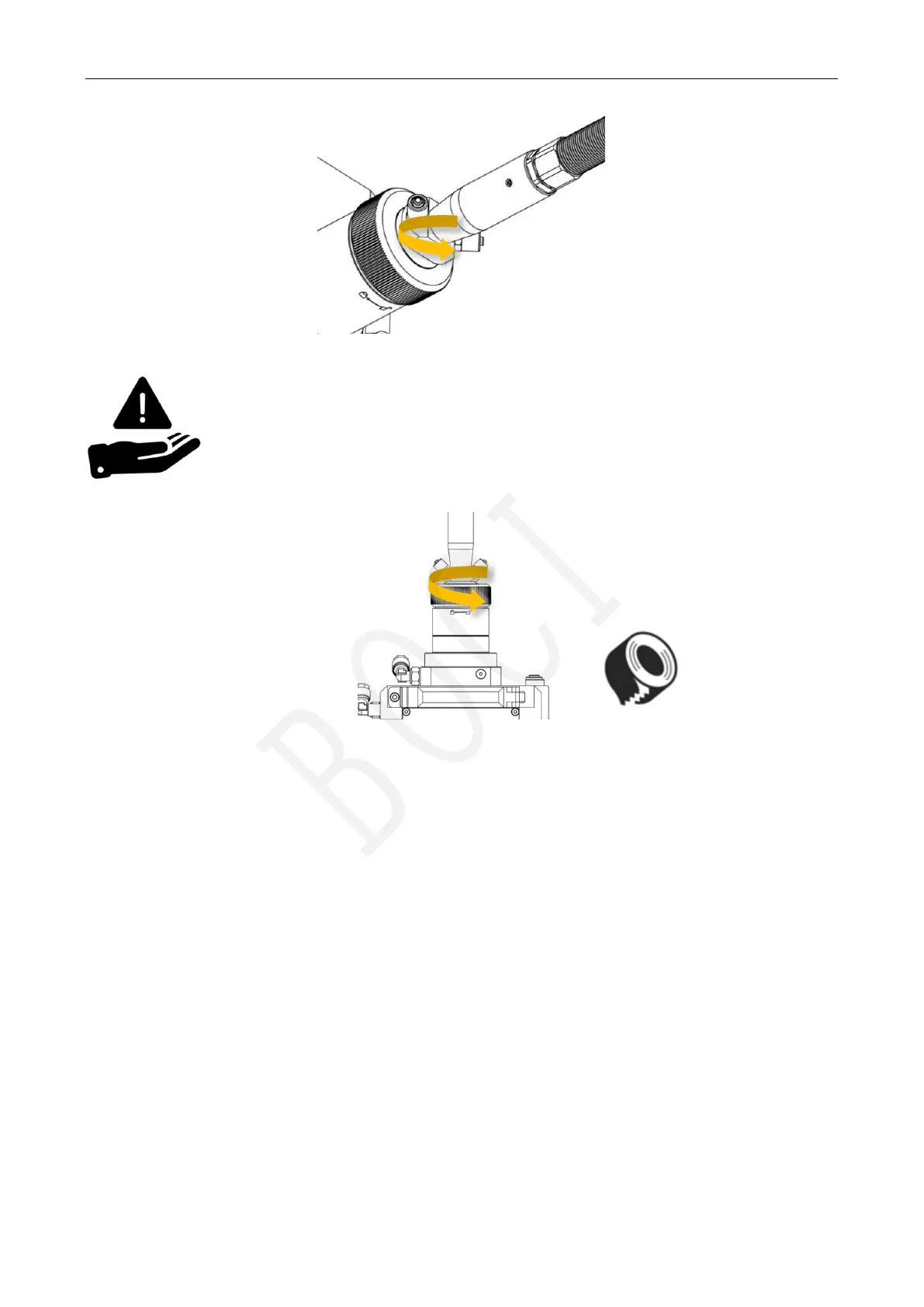

 To achieve affective sealing, it is recommended to wrap the tape
at least three times for sealing.
