Appendix A - Maintenance

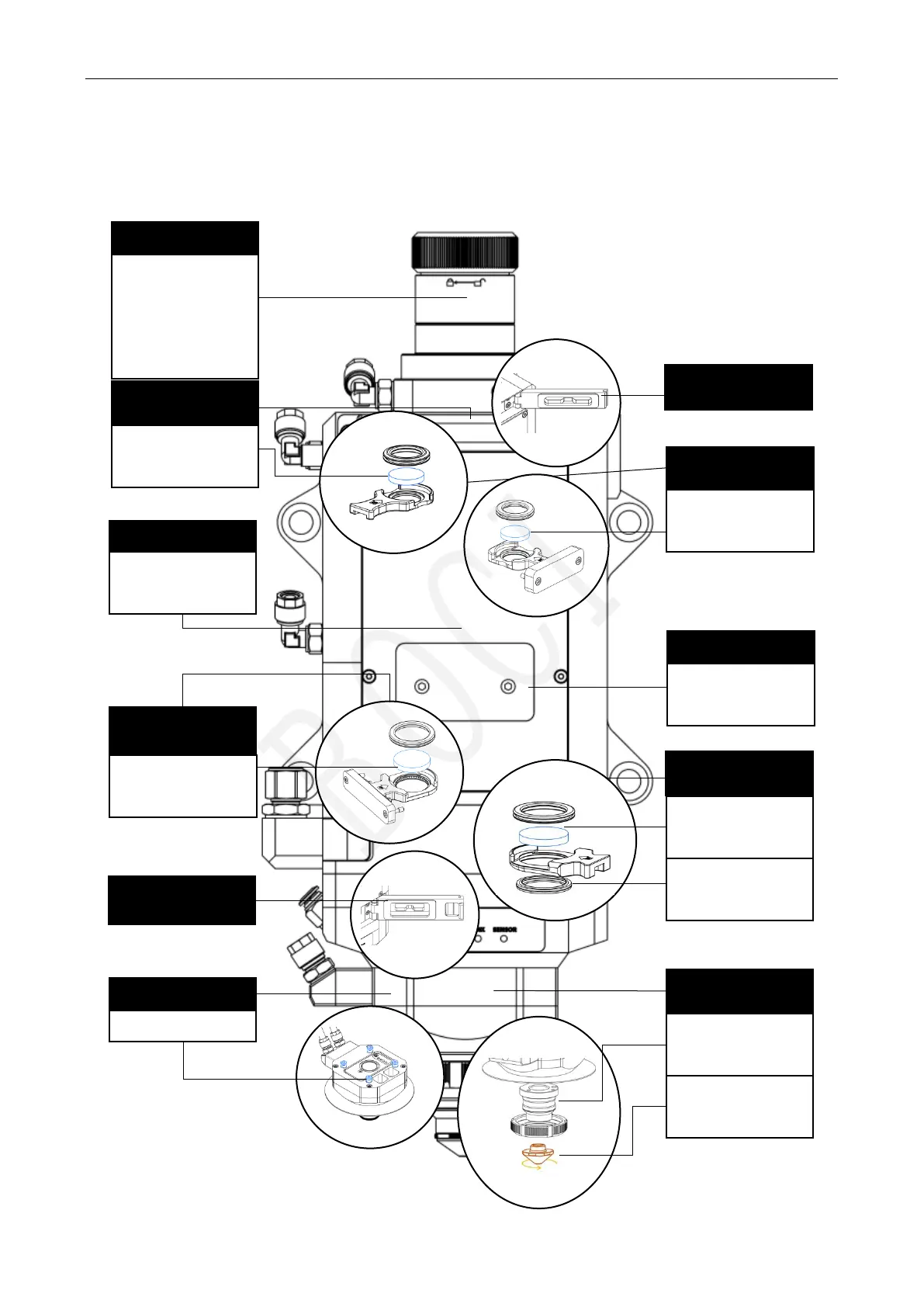

1.1 Schematic diagram of product structure
Fiber Interface
QBH
QD
Q+
ADD
2
nd
Lower Protective Lens
Drawer
2
nd
Lower Protective Lens
D34x5mm
Collimation Drawer Unit
Collimating Length
F100mm
Upper Protective Lens
D21.5x2mm
Upper Protective Lens
Drawer
1
st
Lower Protective Lens
Drawer
1
st
Lower Protective Lens
D34x5mm
Spring Seal
38.5x30.5x3.7mm
2
nd
Upper Protective Lens
Drawer
2
nd
Upper Protective Lens
D25.4x4mm
Focusing Lens Unit
Focusing Length
F200mm
1
st
Lower Protective Lens
Drawer Door
Upper Protective Lens
Door
Nozzle
M11，H15
Capacitive Sensing
Module
Ceramic Part
D41mm，M11
Anti-Collision Set
Anti-Collision Screws
