BOCI BLT641 - Non-Bus System Wiring Diagram

BLT641 Product Manual
11
4.2 Non-bus systems
BCL4500A
Cypcut
IPC
master
station
Slaves
Station
站
Power
24VDC
PWE line
HC plug-in cable

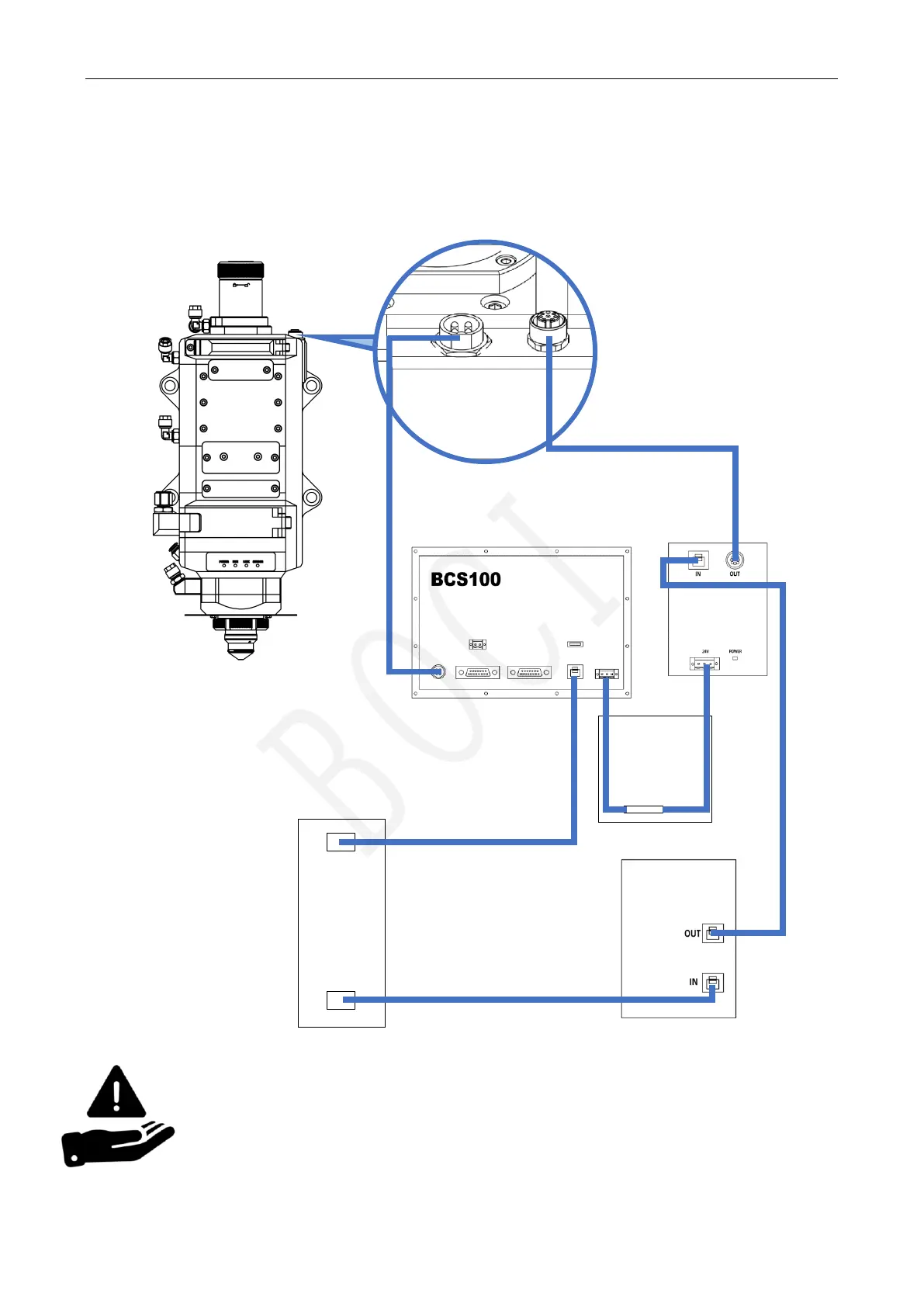

BLT641 Cutting head installation
wiring diagram
Notice:
 The above wiring operations should only be performed by trained and professional personnel.
 When the cutting head is connected to the BCL4500A, the BCL4500A must be powered off.
