Bodet BT6002 - Installation BT6002 (Autonomous Wired)

21
VII - Installation BT6002 (Autonomous Wired)
IMPORTANT: solution available only with the BT6000 version of the shot clock keyboard.

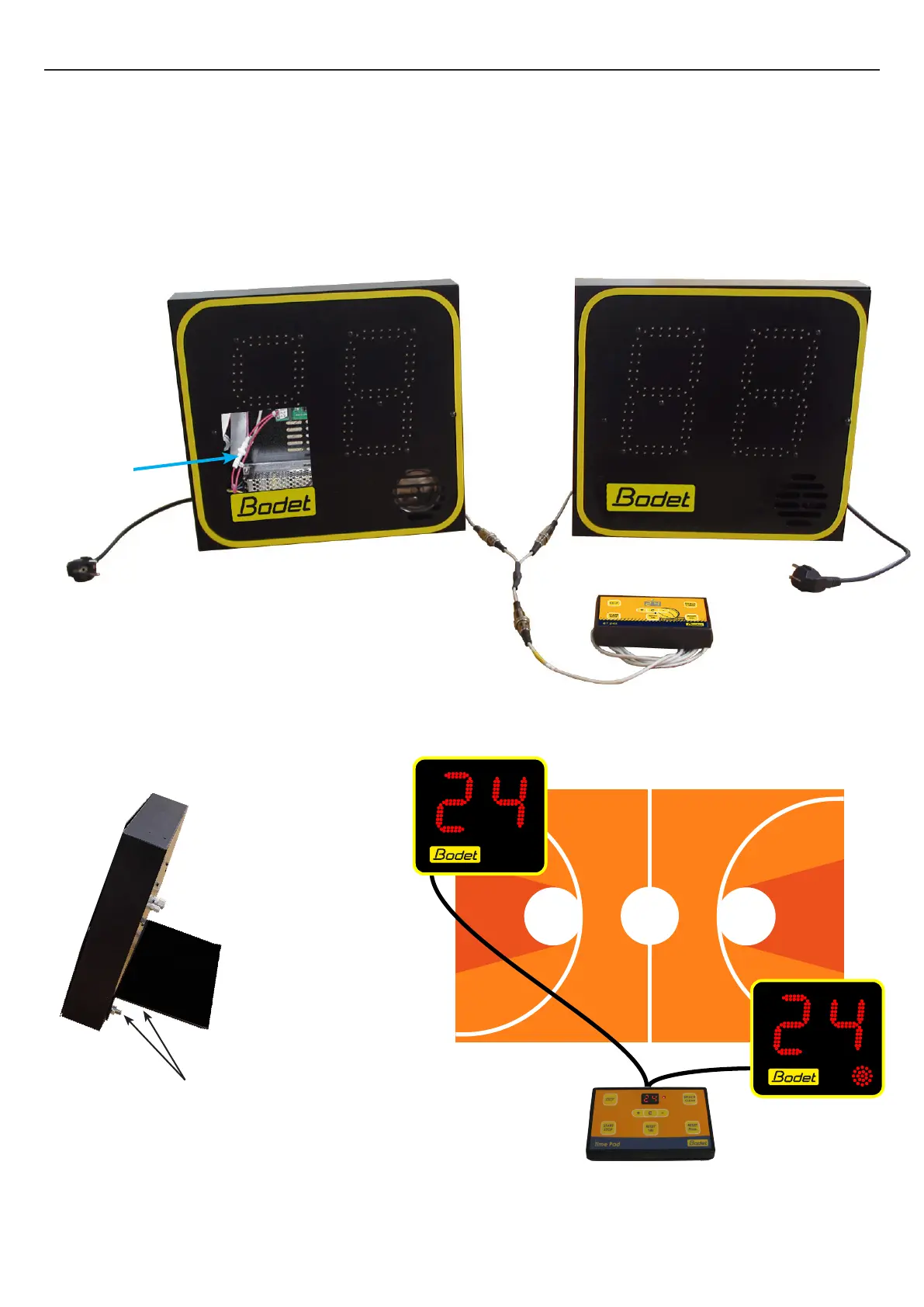

1/ Connect the shot clock keyboard to the DIN plug of the spliting cable.
2/ Connect each BT6002 at the other ends of the spliting cable.
3/ Connect the power cords of the BT6002.
Nota 1 : The horn is present on only one BT6002 panel.
Nota 2 : The control cables of the 2 BT6002 are of dierent length. (see illustration).
Shot clock keyboard
230V AC
Spliting
cable
BT6002
BT6002
Fuse
20m cable
33m cable
230V AC
To use the panels standing on
the ground,mount the bracket
on the back of the panel
