25

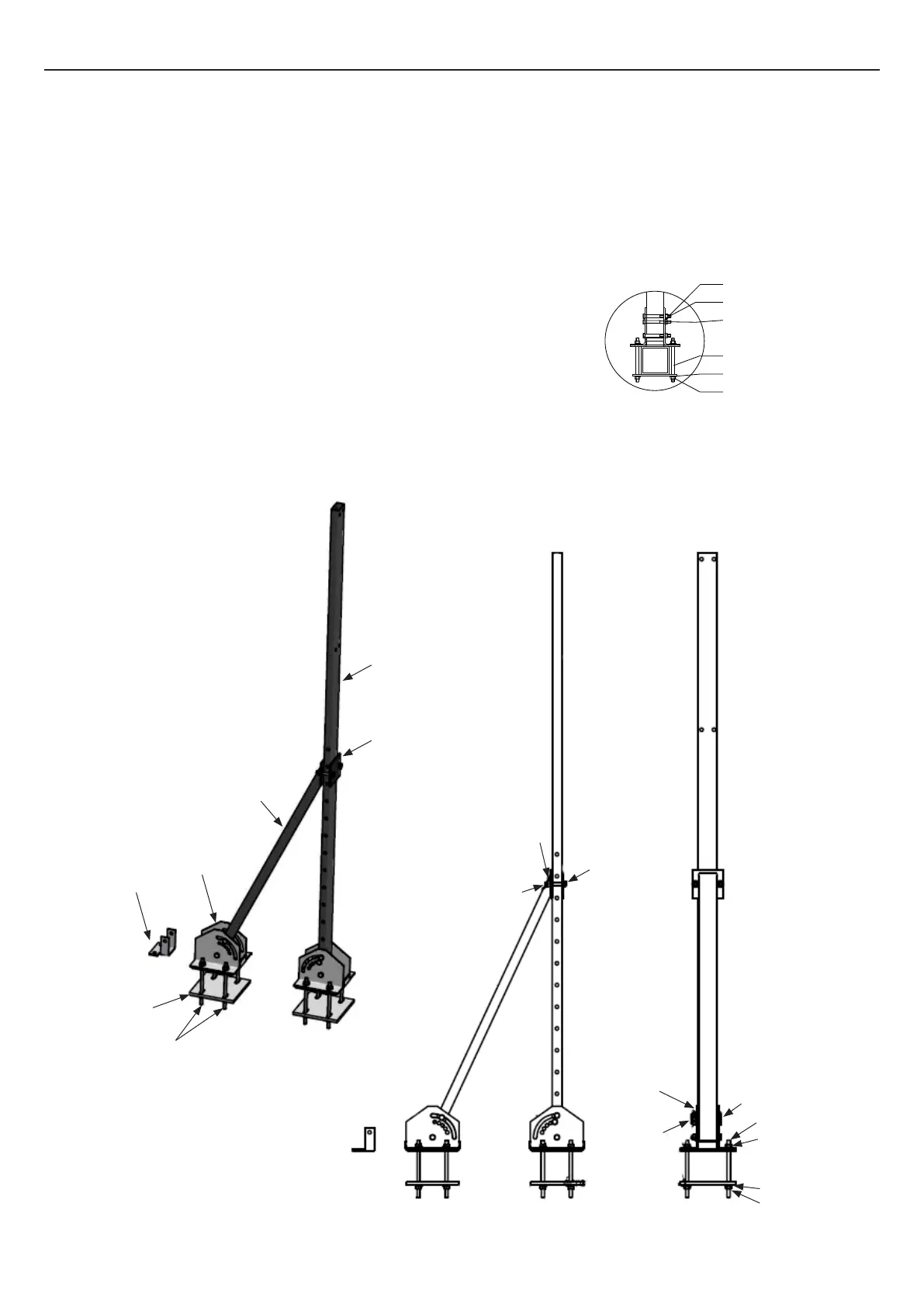

XI - Support Leg xation (BT6008)
After installing the BT6008 scoreboard on its mast, a support leg should be installed to bring more
stability to the assembly.
1/ Fix the support leg on the BT6008’s mast with the xation clamp.
Make sure that the adjustment between the support leg and the BT6008’s mast is correct.
A
HM10x90 Screw
Ø10 Flat washer
HU M10 nut
Threaded shaft M10 l.185
Ø10 Flat washer
HU M10 Nut
2/ Fix the shoe (or the mounting bracket*) with the xation clamp
using 4 threaded shafts, at washers and nuts on the arm of the
basketball goal (A). Do not fully tighten the shoe to be able to
move it along the arm of the basketball goal.
3/ Position the support leg inside the shoe with HM10×90 screw, HU M10 nut and Ø10 at washer.
4/ Fully tighten the shoe on the arm of the basketball goal.
*the mounting bracket is directly xed on the basketball goal using 2 self-drilling screws (not supplied).
or
or
Fixation
clamp
Threaded shafts
(x4)
Fixation clamp
BT6008’s mast
Support leg
Ø10 Flat washer
Ø10 Flat washer (x4)
Ø10 Flat washer (x4)
Ø10 Flat washer
M10 Nut
M10 Nut (x4)
M10 Nut (x4)
M10 Nut
M10x90 Screw
M10x60 Screw
ShoeMounting
bracket
