26

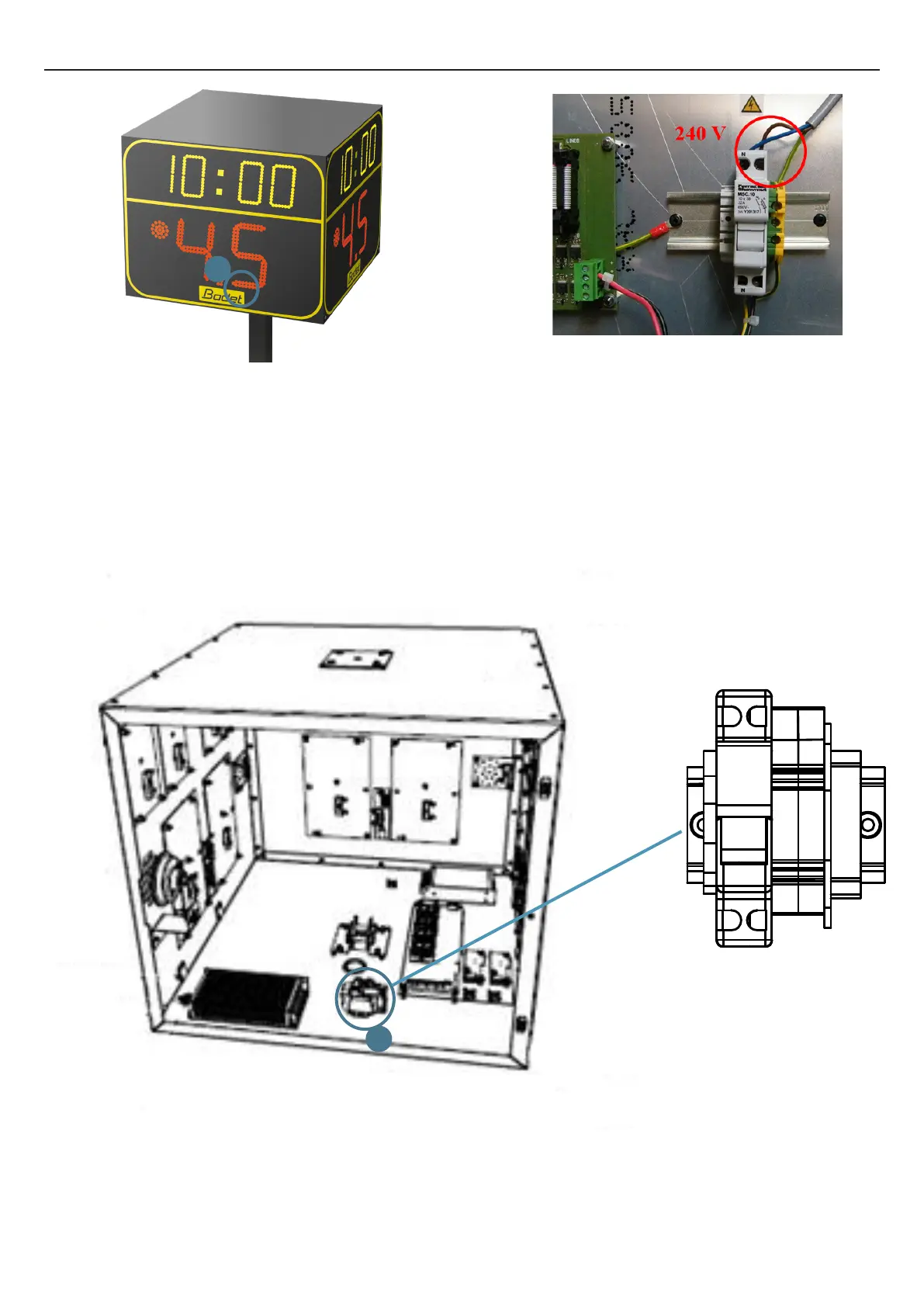

XII - Electrical connections BT6008
1/ Open the access door of each BT6006.
2/ Connect 240V power + Earth to the power supply terminal (A) by passing the cable through the hole
provided for this purpose and attach the cable to the housing to avoid any traction on the terminal
(this 240V power cable is not supllied by BODET).
3/ DIP switches have been set in factory. Check the position of the DIP switches for the 2 BT6008 (see
page 6).
A
Neutral
Phase
Earth
A
