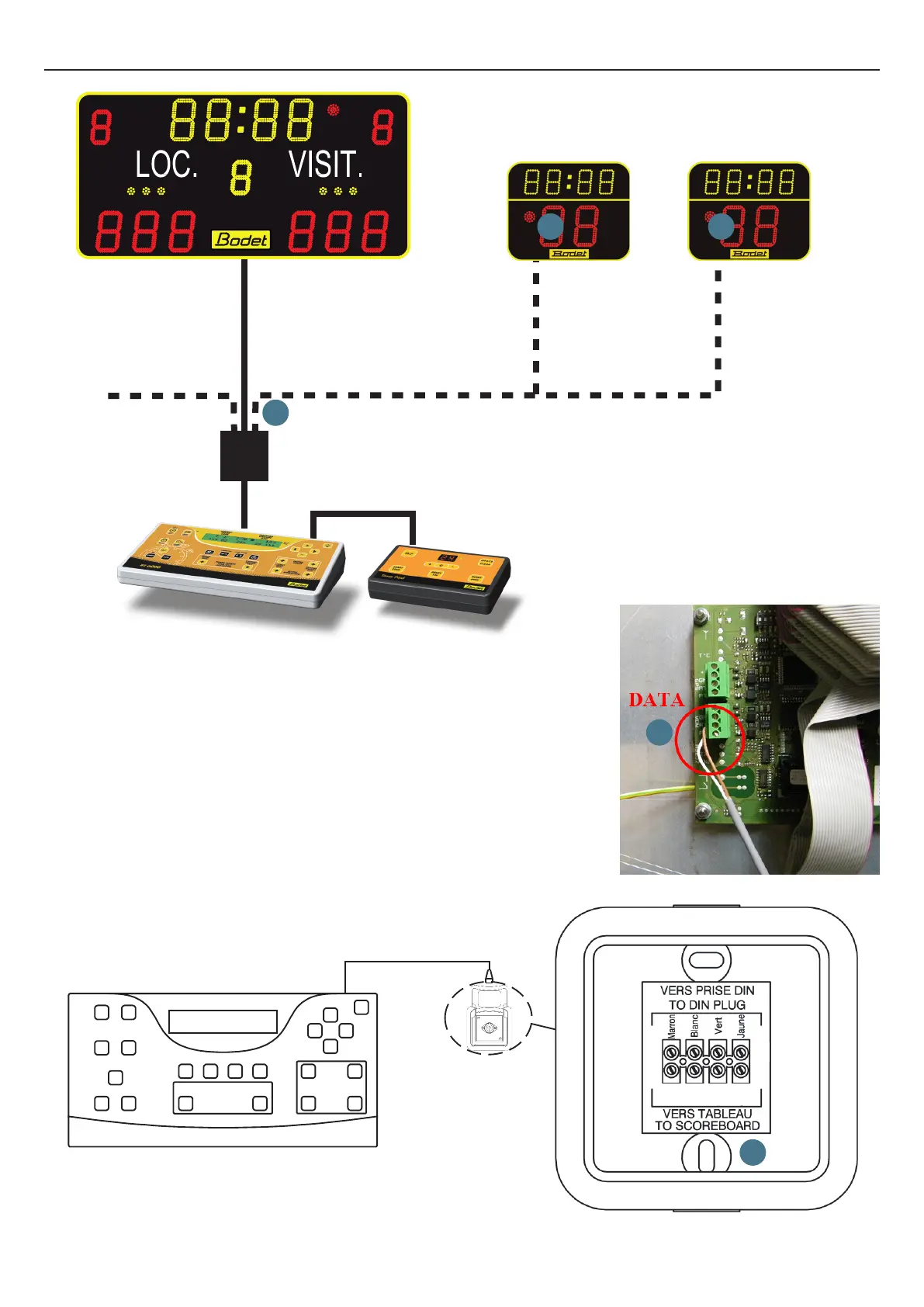

XIV - Wired connection - BT6000 version
1/ For an installation with one or several boards, connect a telephone
cable 1 pair 0.9 mm RT+ and RT- (B) on every board. And connect
the other side of the cable to the connection box (A). Disconnect
the modem cable if necessary. Respect polarity.
2/ Close the access doors and switch on the scoreboard.
A
RT- RT+ GND V+
A
A
BT6000 Main keyboard BT6000 Timepad keyboard
To other
scoreboards
if necessary
BT6000
A A
