XIII - Installation backboard perimeter red LED strip and yellow
LED strip
Backboard perimeter red LED strip (ref: 915896)
1/ Install the tubes of the backboard perimeter LED strip on the inside borders of the backboard using
the square brackets.
2/ Connect the tubes together (A). Leave one connector free (B).
3/ Connect the 4-m cable supplied (shot clock wires
1
) to the free connector (B).
Yellow LED strip (ref: 915898)
1/ Install two tubes of yellow LED strip with the brackets on the backboard perimeter LED strip.
2/ Connect the tubes together (C). Leave one connector free (D).
3/ Connect the 4-m cable supplied (shot clock wires
1
) to the free connector (D).
1
The internal cabling of the shot clock is realized in our factory. For a simple and fast identication
during the installation (connections), the wires are connected.
AA
A
A
A
A
A
C
C
D
D
B
lg. 800
lg. 800
lg. 800
lg. 500
lg. 800
lg. 800
lg. 500

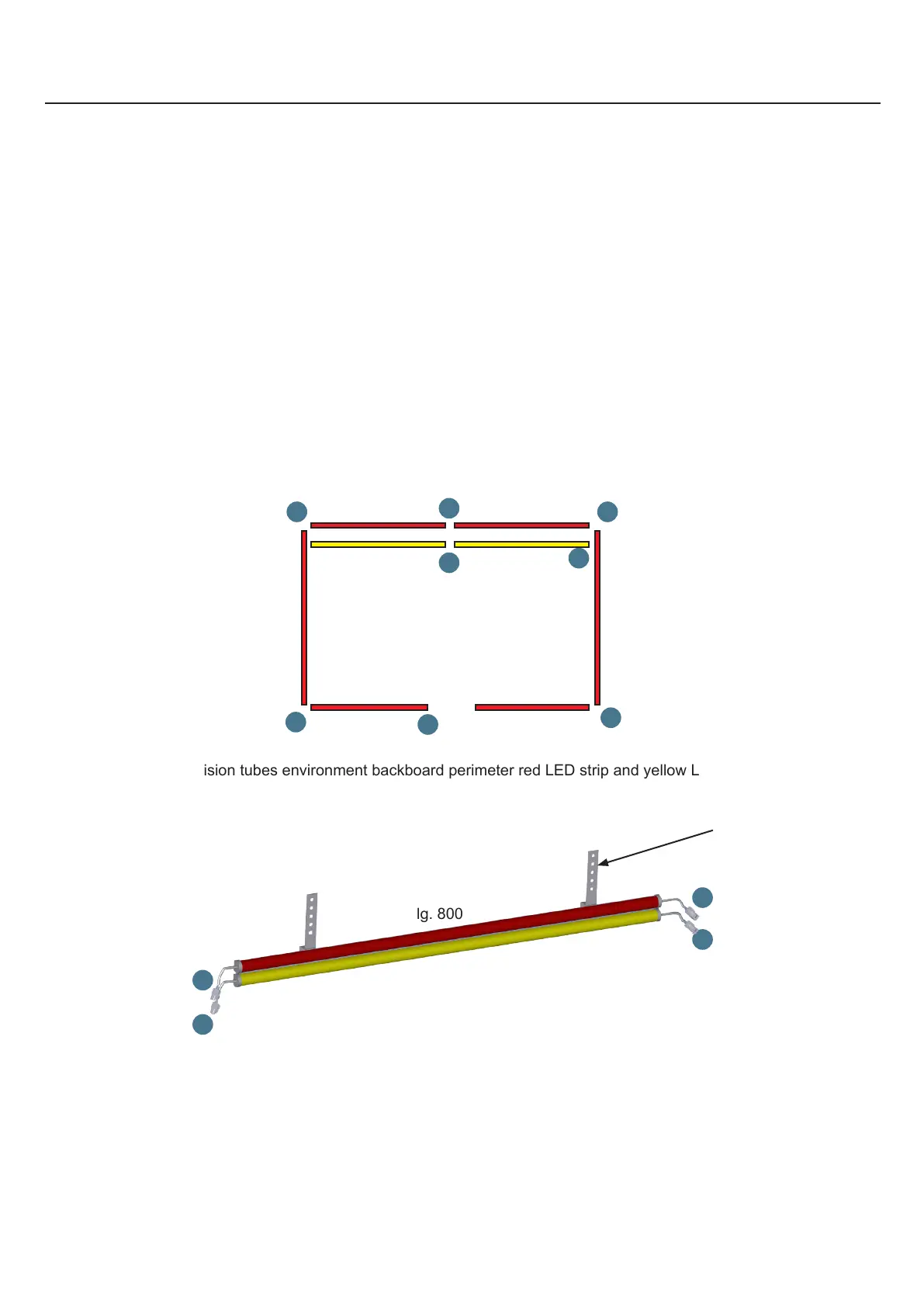

Provision tubes environment backboard perimeter red LED strip and yellow LED strip
Square brackets
