Bodet SIGMA H User Manual

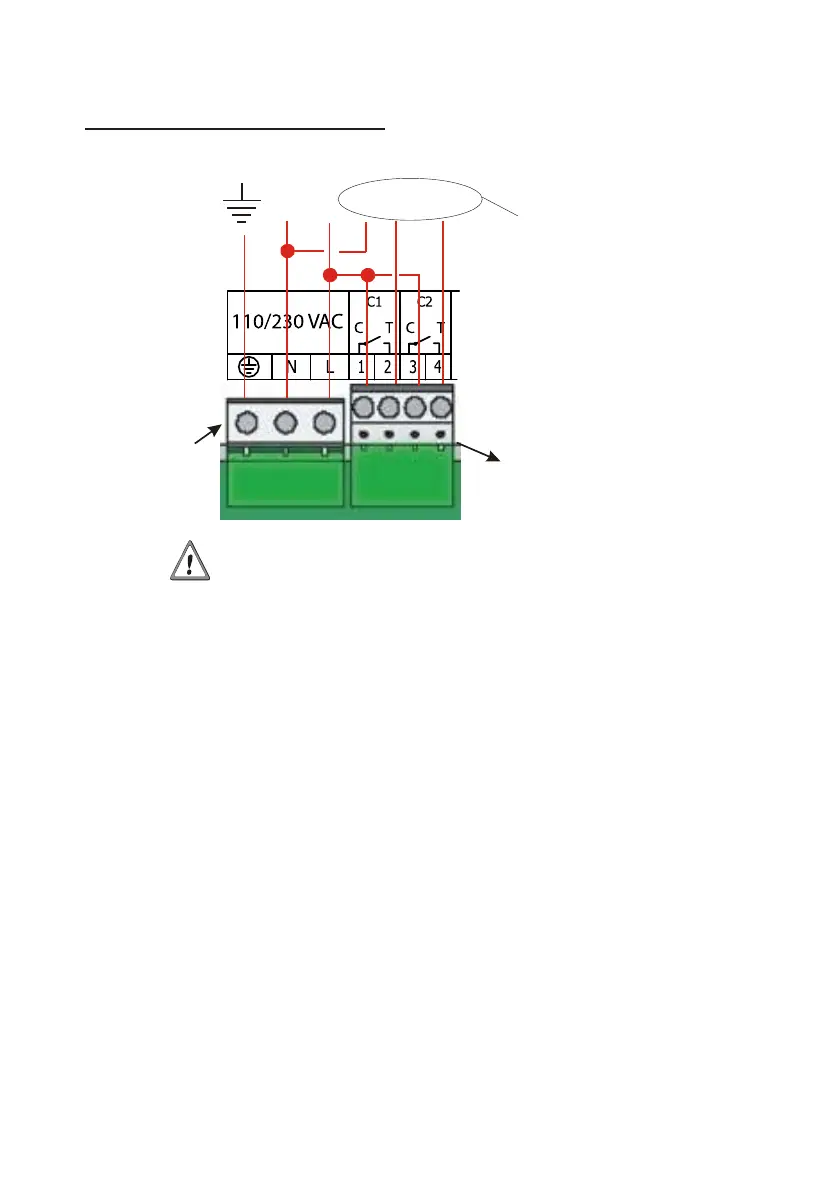

Connection for D1D2 distribution :
D1 D2 uses the relays of circuits 1 and 2
Circuits must be protected by fuse disconnector or
circuit breaker 4A maximum. Indicate on the label above the
terminal block the location of these protections.
26
L
N
N
D1
D2
To Bodet
D1D2
movement
Power supply
terminal strip
Make a shunt between terminals
1, 3 and phase, 0.75² < cross
section of wires <1.5².
